TCM Power and Ground Circuit Check
TCM
Power and Ground Circuit Check

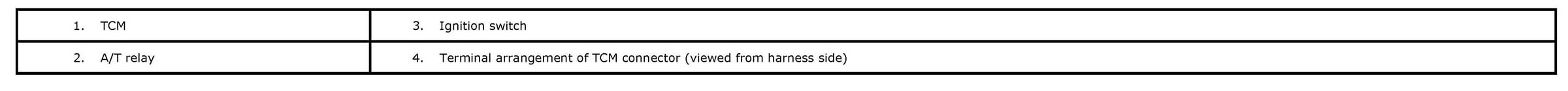

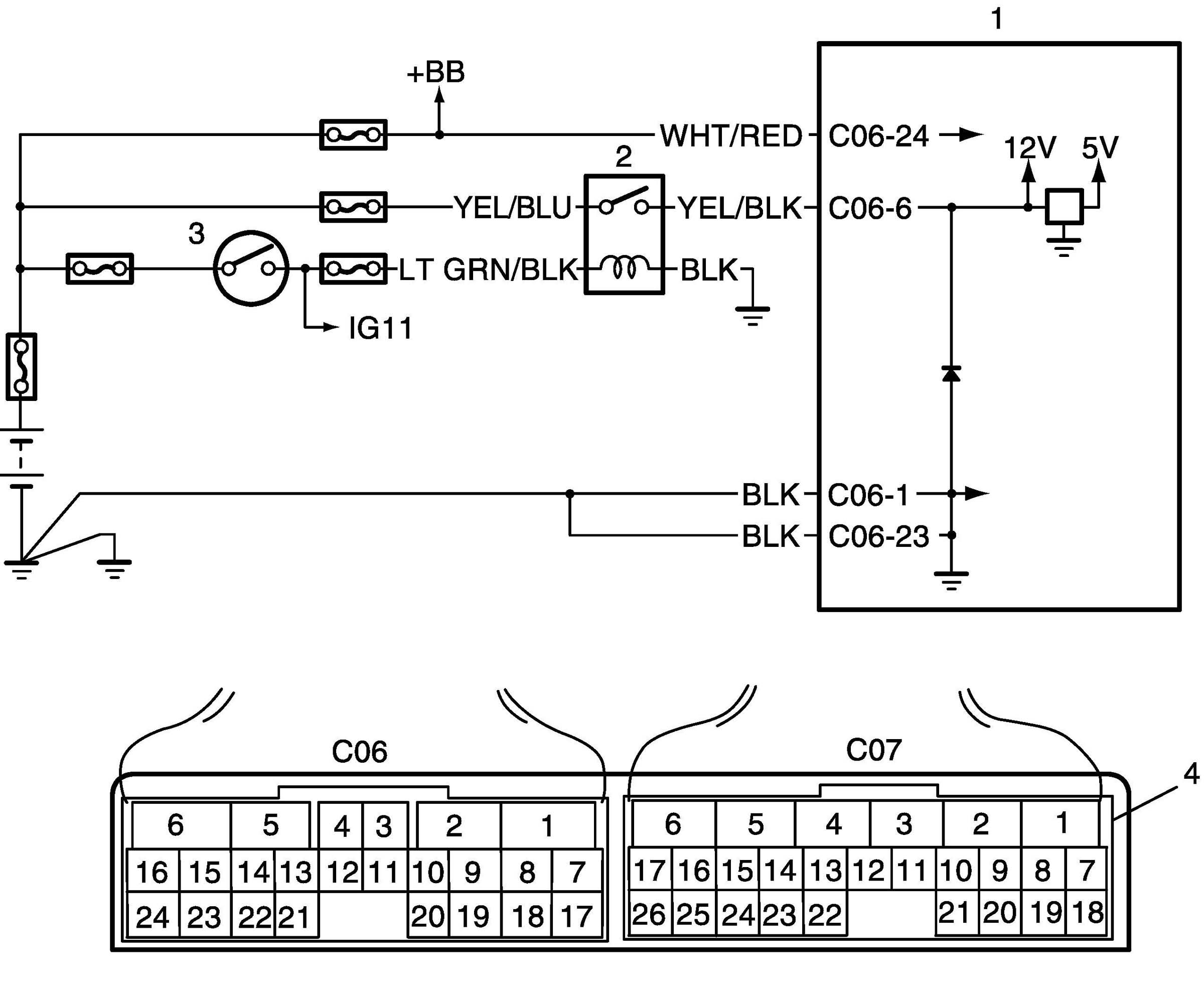

Wiring Diagram
Troubleshooting

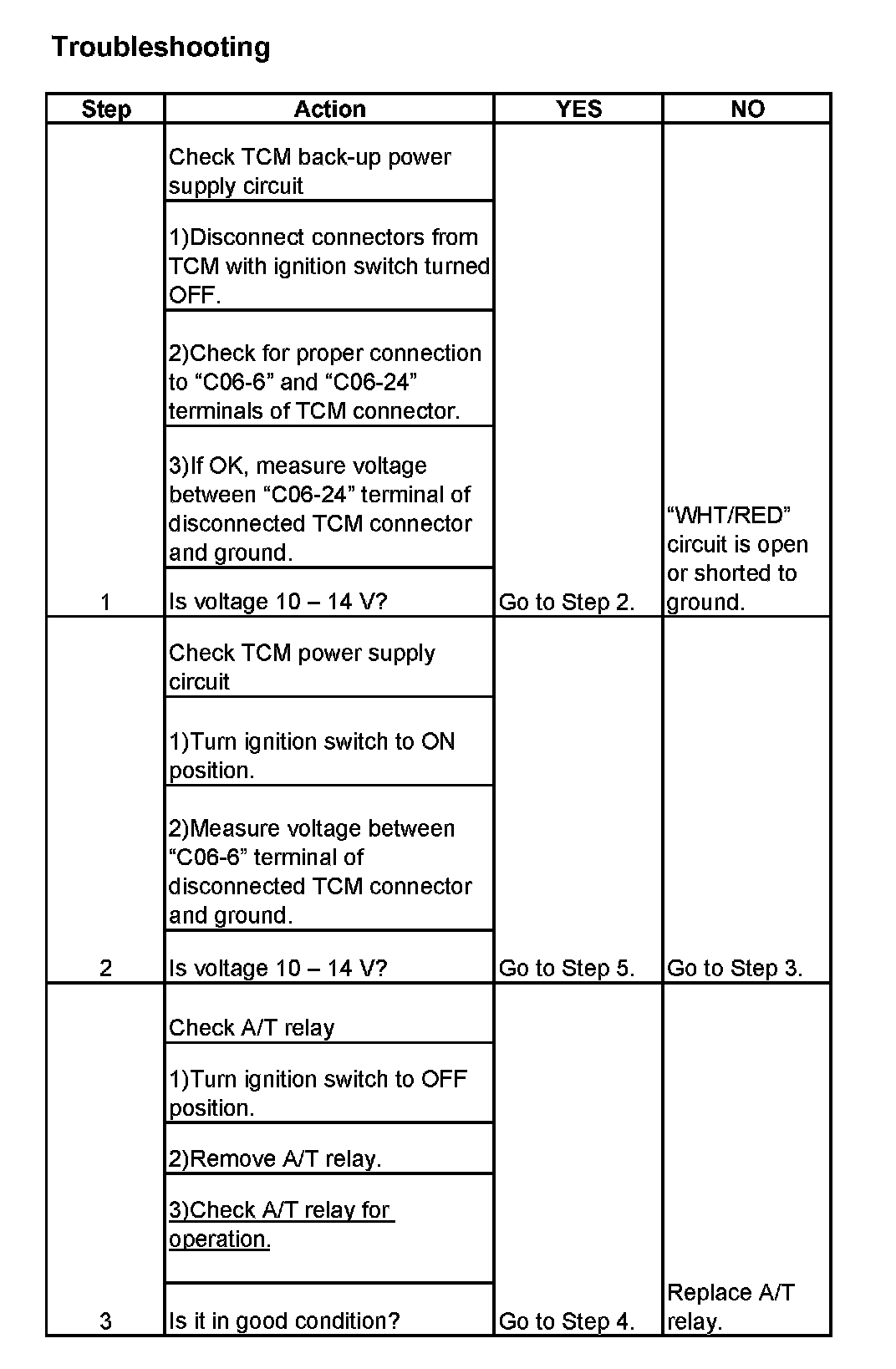

Step 1-3:

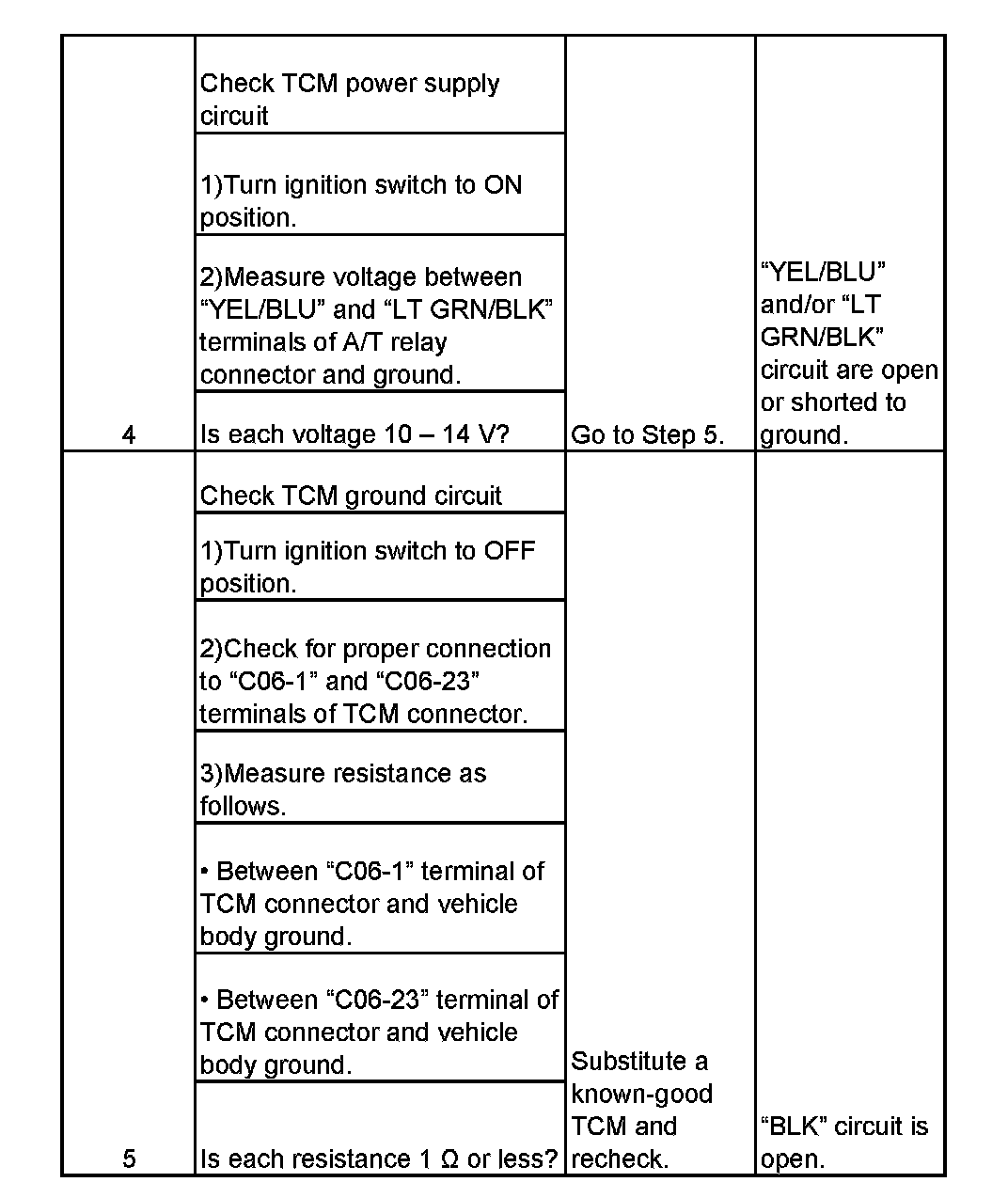

Step 4-5:
