Select Lever Knob Installation

Select Lever Knob Installation

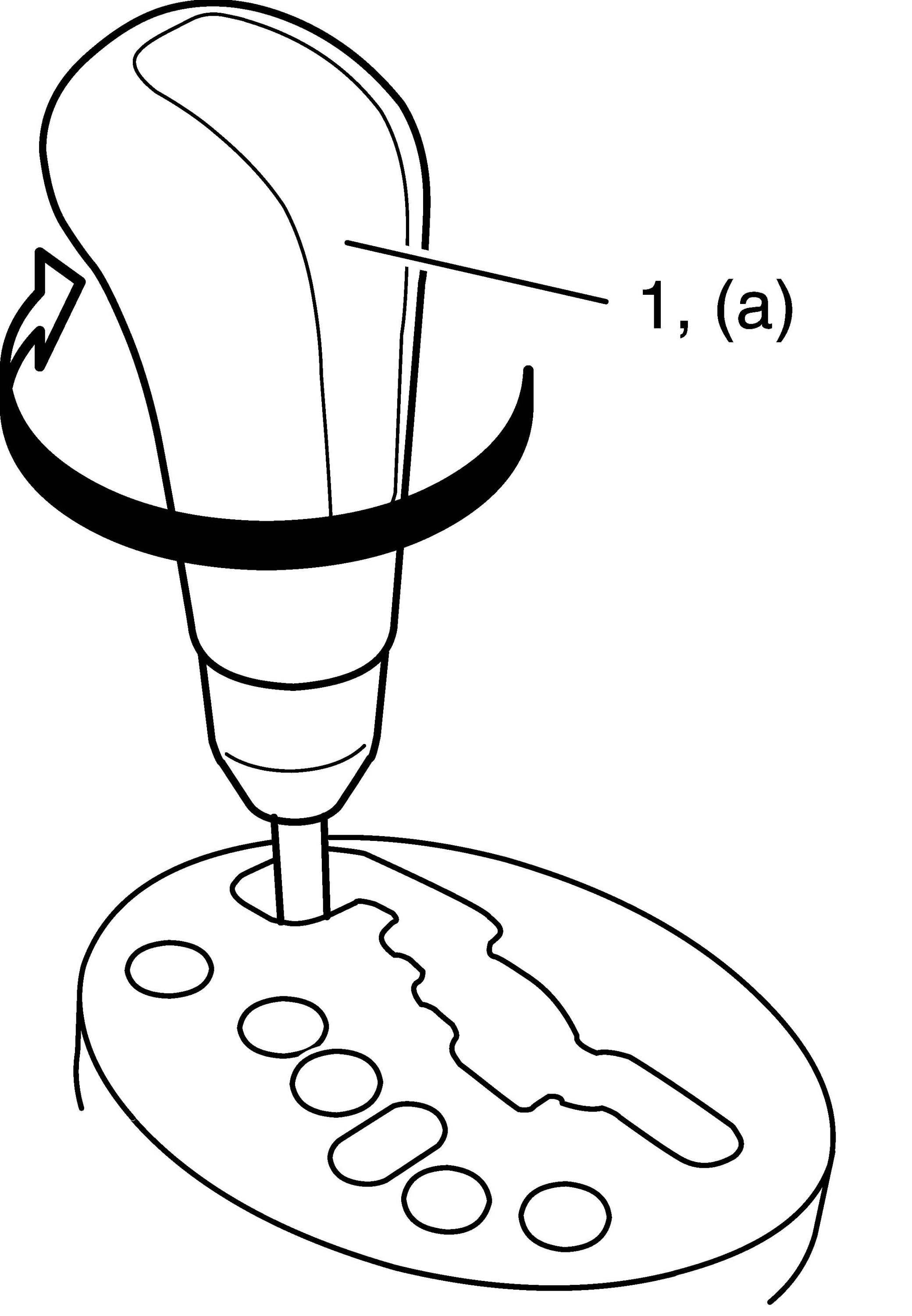

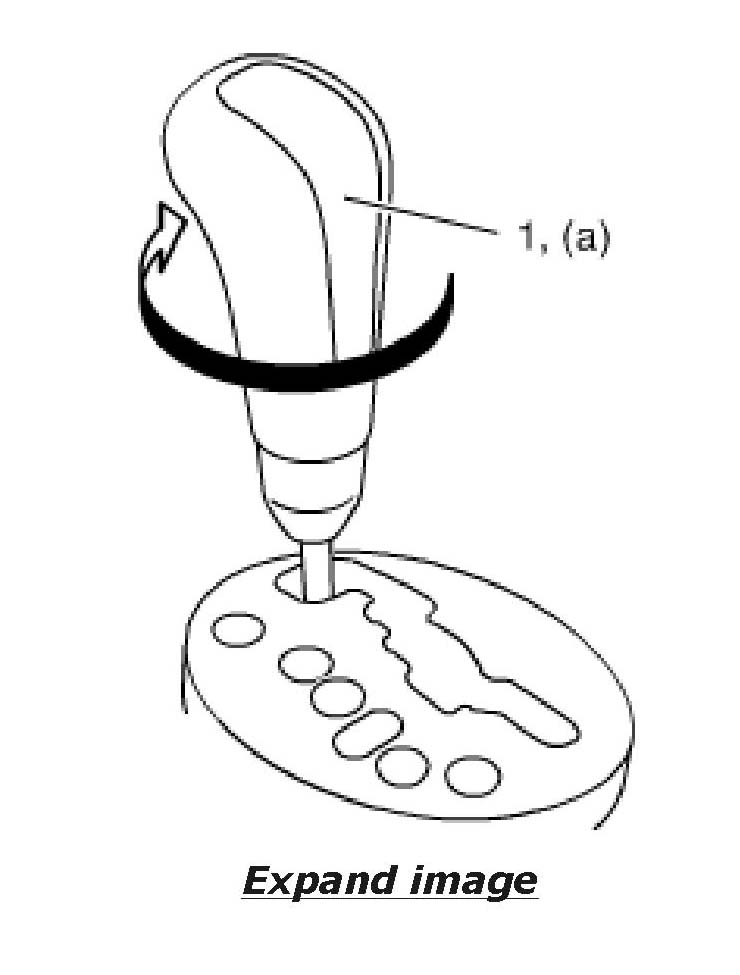

Screw select lever knob onto select lever by specified numbers of rotation below.
Rotation numbers for select lever knob installation (a): 11 - 12 rotations

CAUTION: When installing select lever knob, do not turn more than specified numbers of rotation. Otherwise select lever knob is damaged.
