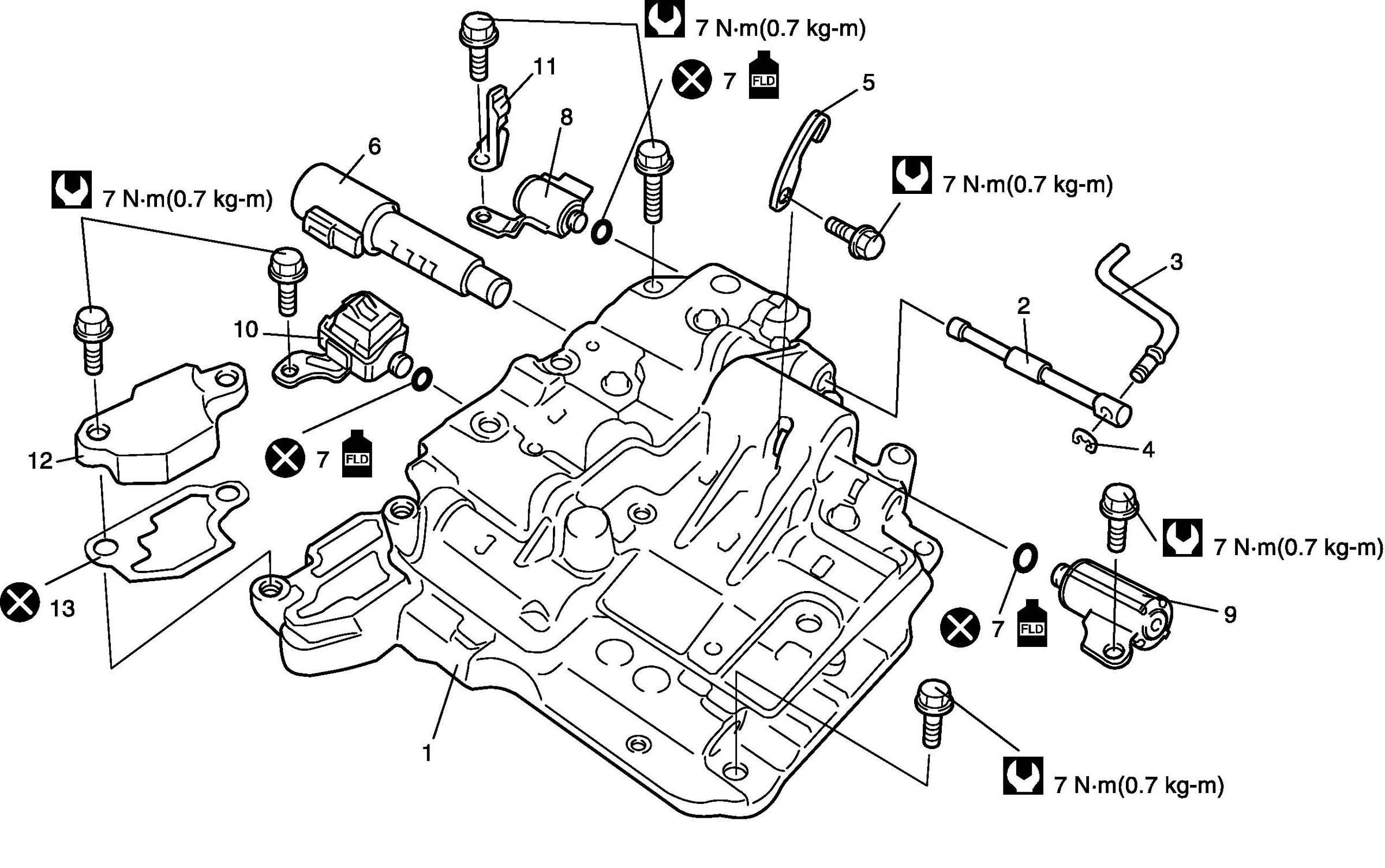

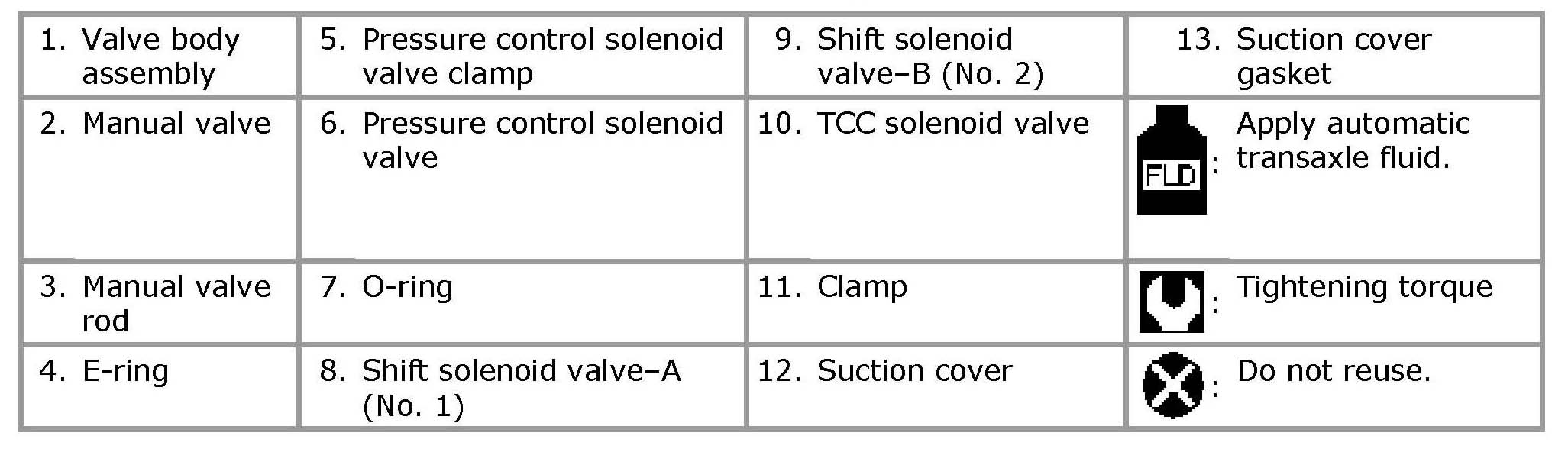

Valve Body Assembly Components

Valve Body Assembly Components








CAUTION: When replacing pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set.
