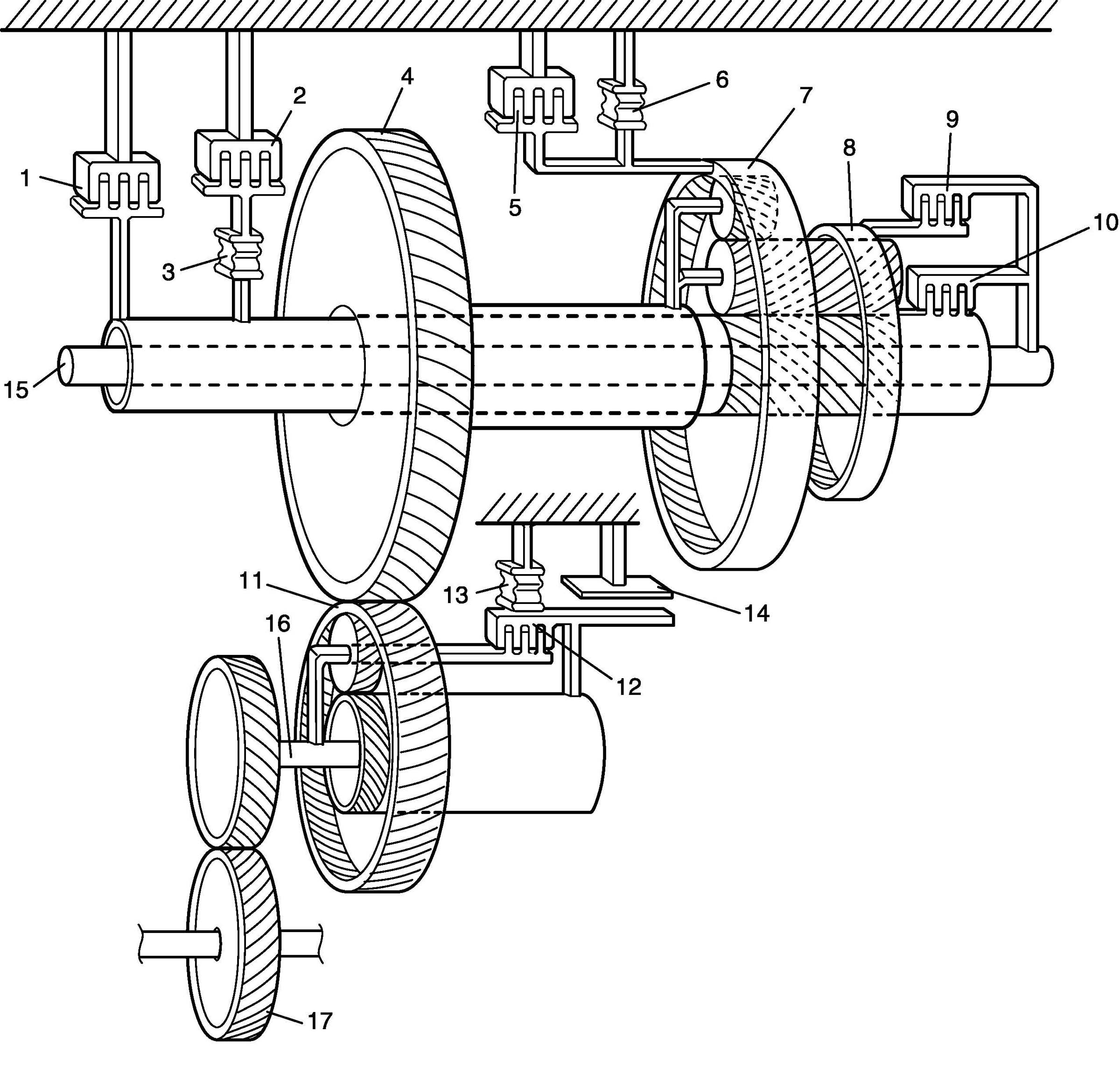

Clutch / Brake / Planetary Gear Function of Automatic Transaxle
Clutch / Brake / Planetary Gear Function of Automatic Transaxle

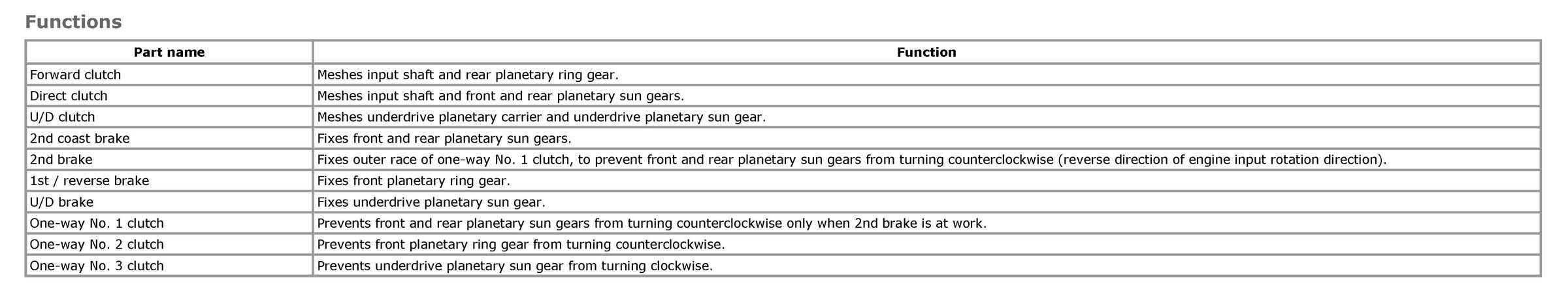

Functions

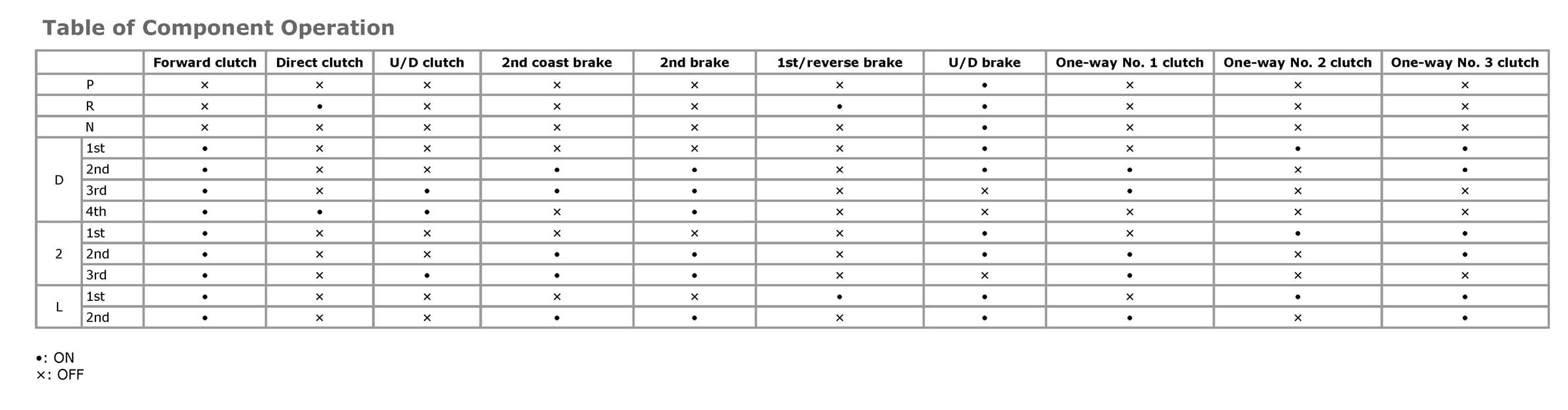

Table of Component Operation
