TCM

CAN Communication System Description

TCM communicates control data with each control module as follows.

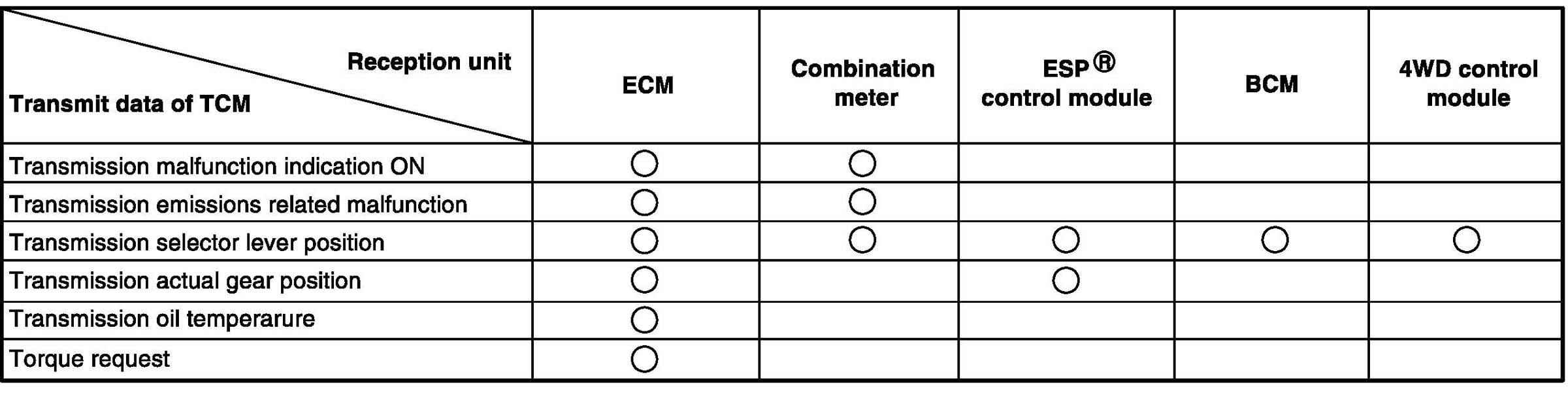

TCM Transmission Data

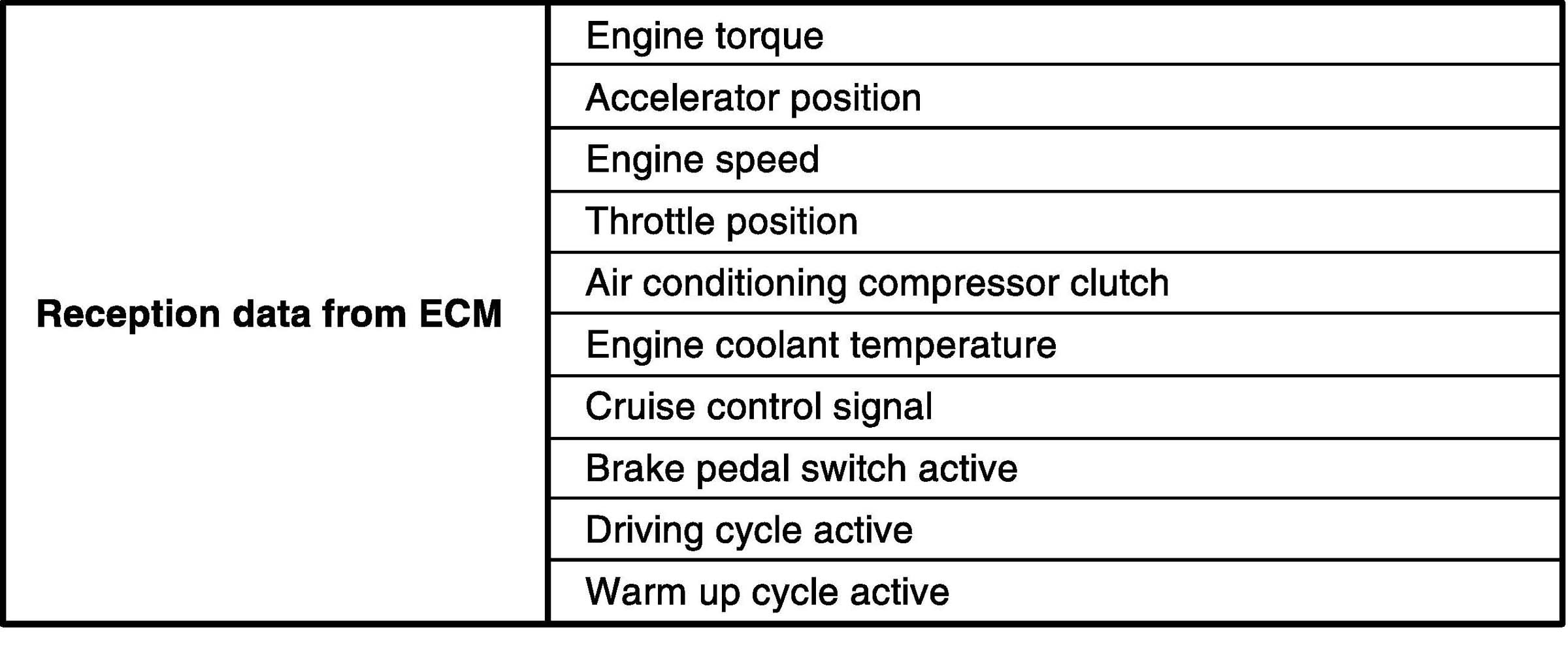

TCM Reception Data

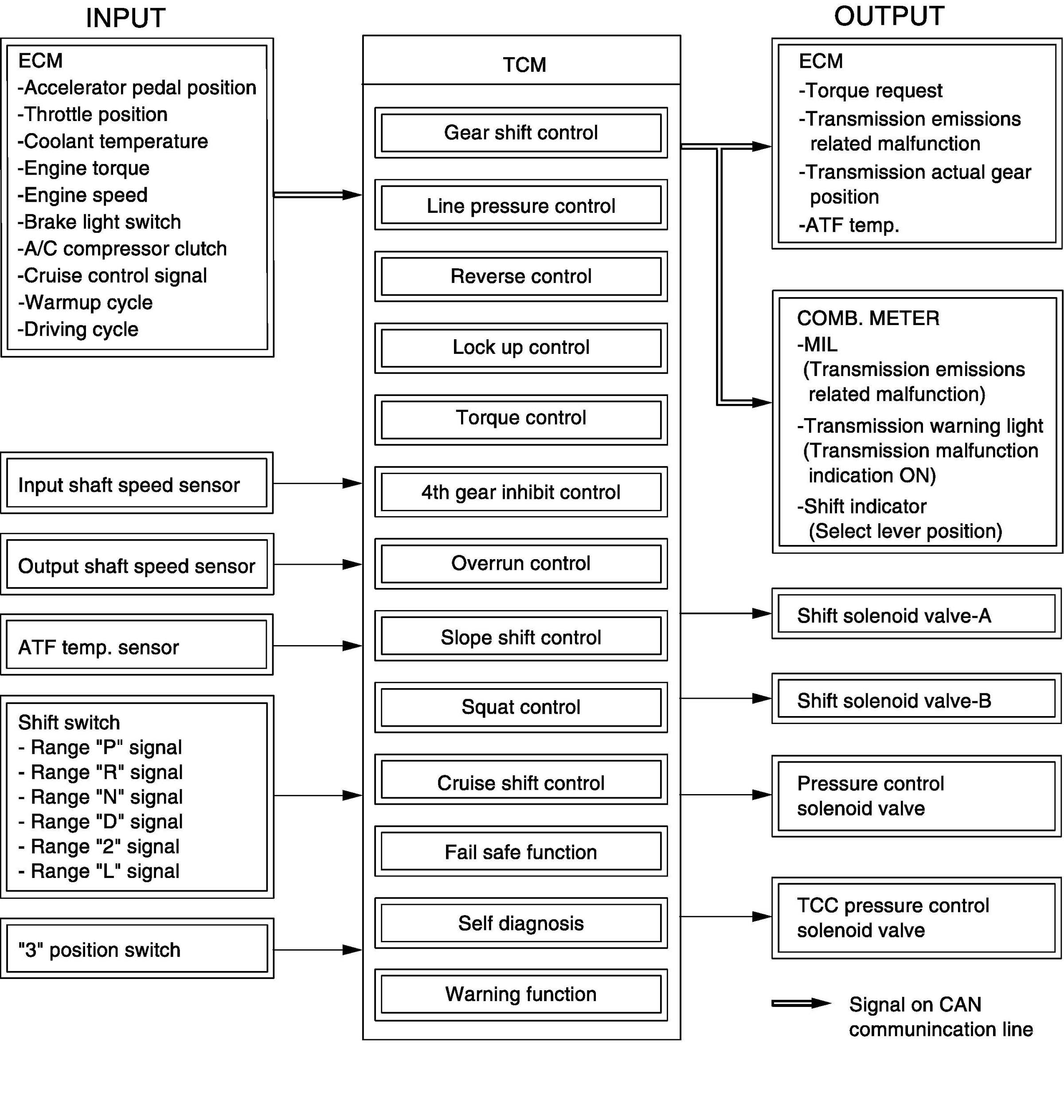

Electronic Shift Control Input / Output Table
