Engine - Tappet Shim Thickness Changes
SX4Section Title: Engine
TSB No. TS 02 07067
Division: Automotive
Category: Technical
SUBJECT:
SERVICE MANUAL UPDATE: TAPPET SHIM THICKNESS CHANGES AND AVAILABILITY
MODEL(S):
SX4 (RW420)
YEAR:
2007
CONDITION:
New shims with a pitch of 0.020mm (0.00079 in.) have been added to improve accuracy of valve clearance adjustment see Table 1. The old shims with a pitch of 0.025mm (0.00098 in.) will be phased out except for shims found on Table 2.
CAUSE:
More precise valve clearance adjustment.
"? :
CORRECTION:

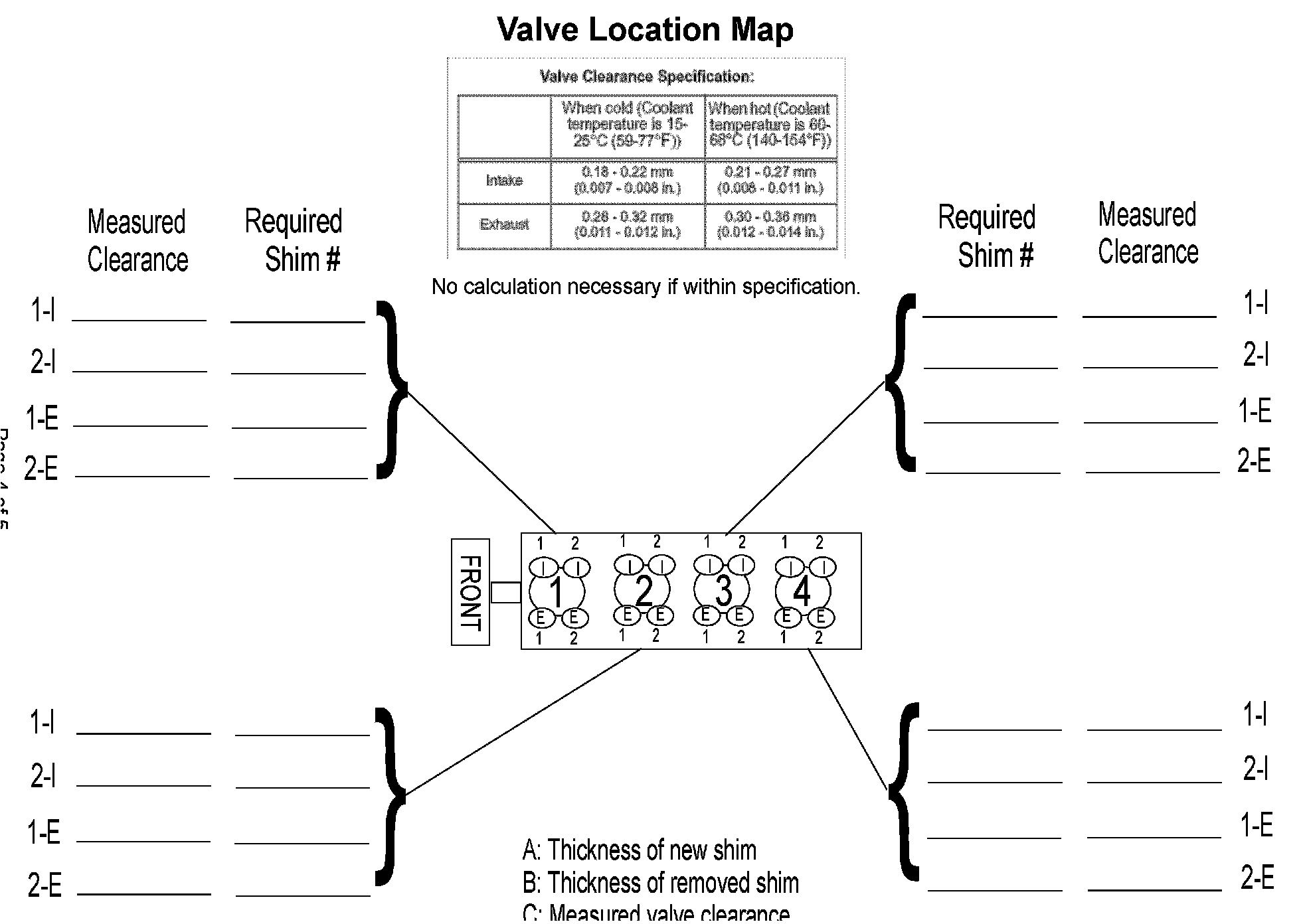

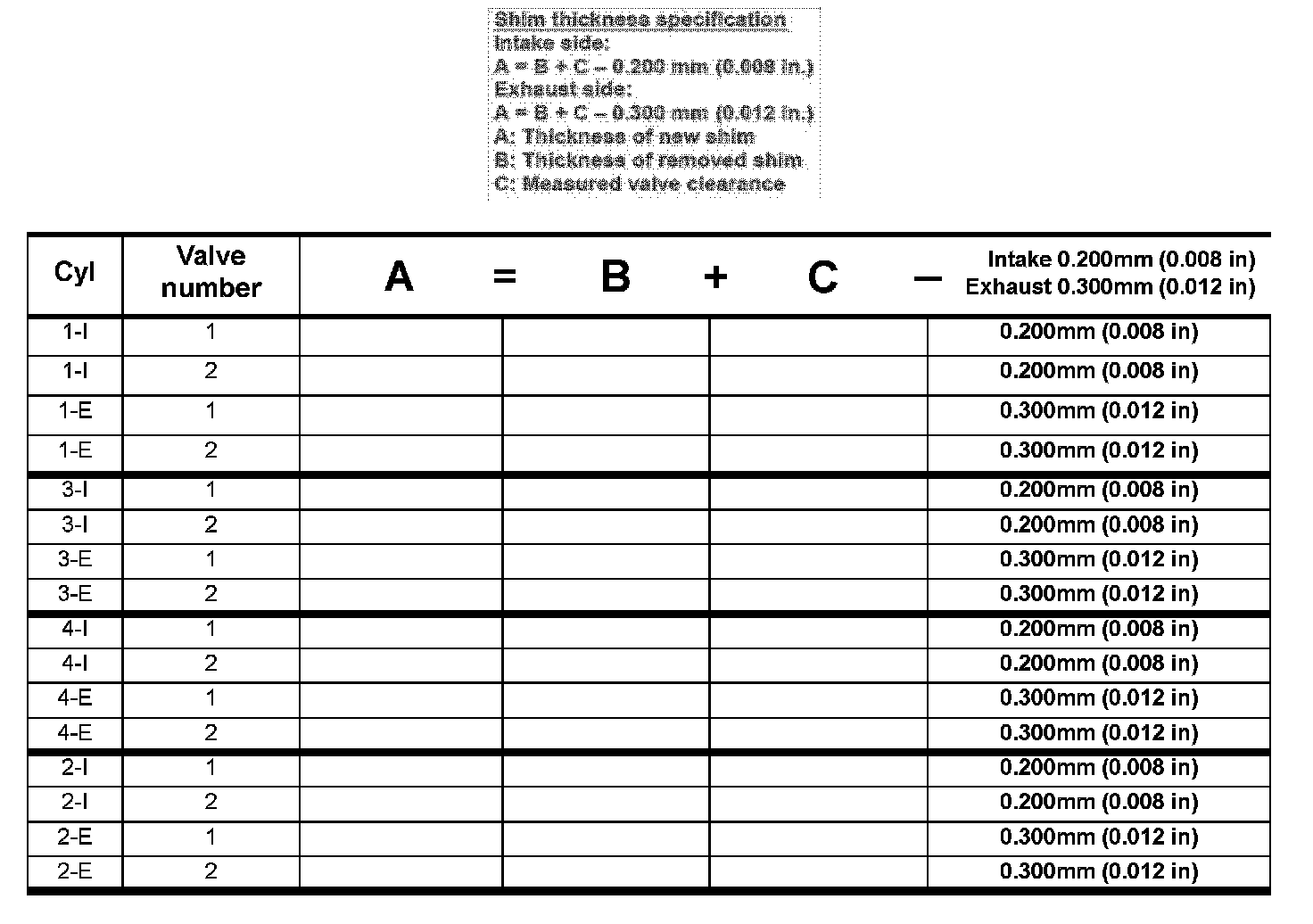

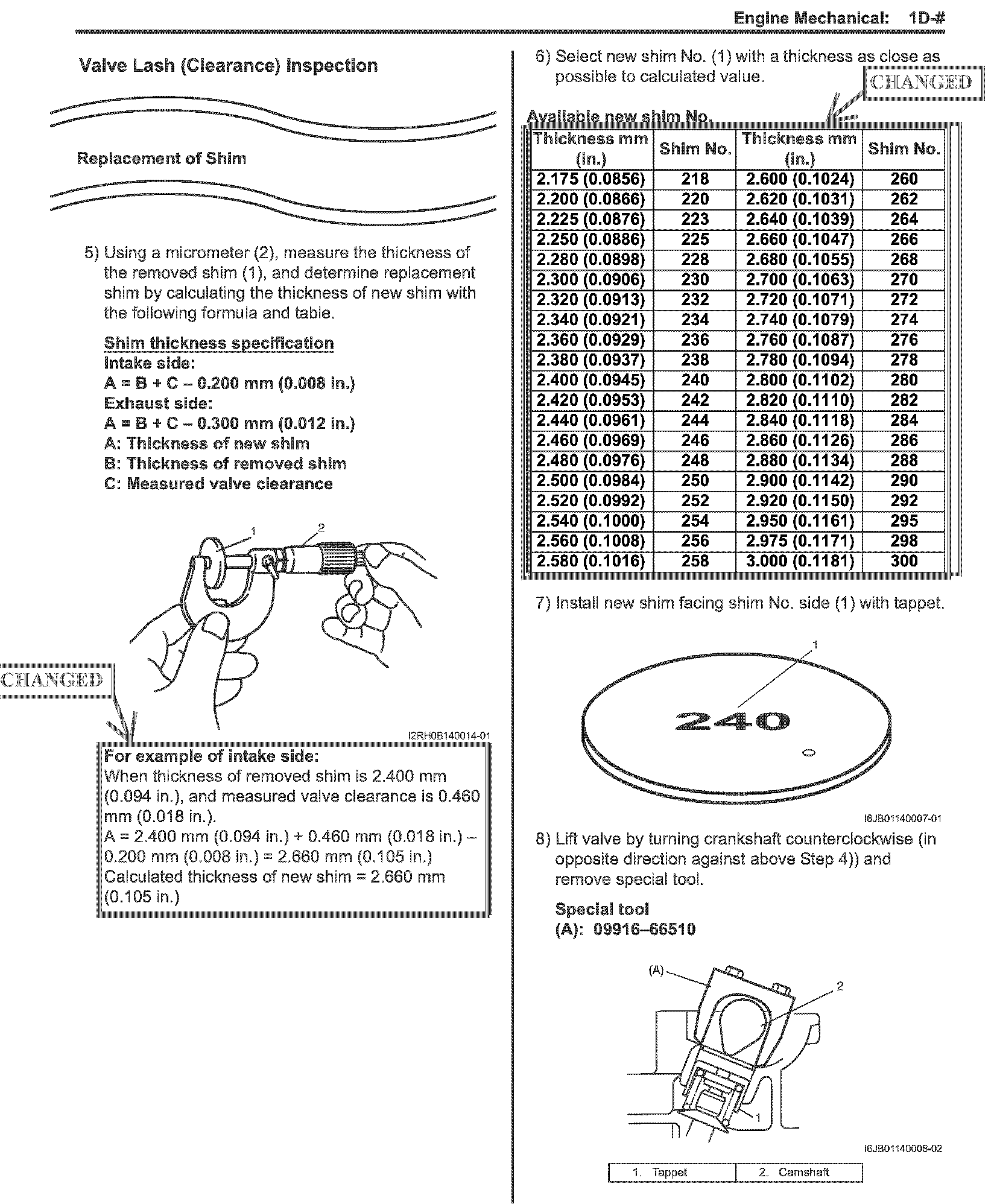

Please refer to the tables and attached service manual page when adjusting the valve clearance. Also attached are handy charts for recording and calculating valve clearances.
AFFECTED SERVICE MANUALS:
PART SUPPLY DATA

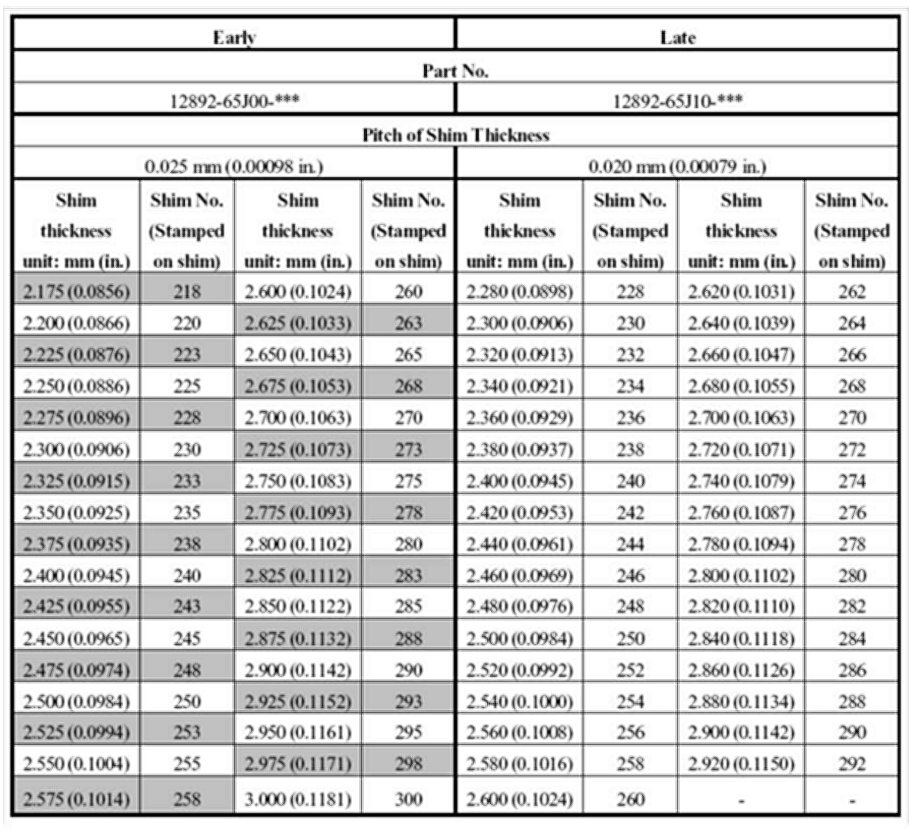

Table 1

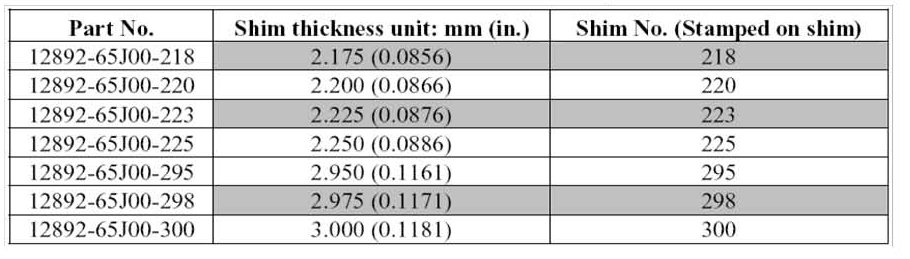

Table 2
Shims to remain available from "Early" list
