Steering Rack Boot Check

Steering Rack Boot Check

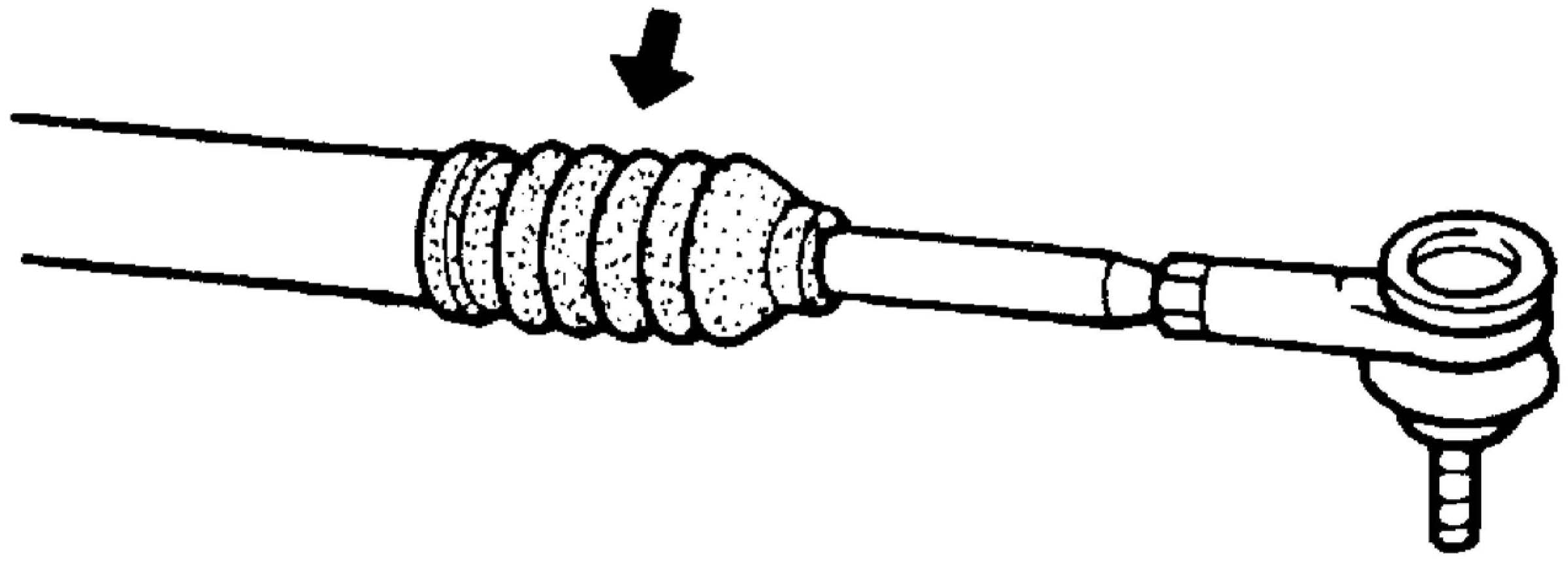

^ Check boot for crack and damage which, if any, means possibility of rusty gear, entry of dust or lack of grease. Also, check if any of such faulty conditions exists.

^ Check steering rack boot for dent or breakage.
If there is a dent, keep boot in most compressed state for some seconds to connect dent.
