Variable Induction Control Actuator: Service and Repair

IMT Valve Actuator Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Disconnect IMT valve actuator connector.

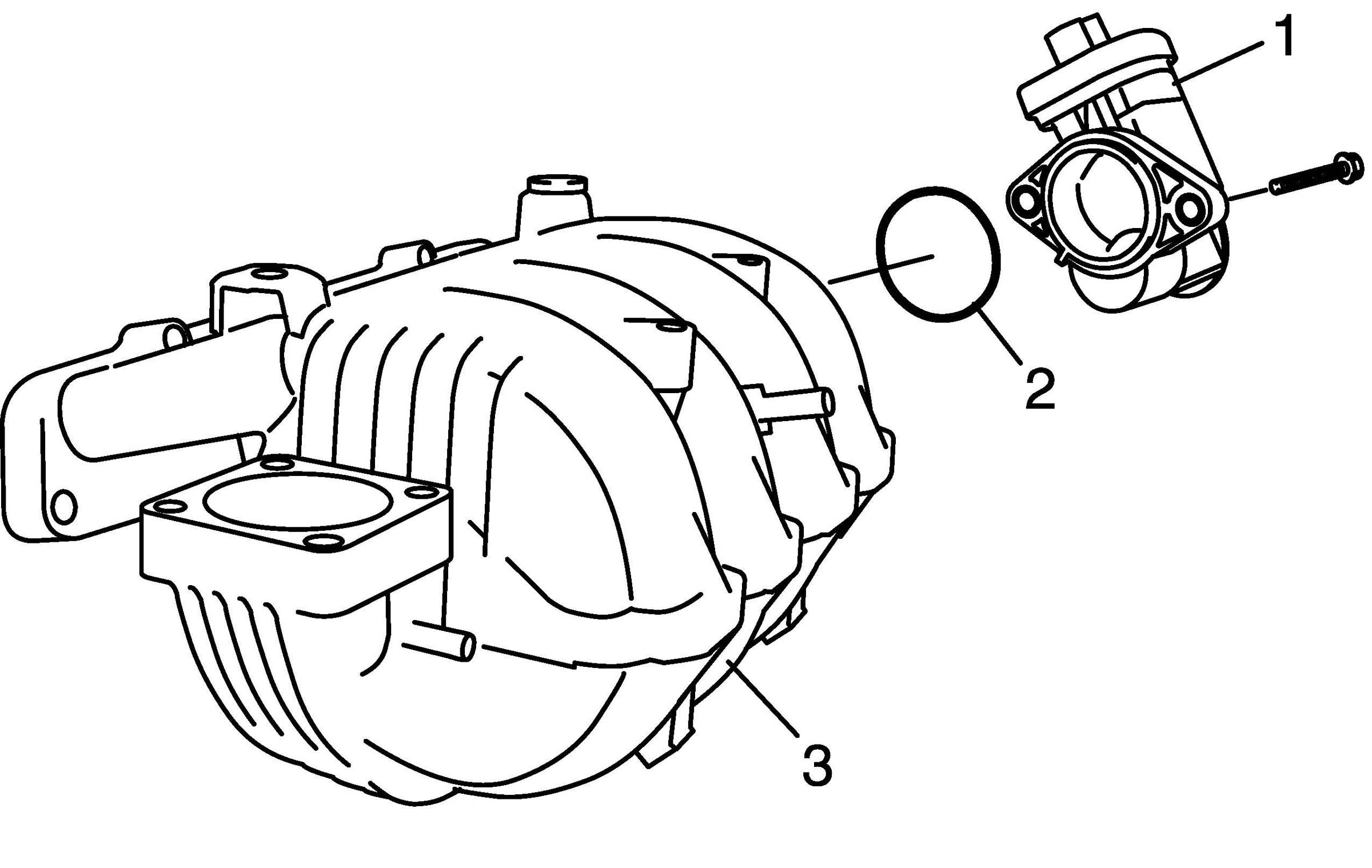

3. Remove IMT valve actuator (1) and O-ring (2) from intake manifold (3).





Installation
Reverse removal procedure noting the followings.

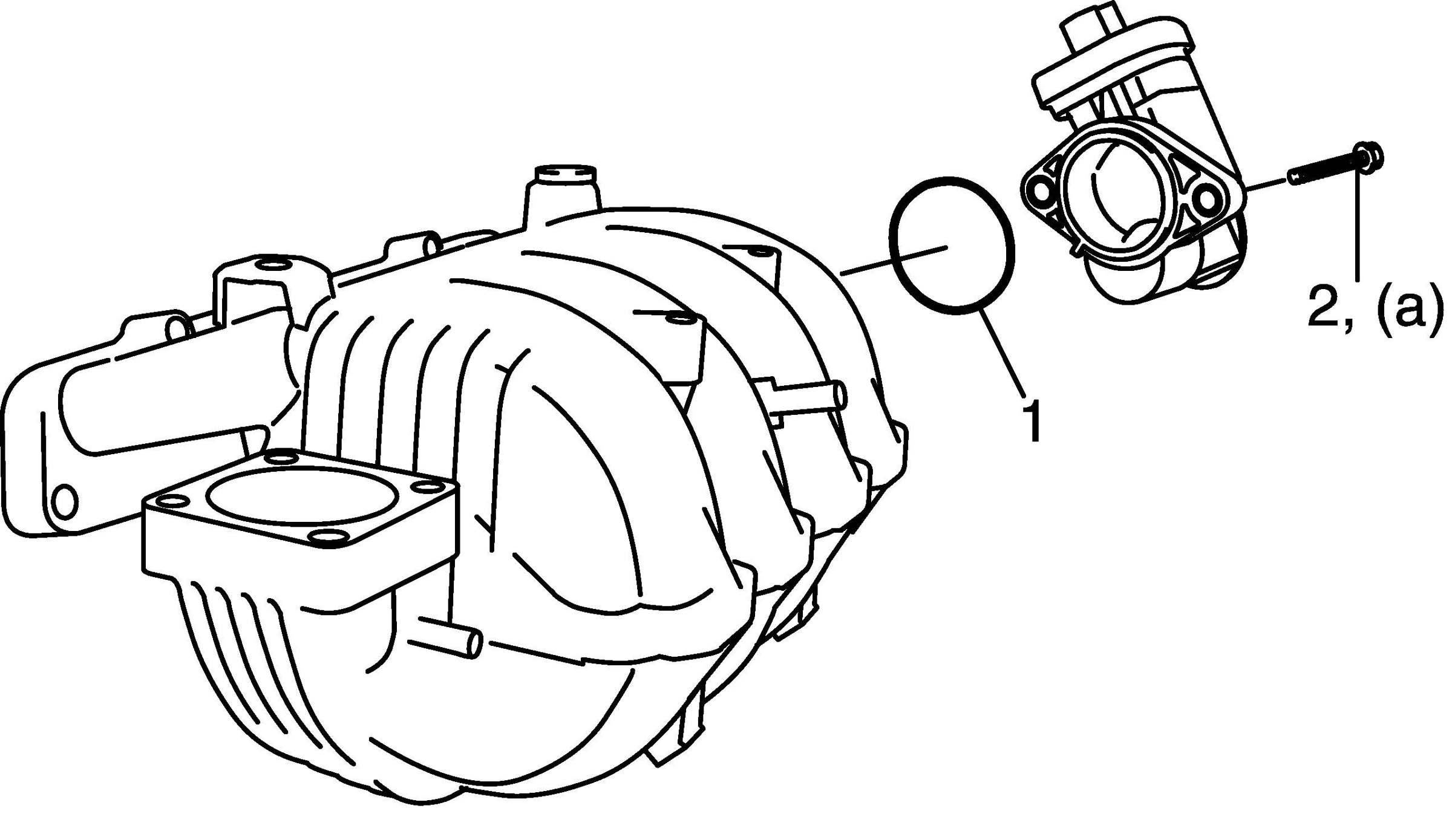

^ Use new O-ring (1).
^ Tighten IMT valve actuator bolt (2) to specified torque.

Tightening torque
IMT valve actuator bolt a: 6 Nm (0.6 kgf-m, 4.5 ft. lbs.)
