Leak Detector: Service and Repair
EVAP Leak Check Module Removal and InstallationRemoval
1. Remove EVAP canister with EVAP leak check module referring to EVAP Canister Removal and Installation.

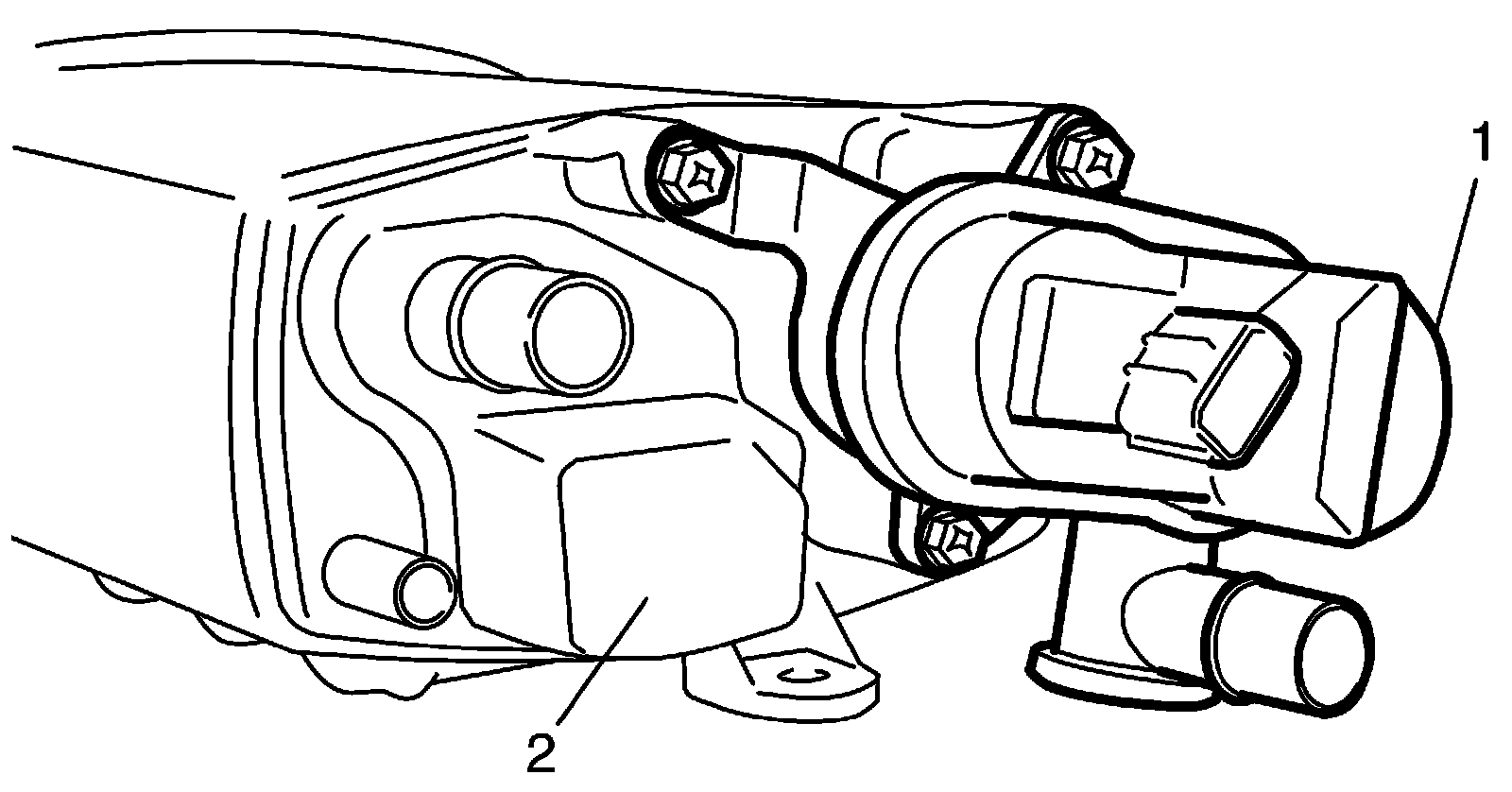

2. Remove EVAP leak check module (1) from EVAP canister (2).
Installation
For installation, reverse removal procedure noting the following.
^ Apply gasoline to O-ring of EVAP leak check module.
^ Install EVAP canister with EVAP leak check module referring to EVAP Canister Removal and Installation.
