S Connectors

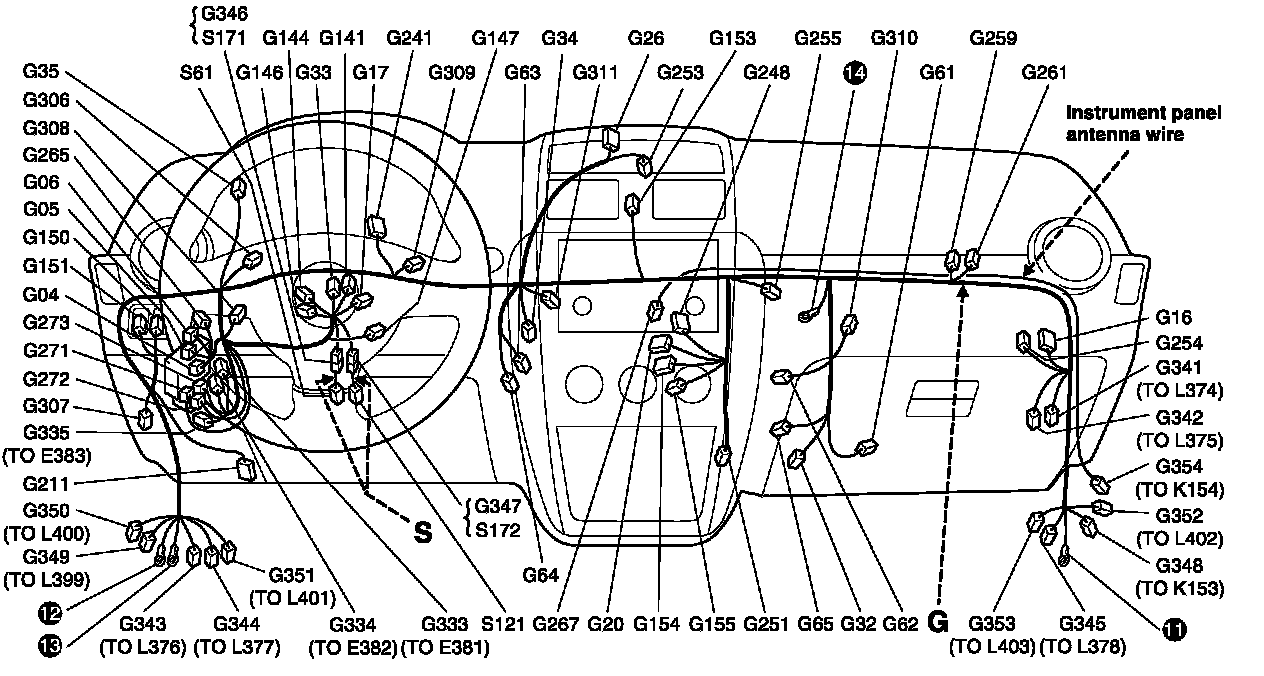

G: Instrument Panel Harness, Instrument Panel Antenna Wire / S: Connect Coil View:
S: Connector Coil Index:
