Combination Switch: Service and Repair

HEADLIGHT SWITCH (IN LIGHTING SWITCH) REMOVAL AND INSTALLATION

Removal
1. Disconnect negative (-) cable at battery.

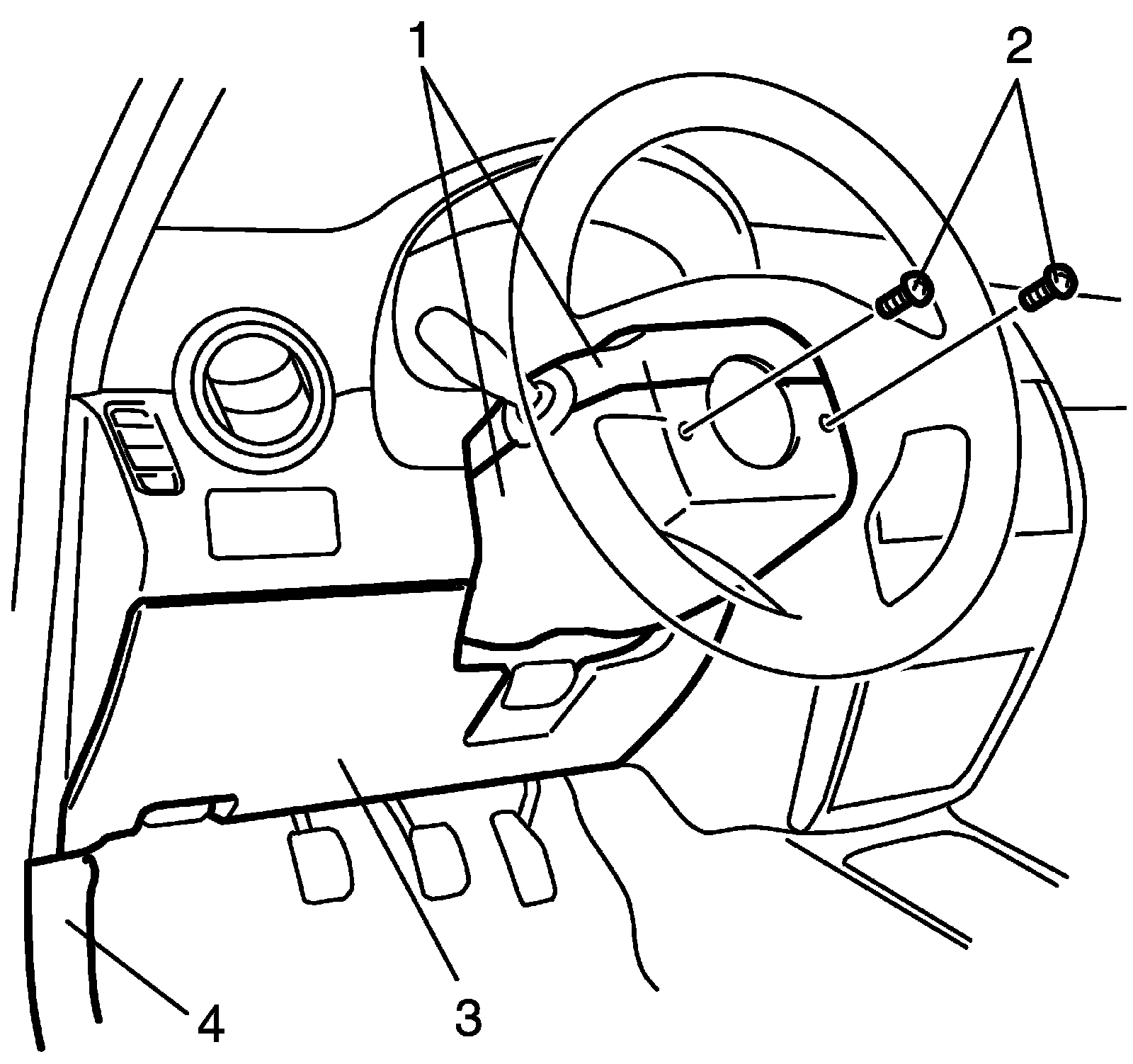

2. Remove dash side trim (4) and steering column hole cover (3).
3. Remove steering column covers (1).
Turn steering wheel to access steering column cover screws (2).

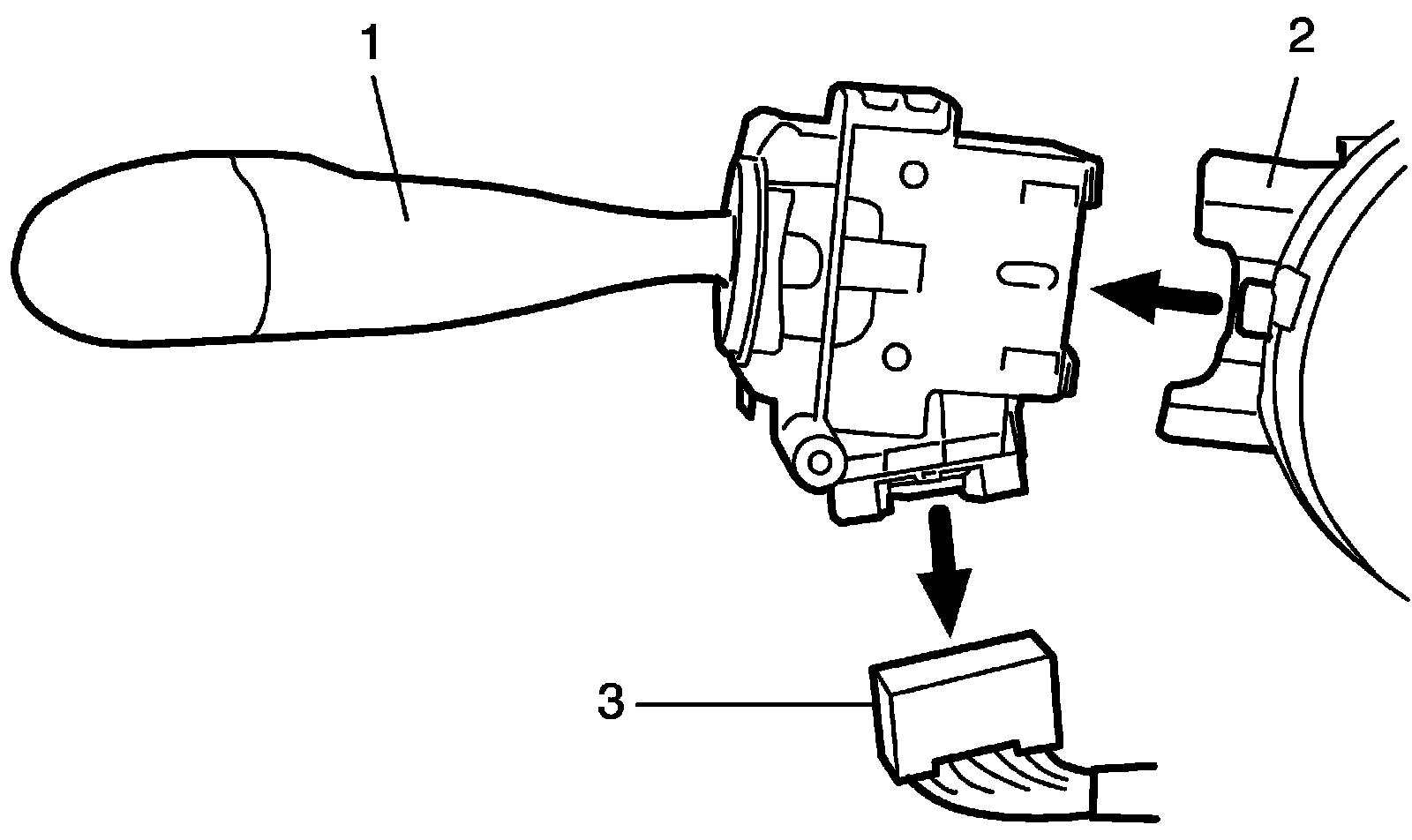

4. Remove lighting switch (1) from combination switch assembly (2) and disconnect its coupler (3).





Installation
Reference: Headlight Switch (in Lighting Switch) Inspection
Reverse removal procedure for installation.
