Hazard Warning Switch: Service and Repair

HAZARD WARNING SWITCH REMOVAL AND INSTALLATION

Removal
1. Disconnect negative (-) cable at battery.

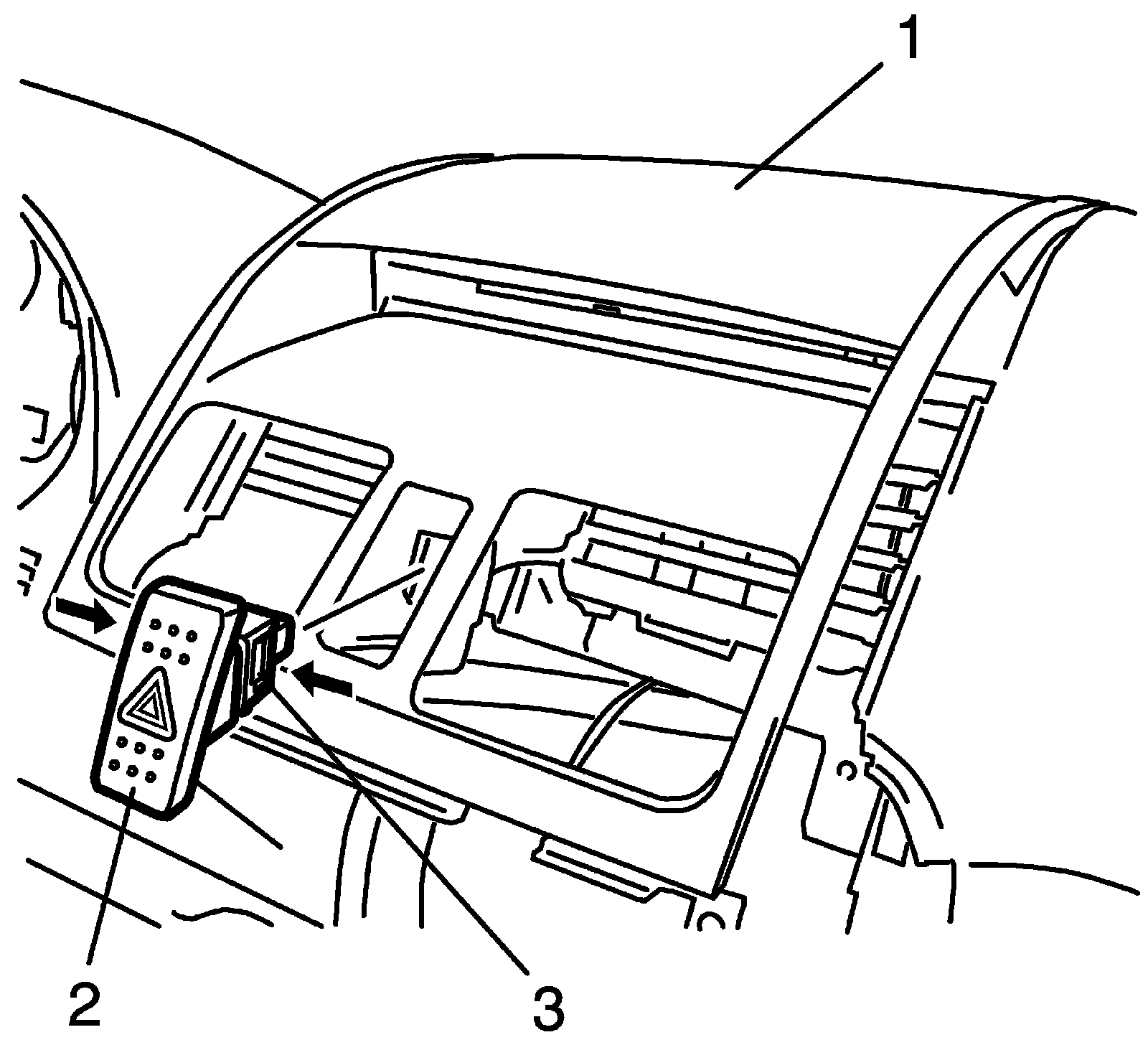

2. Remove center ventilation louver (1) referring to Center Ventilation Louver Removal and Installation.
3. Disconnect coupler, and then remove hazard warning switch (2) from center ventilation louver (1) while releasing the locks (3).





Installation
Reference: Hazard Warning Switch Inspection
Reverse removal procedure for installation.
