1ST Timing Chain and Chain Tensioner Inspection

1st Timing Chain and Chain Tensioner Inspection

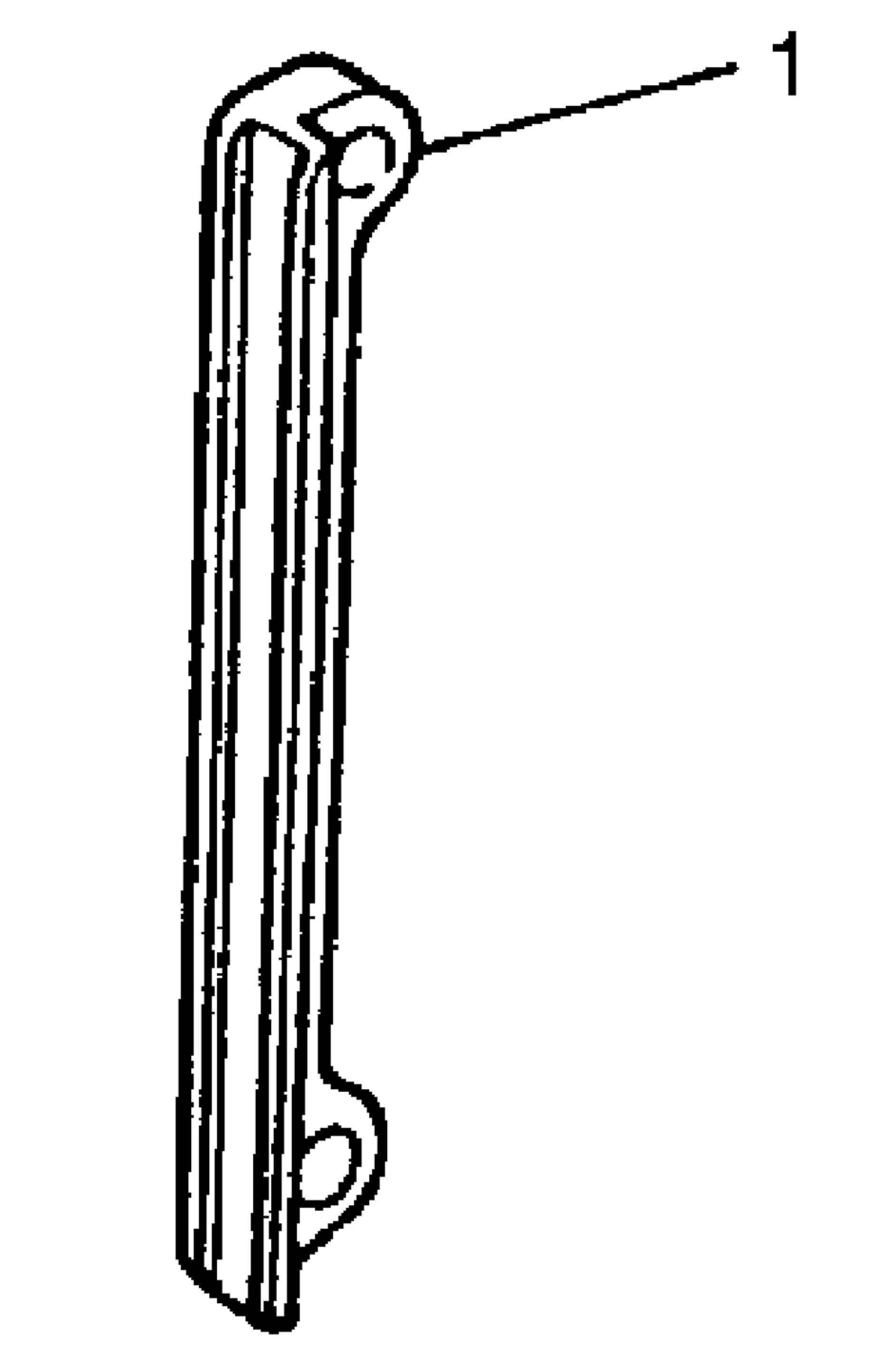

Timing Chain Guide No.1
Check shoe for wear or damage.

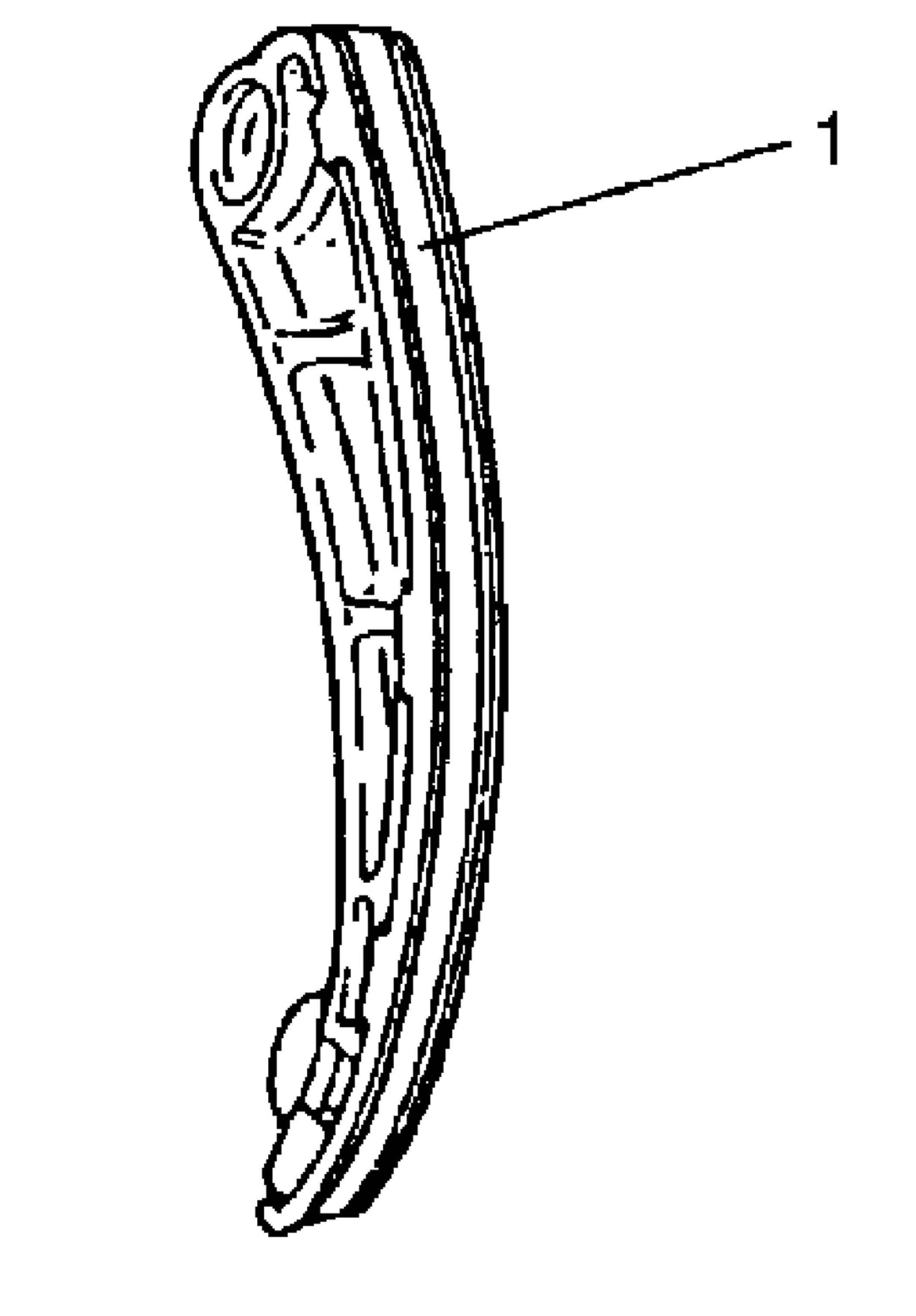

Timing Chain Tensioner
Check shoe (1) for wear or damage.

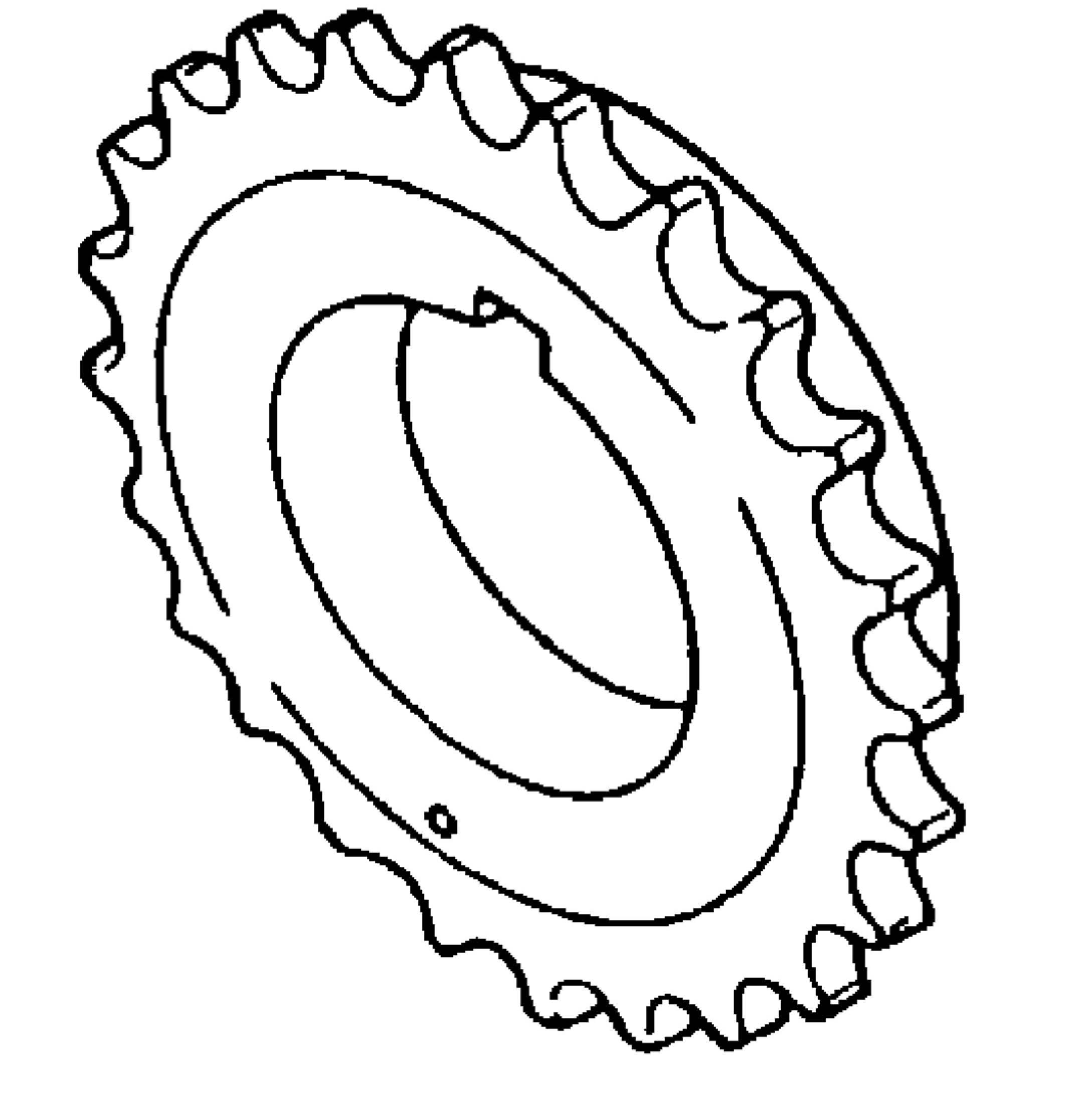

Crankshaft Timing Sprocket
Check teeth of sprocket for wear or damage.

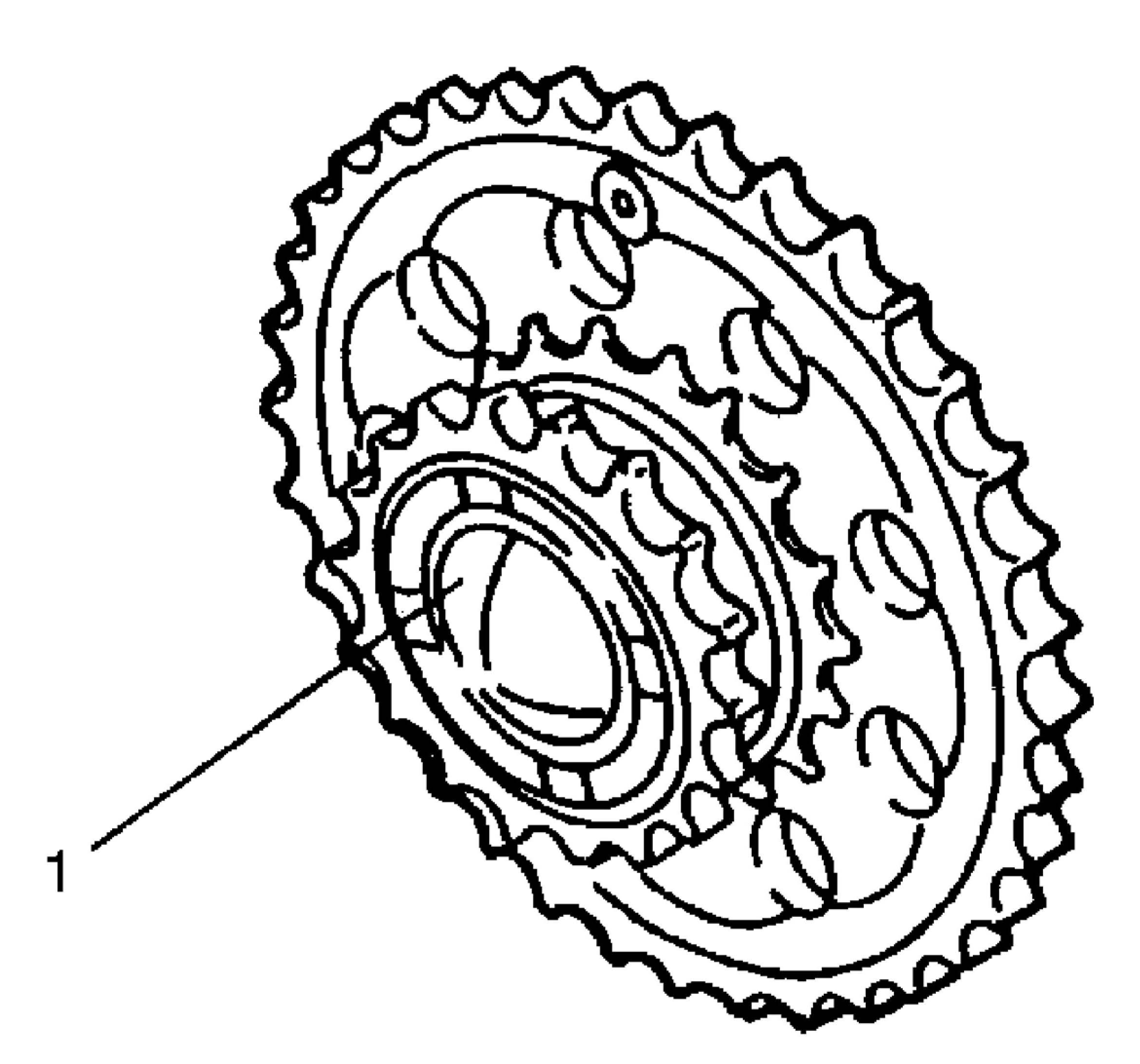

Idler Sprocket
Check teeth and bush (1) of sprocket for wear or damage.

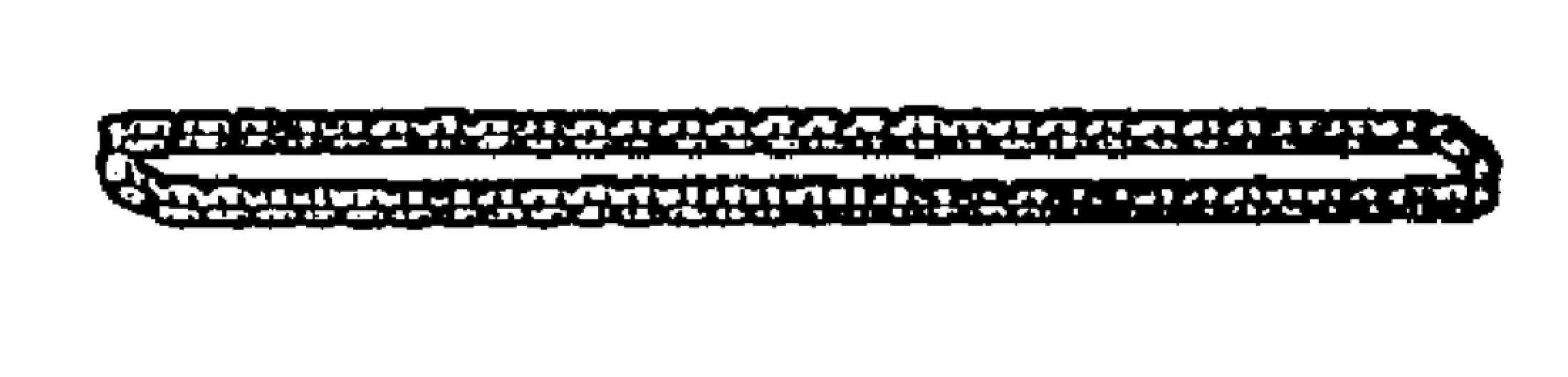

1st Timing Chain
Check timing chain for wear or damage.

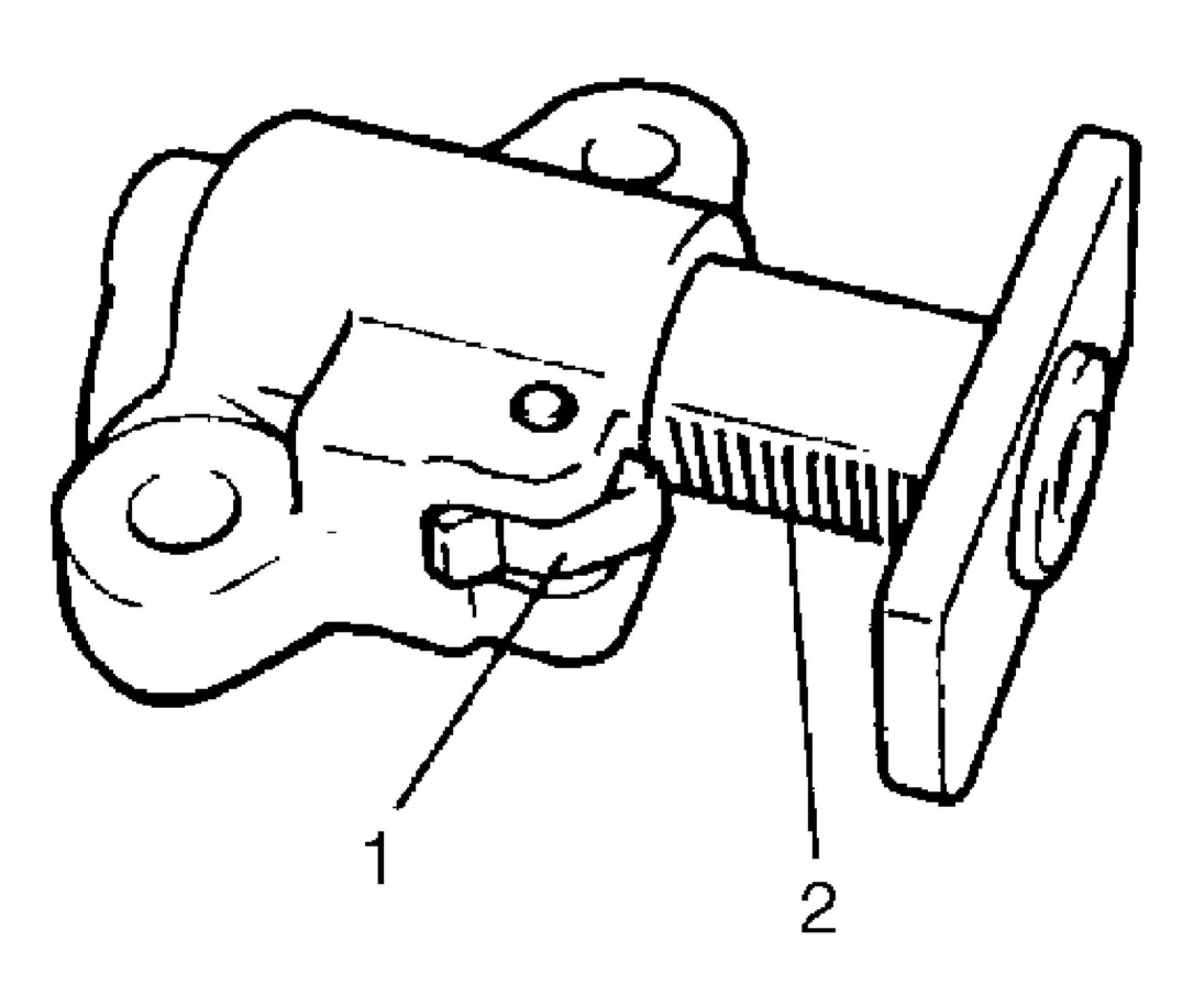

Timing Chain Tensioner Adjuster No.1
Check that latch (1) and tooth surface (2) are free from damage and latch functions properly.
