Overhaul

Radiator Cooling Fan Disassembly and Reassembly

Disassembly

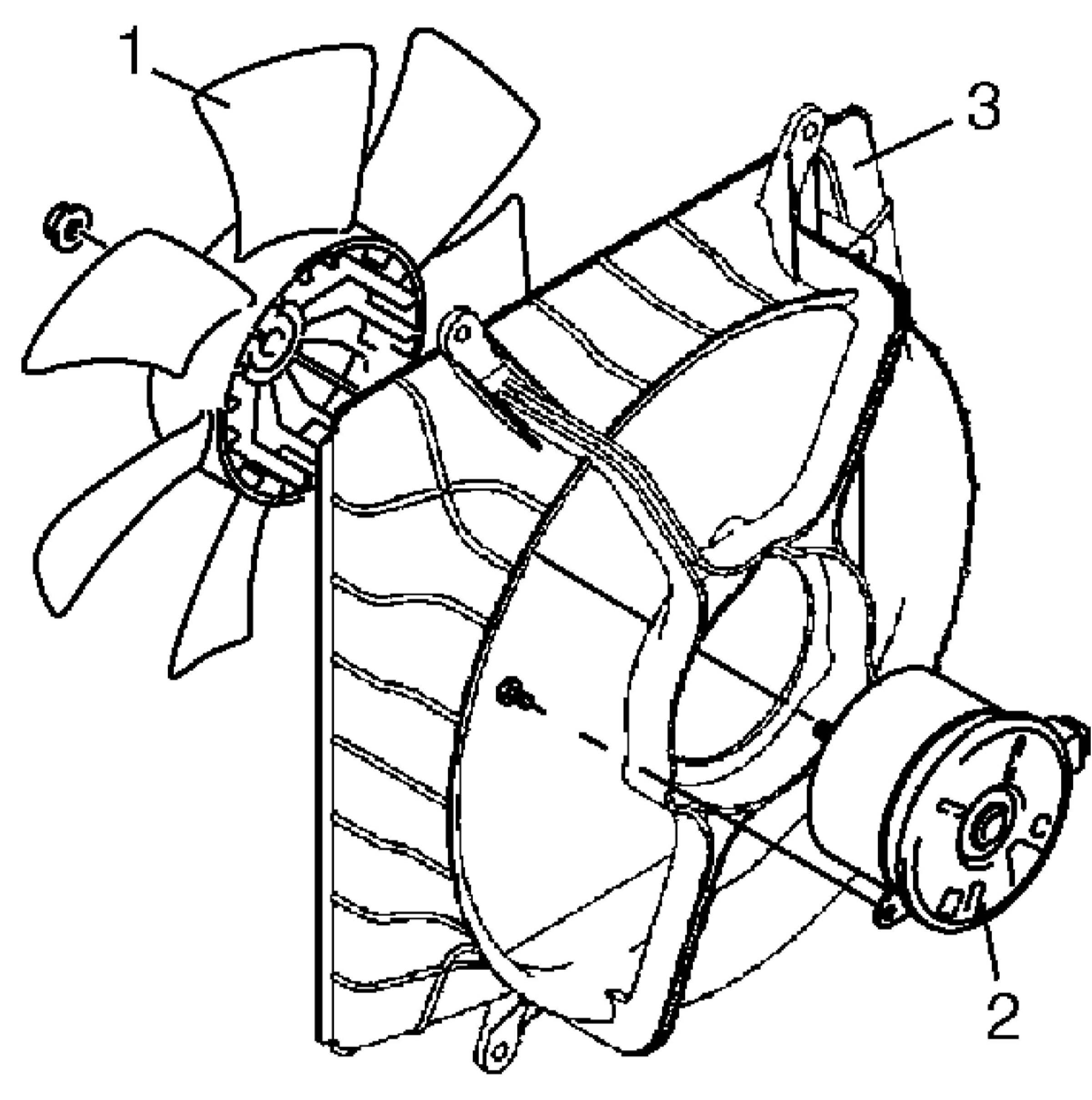

1. Remove fan (1) from cooling fan motor (2).
2. Remove fan motor (2) from cooling fan guide (3).





Reassembly
Reverse disassembly procedures for reassembly.
