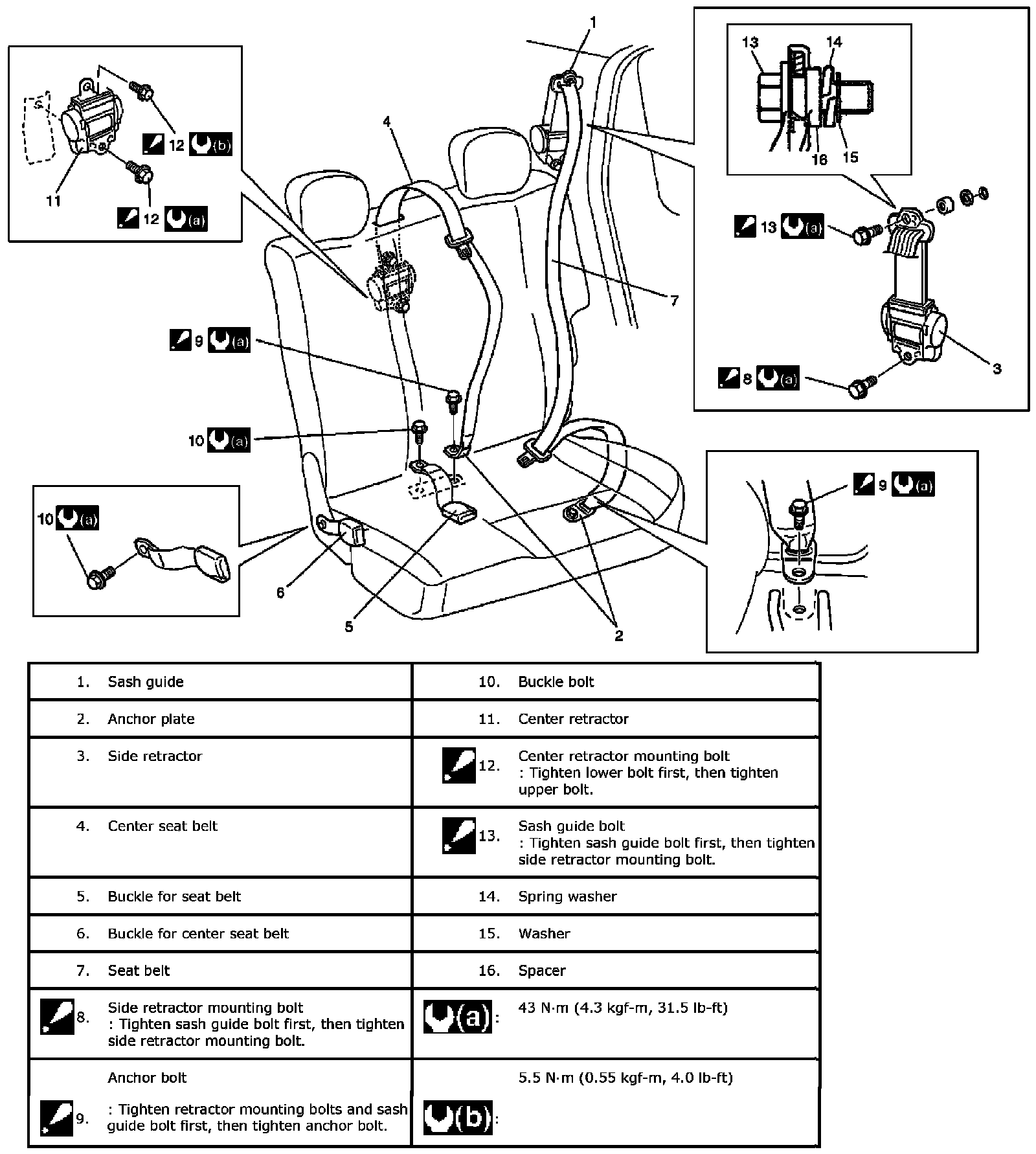

Rear Seat Belt Components

Rear Seat Belt Components

Rear Seat Belt Components:





WARNING: Be sure to read Precautions on Service and Diagnosis of Seat Belt before starting to work and observe every precaution during work.
