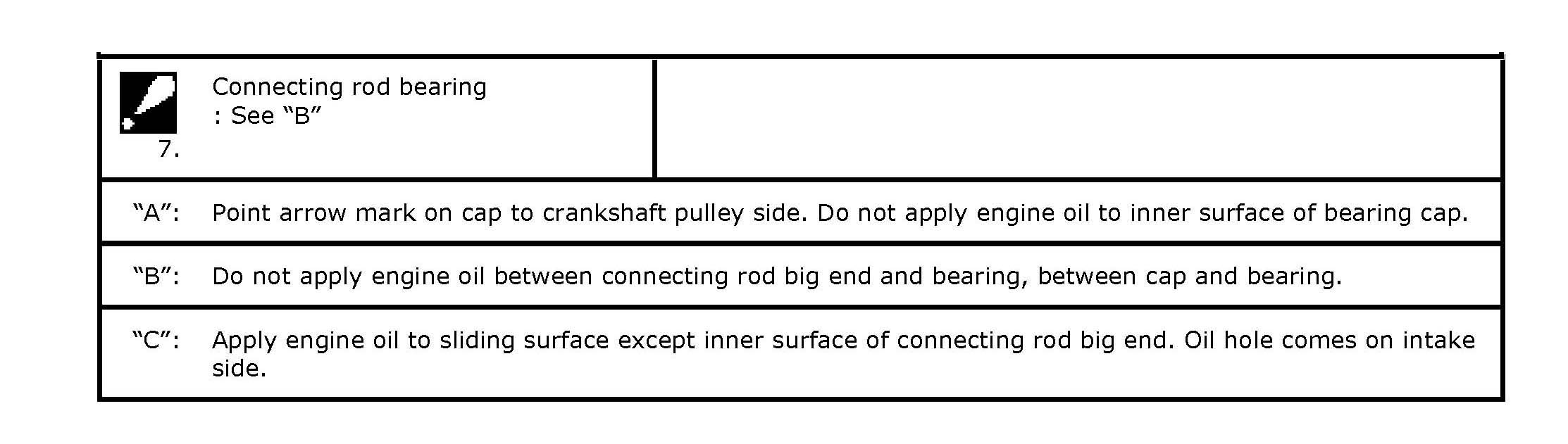

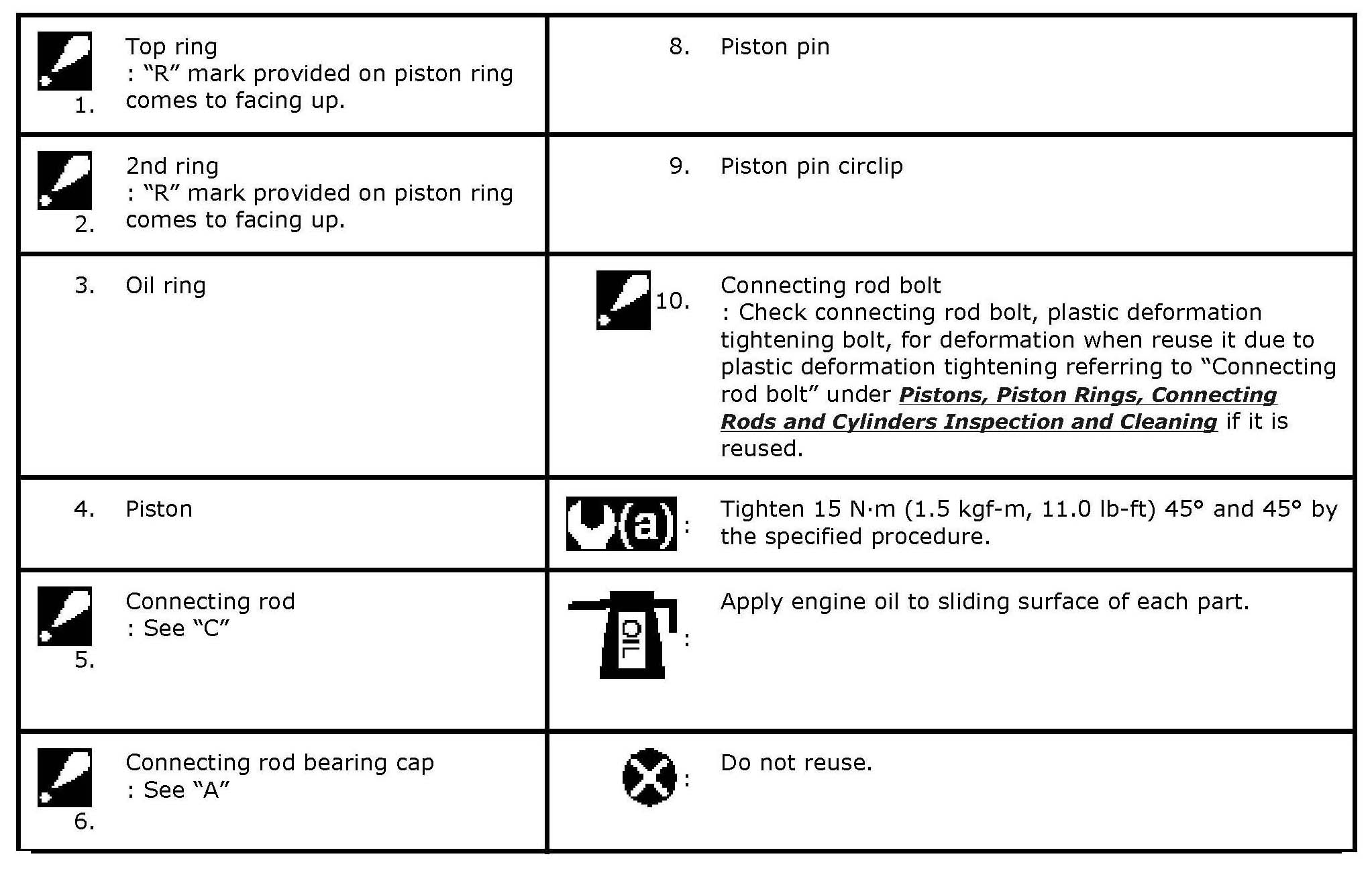

Pistons, Piston Rings, Connecting Rods and Cylinders Components
Pistons,
Piston Rings
,
Connecting Rods
and Cylinders Components
