Power Brake Assist: Description and Operation

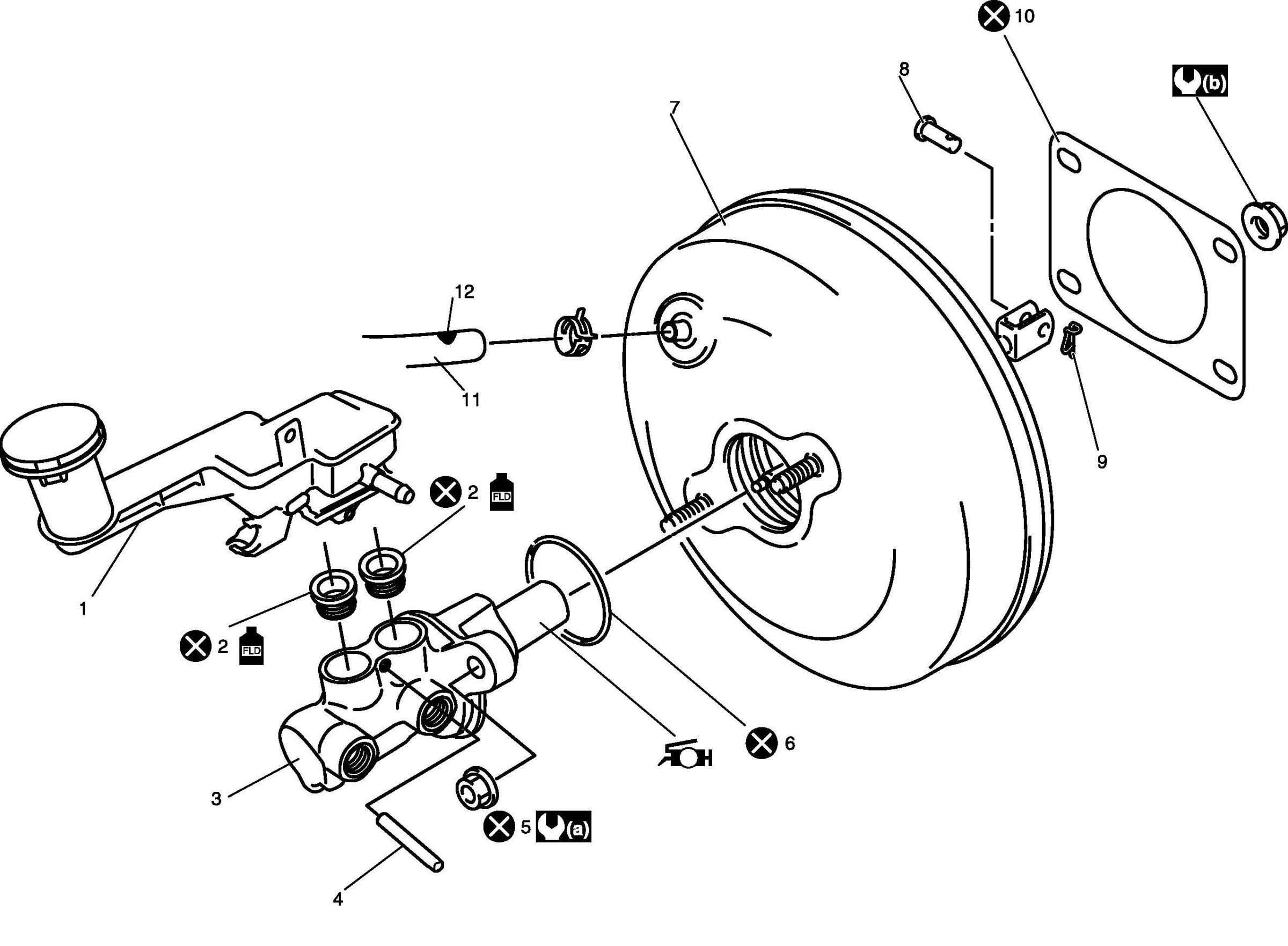

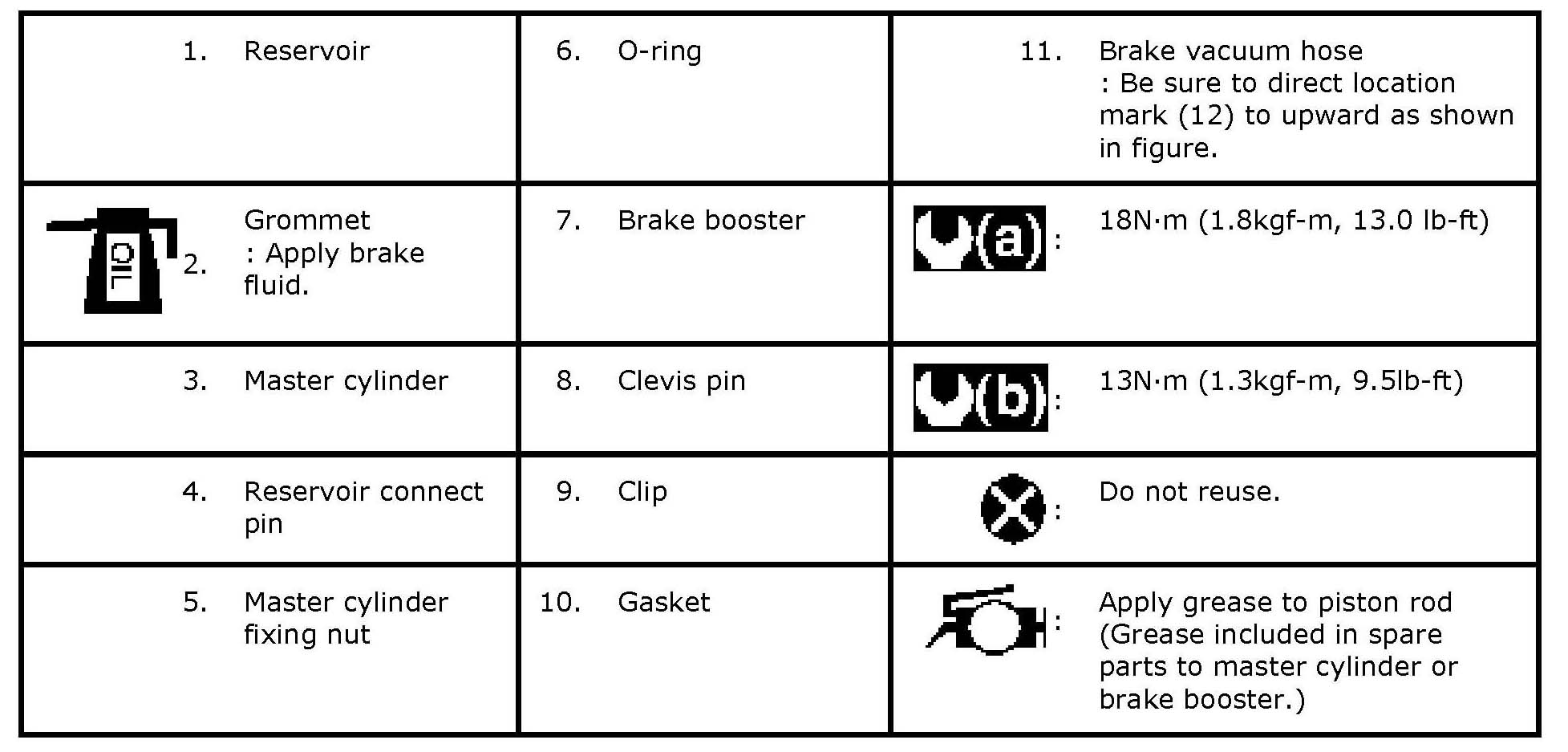

Master Cylinder and Brake Booster Components

CAUTION: Never disassemble master cylinder and brake booster. Disassembly will spoil its original function. If faulty condition is found, replace it with new one.
