ESP(R) Off Switch Inspection

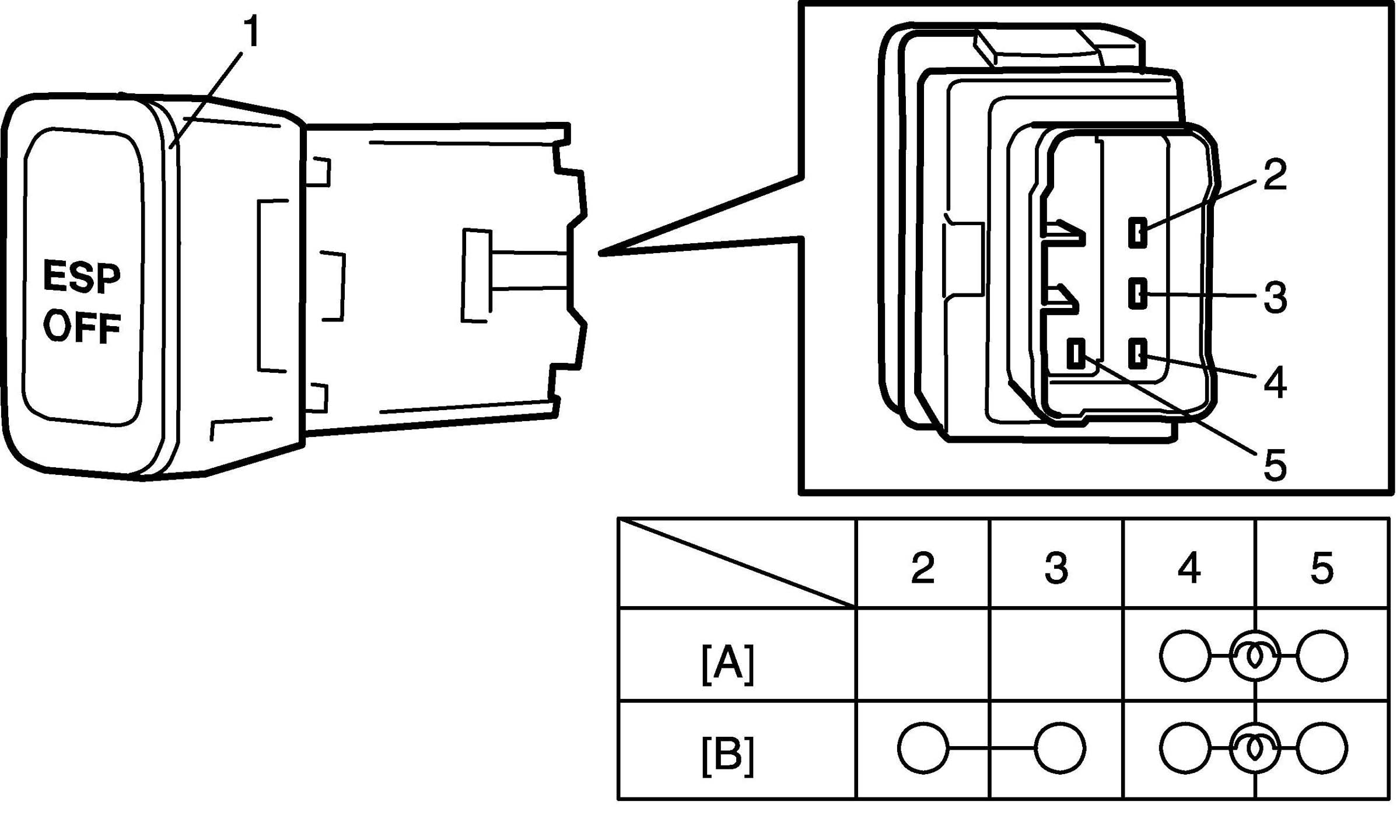

ESP(R) OFF Switch Inspection

Check for continuity between terminals at each switch position.
If check result is not as specified, replace ESP(R) OFF switch (1).
