ABS (ESP(R)) Hydraulic Unit / Control Module Assembly Power and Ground Circuit Check

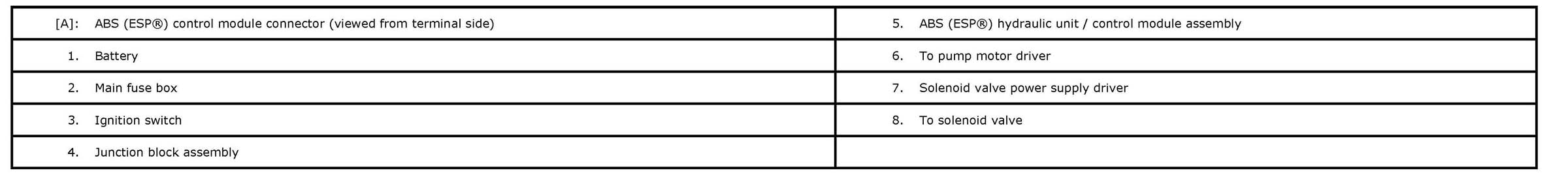

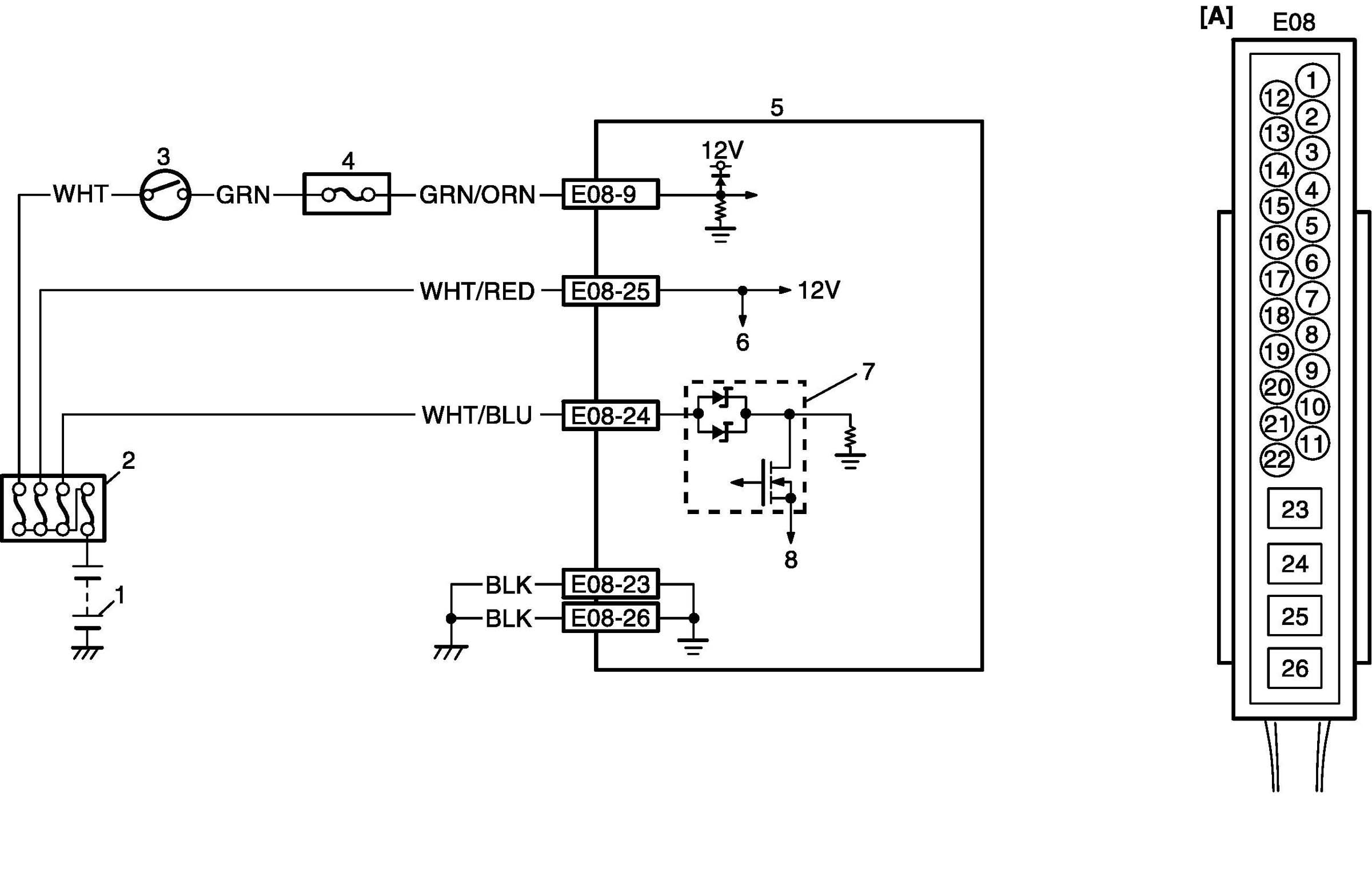

ABS (ESP(R)) Hydraulic Unit / Control Module Assembly Power and Ground Circuit CheckWiring Diagram
Circuit Description
When the ignition switch is turned ON, power supply is supplied to ABS ESP(R) control module. And, power supply is supplied to pump motor and solenoid valve in other line by the switching function in ABS ESP(R) control module.

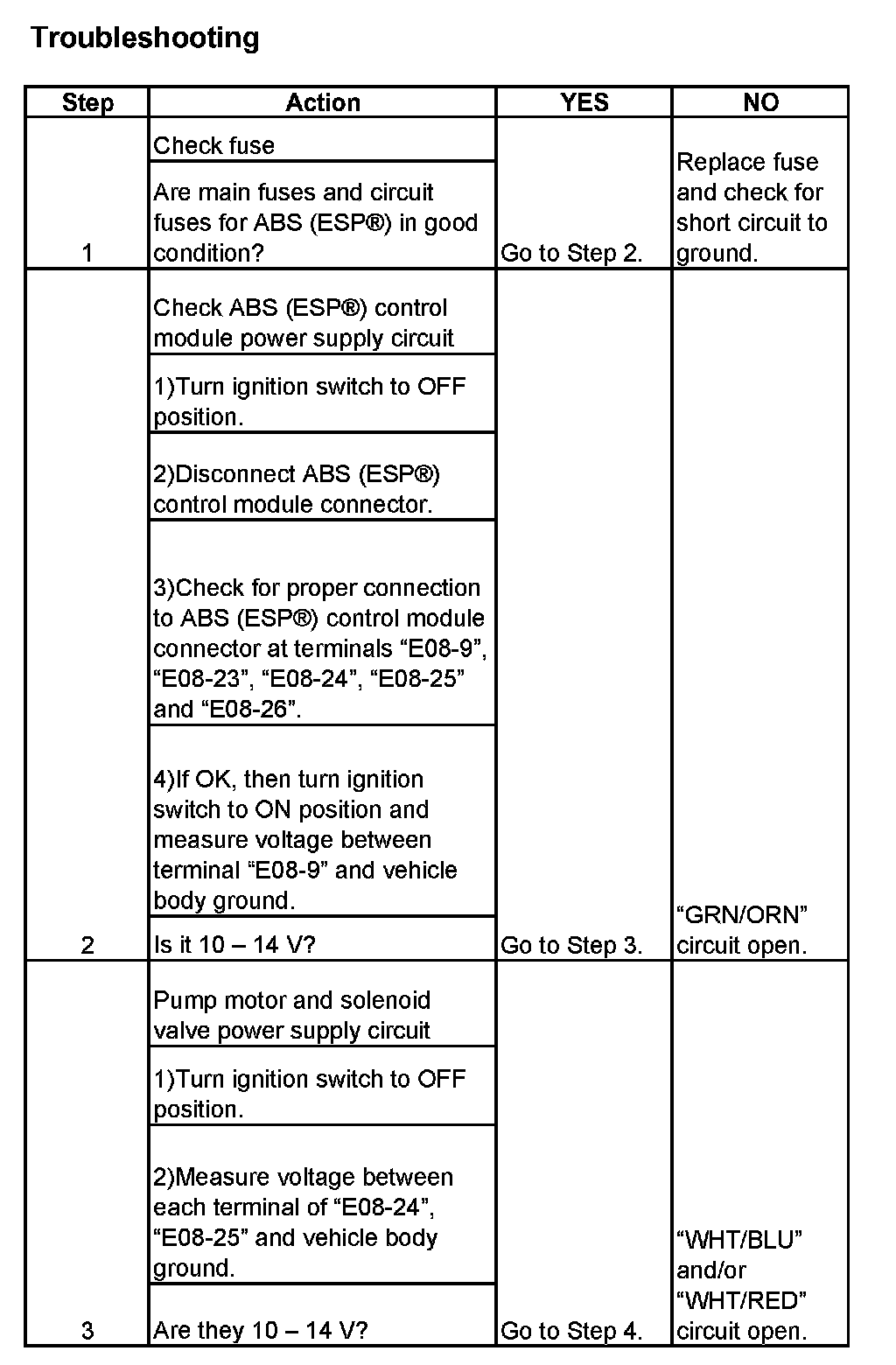

Troubleshooting
Step 1-3:
Step 4:
