Component Tests and General Diagnostics

Door Mirror Heater Inspection (If Equipped)

Reference: Door Mirror Removal and Installation

1. Remove door trim referring to step 1) to 3) of Front Door Glass Removal and Installation.

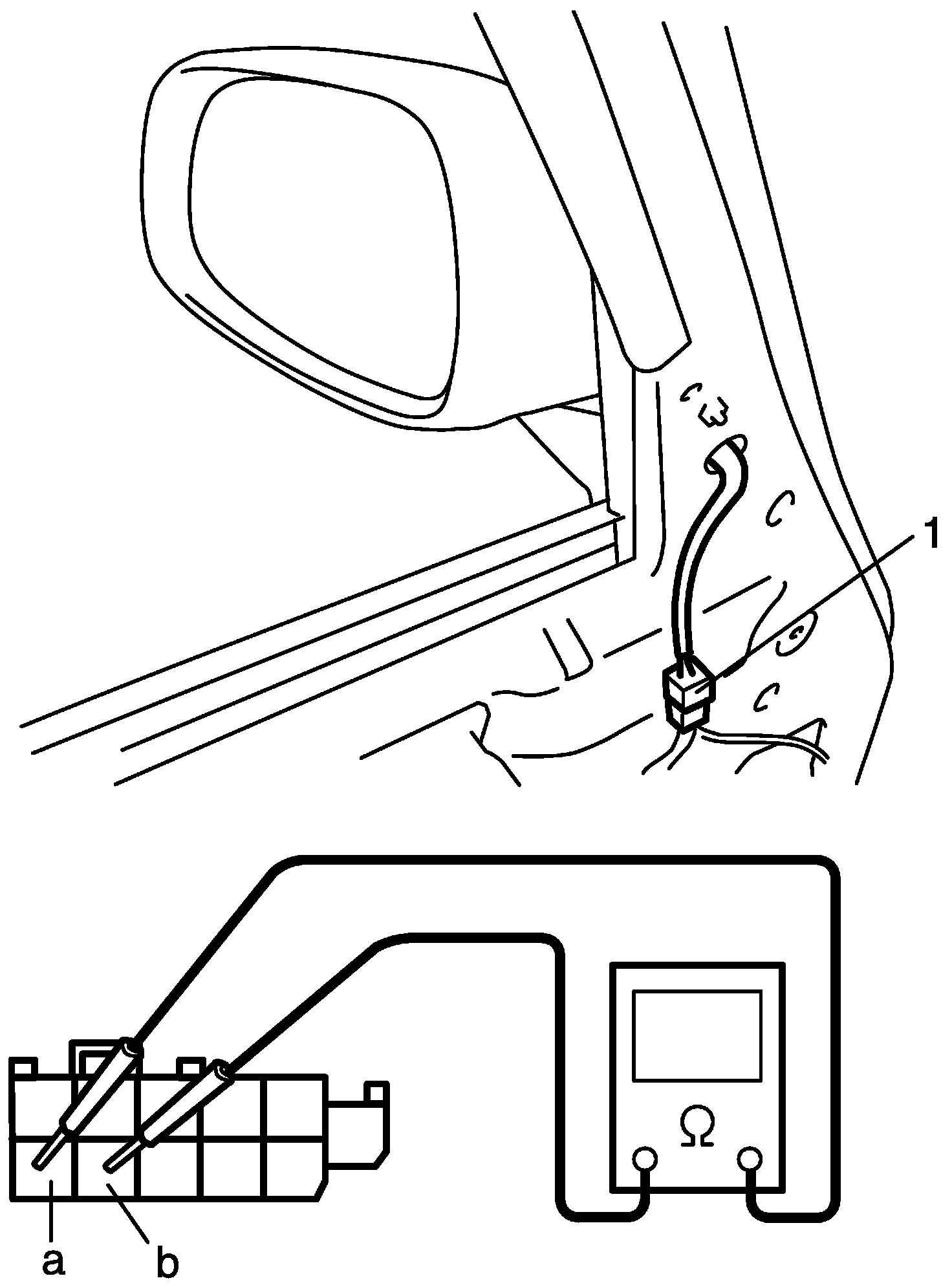

2. Disconnect door mirror connector (1).
3. Check for continuity between terminals "a" and "b".
If no continuity, replace outside mirror.
