Trunk / Liftgate Switch: Testing and Inspection

Rear End Door Opener Switch Inspection

1. Remove rear end door trim.
2. Disconnect rear end door switch coupler.

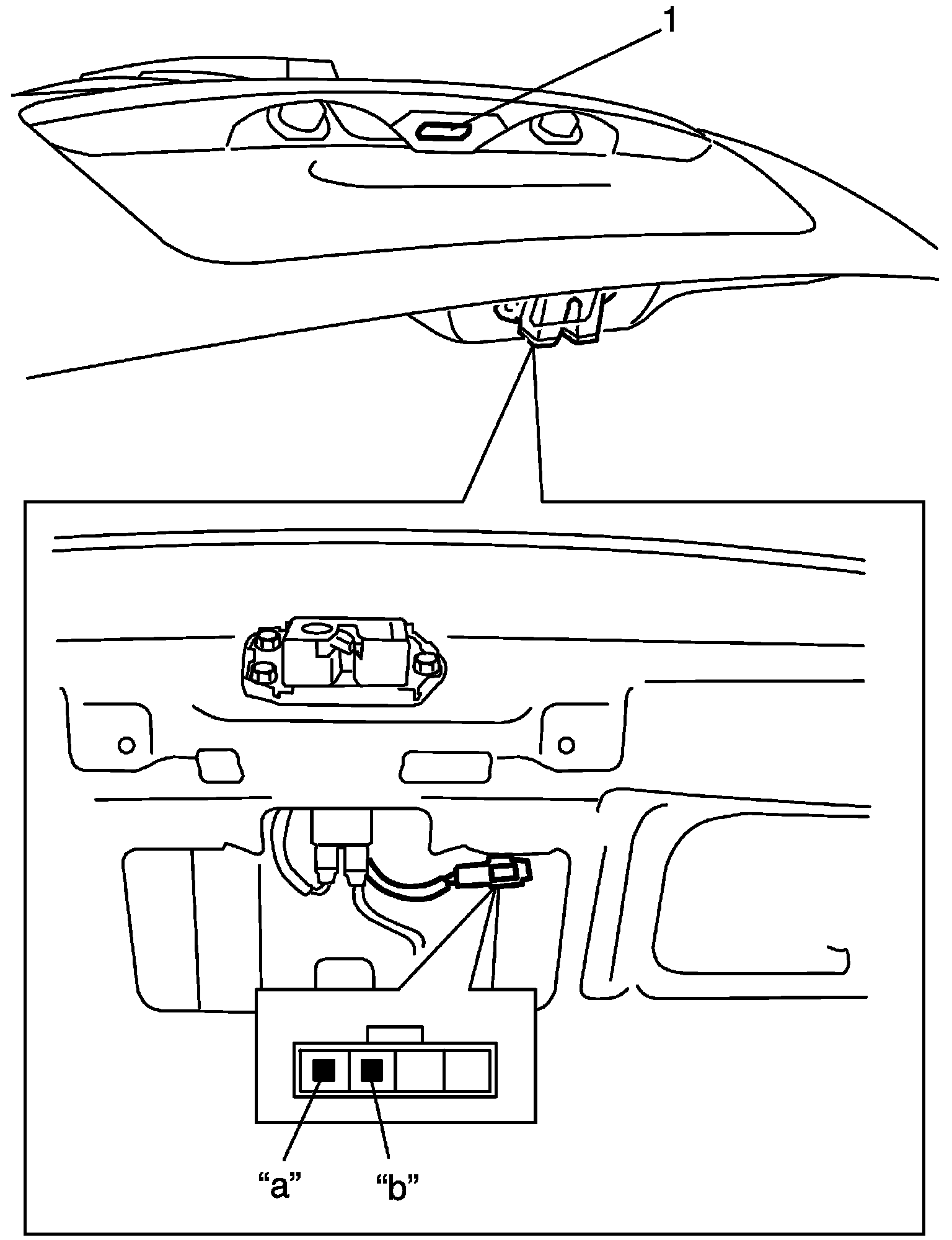

3. Check that there is continuity between terminals "a" and "b" when rear end door opener switch (1) is pushed.
4. Check that there is no continuity between terminals when rear end door opener switch (1) is not pushed.

If check result is not as specified, replace switch.
