Trunk / Liftgate Ajar Switch: Testing and Inspection

Rear End Door Switch Inspection

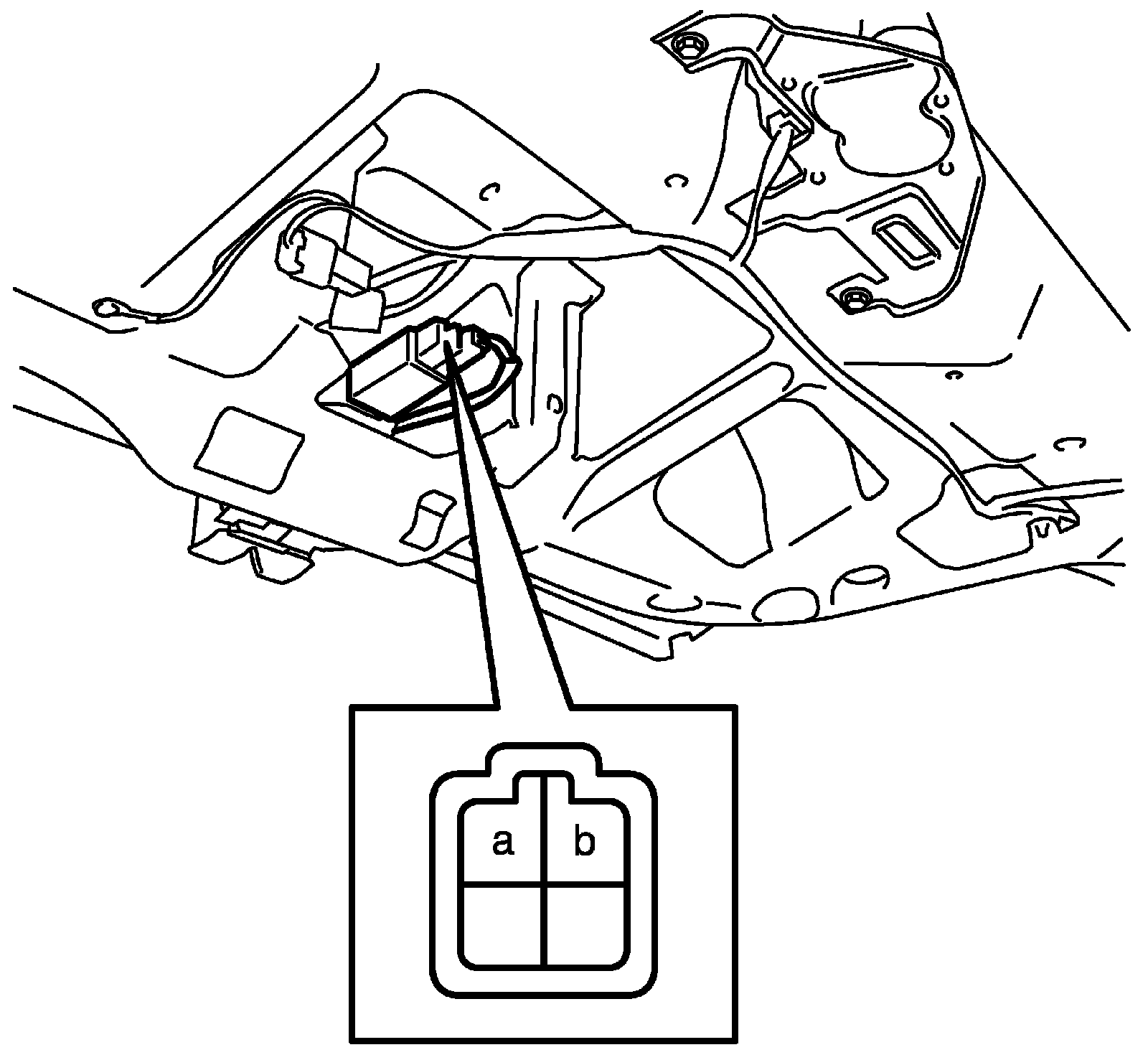

Check for continuity between terminal "a" and "b" shown in the following.
If check result is not as specified, replace switch.

Rear end door switch specification
Rear end door closed: No continuity
Rear end door opened: Continuity
