P1621

DTC P1621: Immobilizer Communication Line Error

Wiring Diagram
Refer to Immobilizer Control System Wiring Circuit Diagram.

Detecting Condition And Trouble Area:




Detecting Condition and Trouble Area

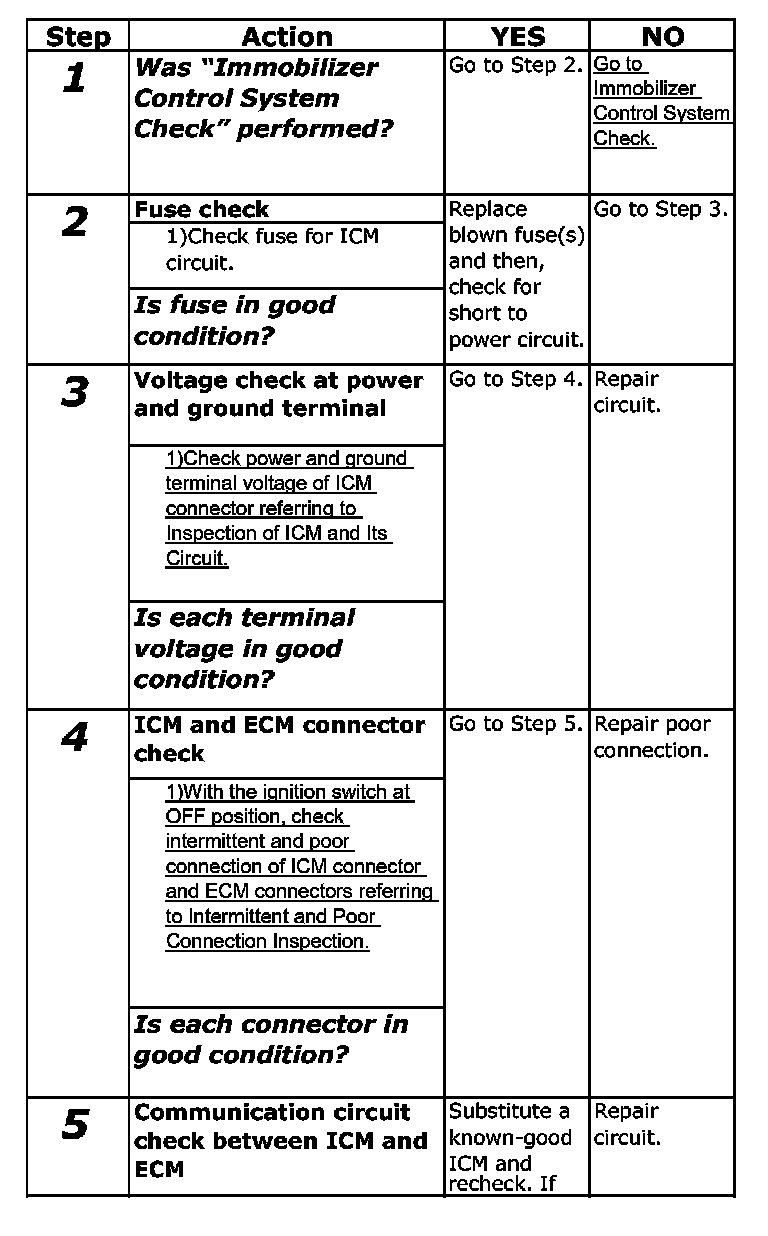

Step 1-5(Continued):




Step 5(Continued):




Troubleshooting
