P0961

DTC P0961: Pressure Control Solenoid "A" Control Circuit Range / Performance

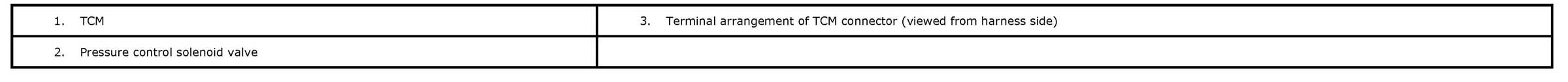

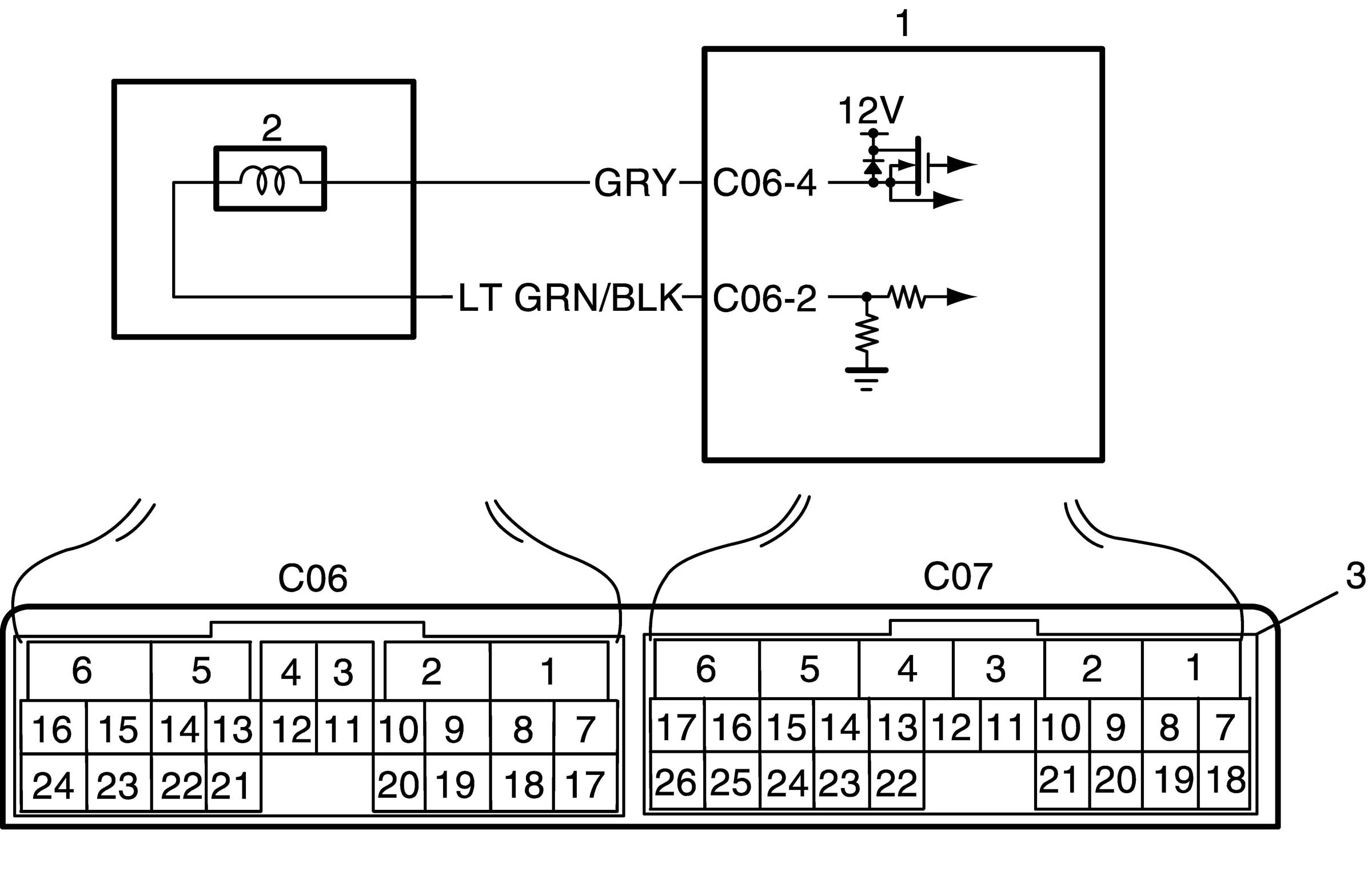

Wiring Diagram

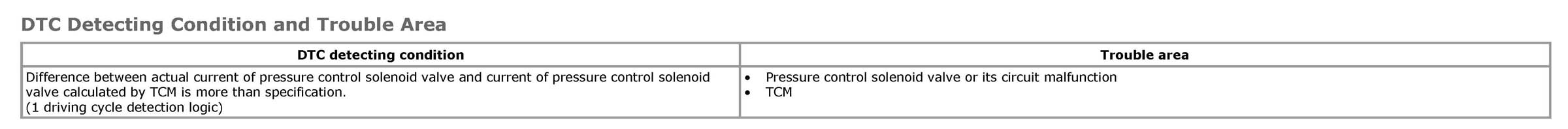

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Clear DTC.
2. Start engine at idle speed for 15 seconds or more.
3. Check DTC.

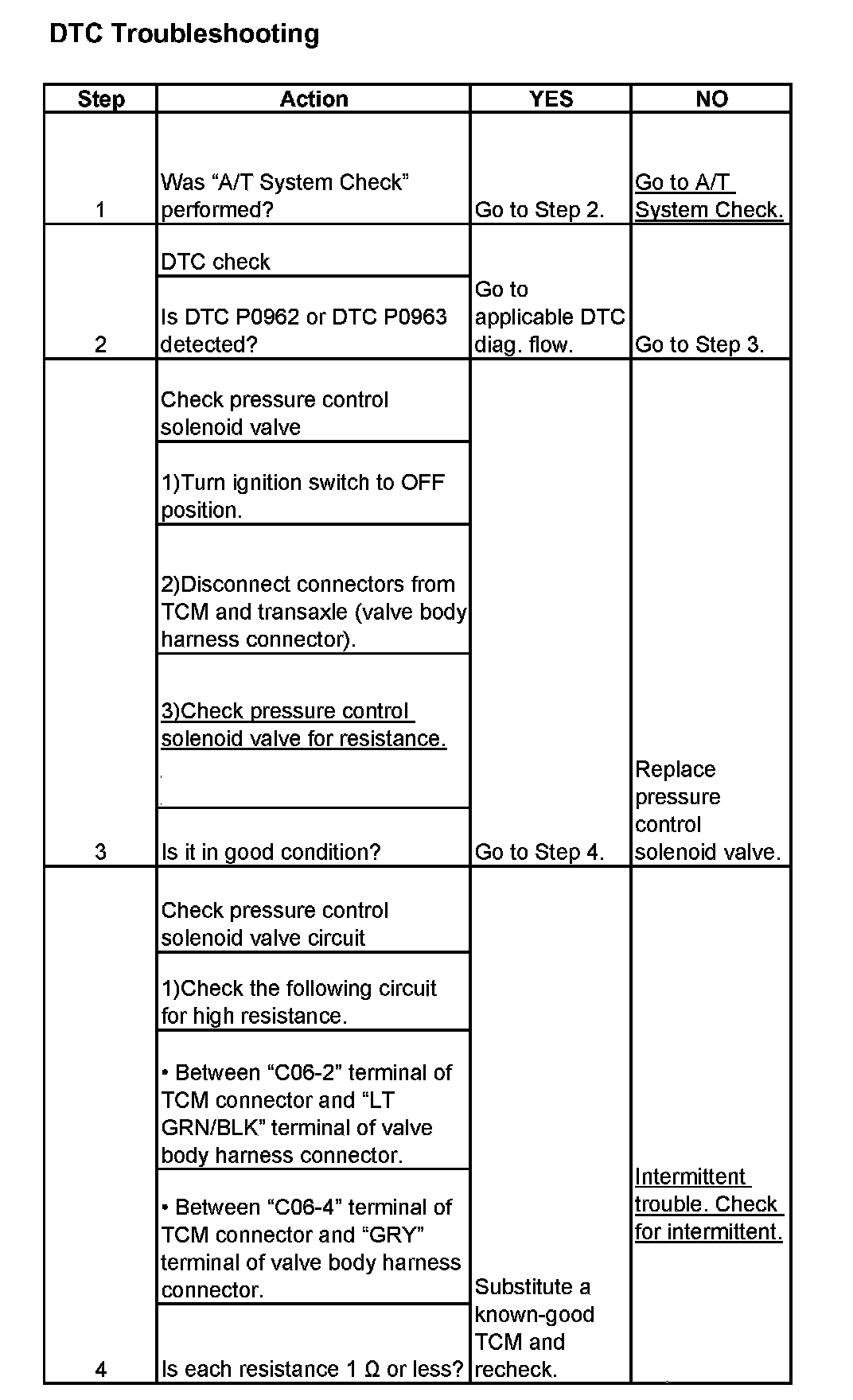

DTC Troubleshooting
