C1141
DTC C1141 / C1142 / C1143 / C1145: Motor Circuit Failure(DTC C1141: P/S Motor Circuit Voltage)
(DTC C1142: P/S Motor Circuit Range/Performance)
(DTC C1143: P/S Motor Circuit Current Too High)
(DTC C1145: P/S Motor Circuit Current Too Low)

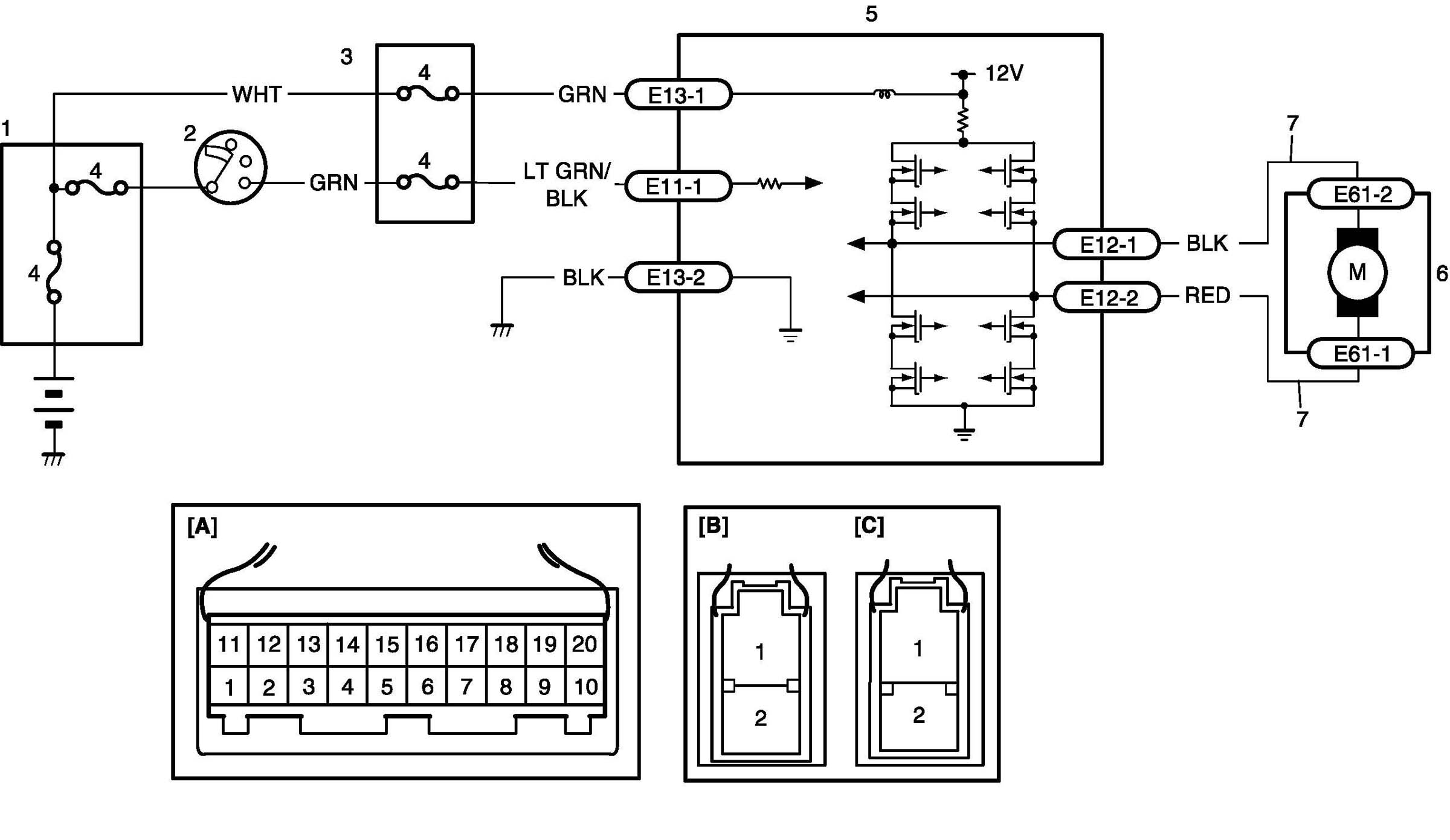

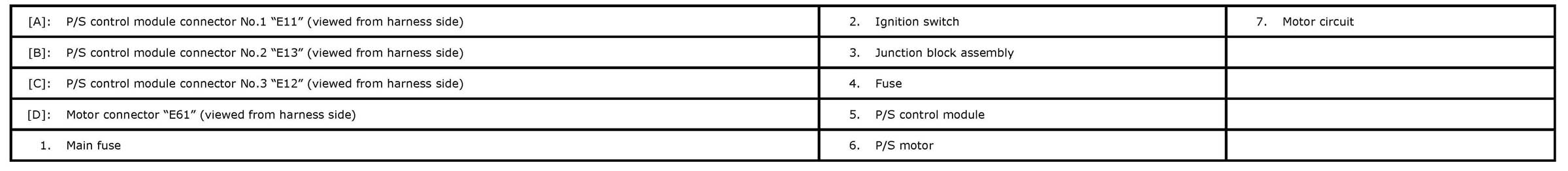

Wiring Diagram

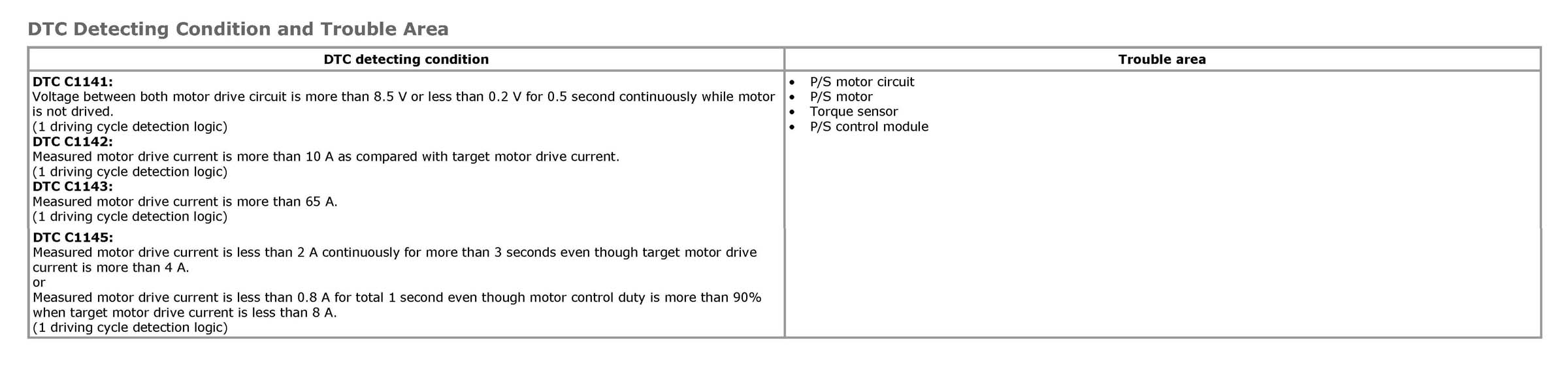

DTC Detecting Condition and Trouble Area

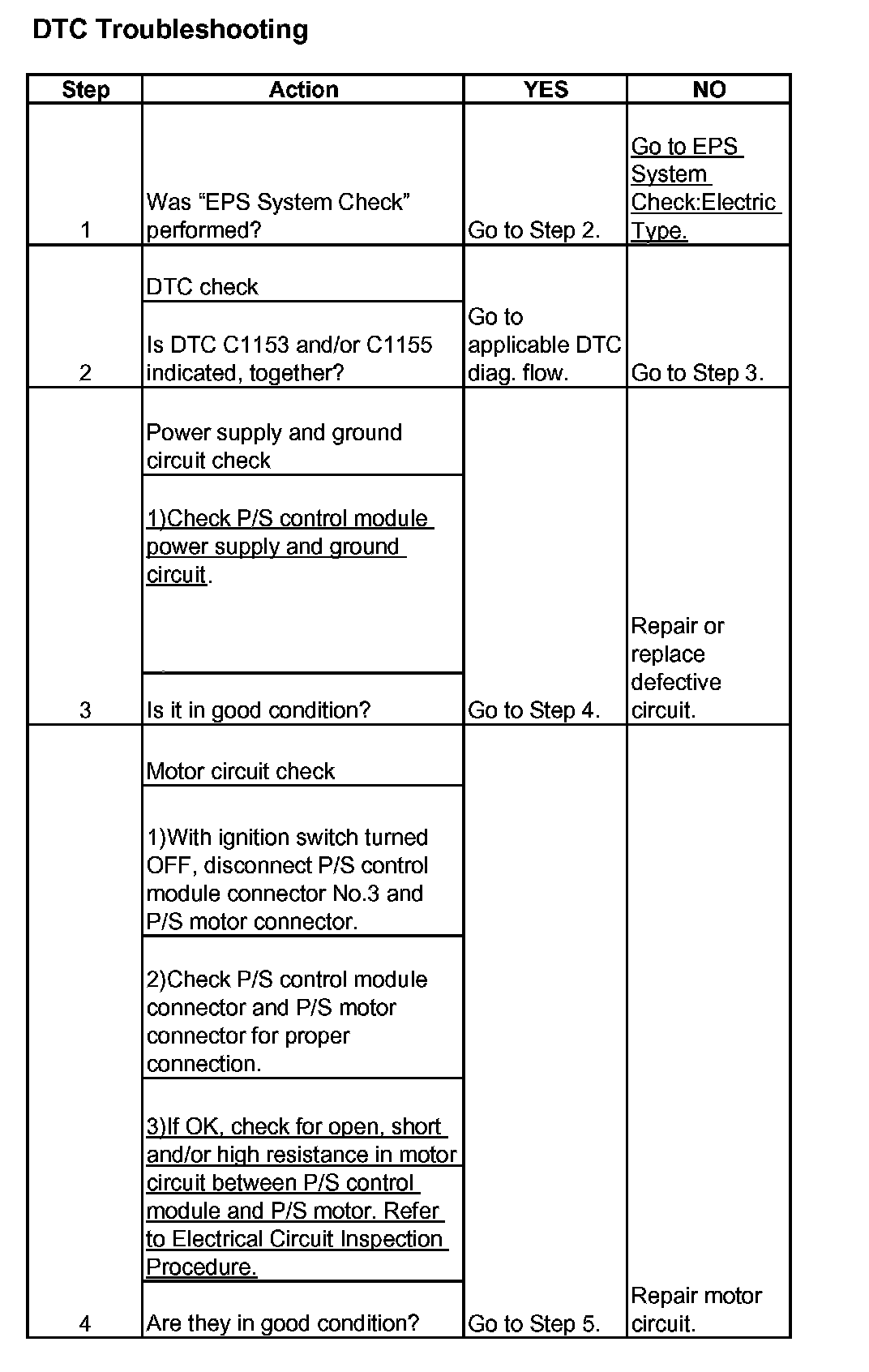

DTC Troubleshooting
Step 1-4:
Step 5:
