C1124
DTC C1121 / C1123 / C1124: Vehicle Speed Signal Circuit Failure(DTC C1121: No Vehicle Speed Signal (60 Seconds or More))
(DTC C1123: No Vehicle Speed Signal (30 Seconds or More))
(DTC C1124: Vehicle Speed Performance (Impossible Deceleration))

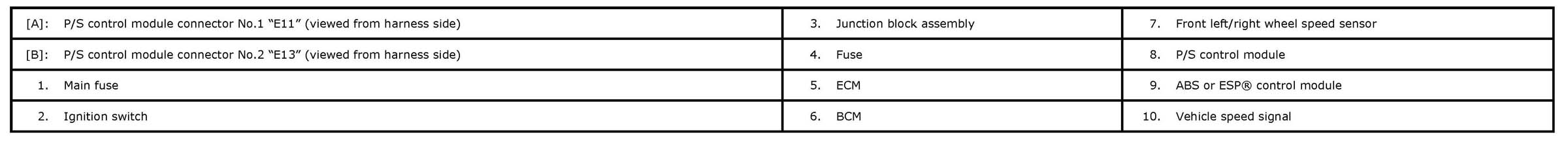

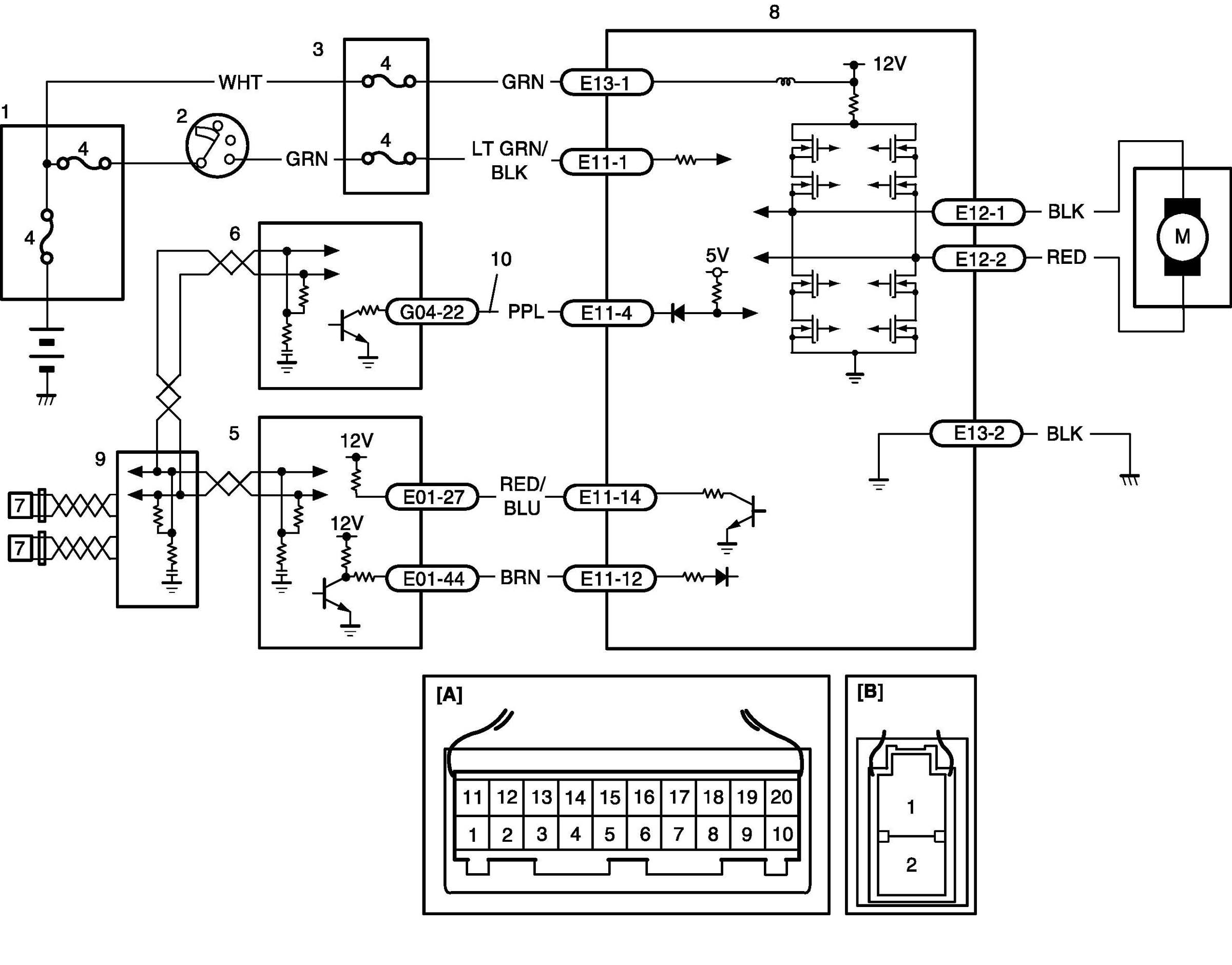

Wiring Diagram

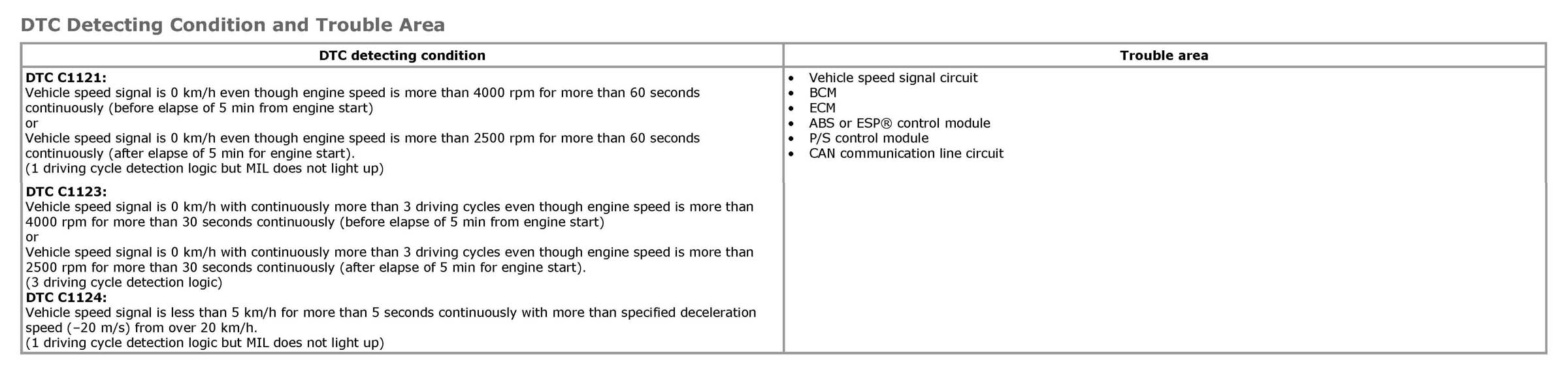

DTC Detecting Condition and Trouble Area

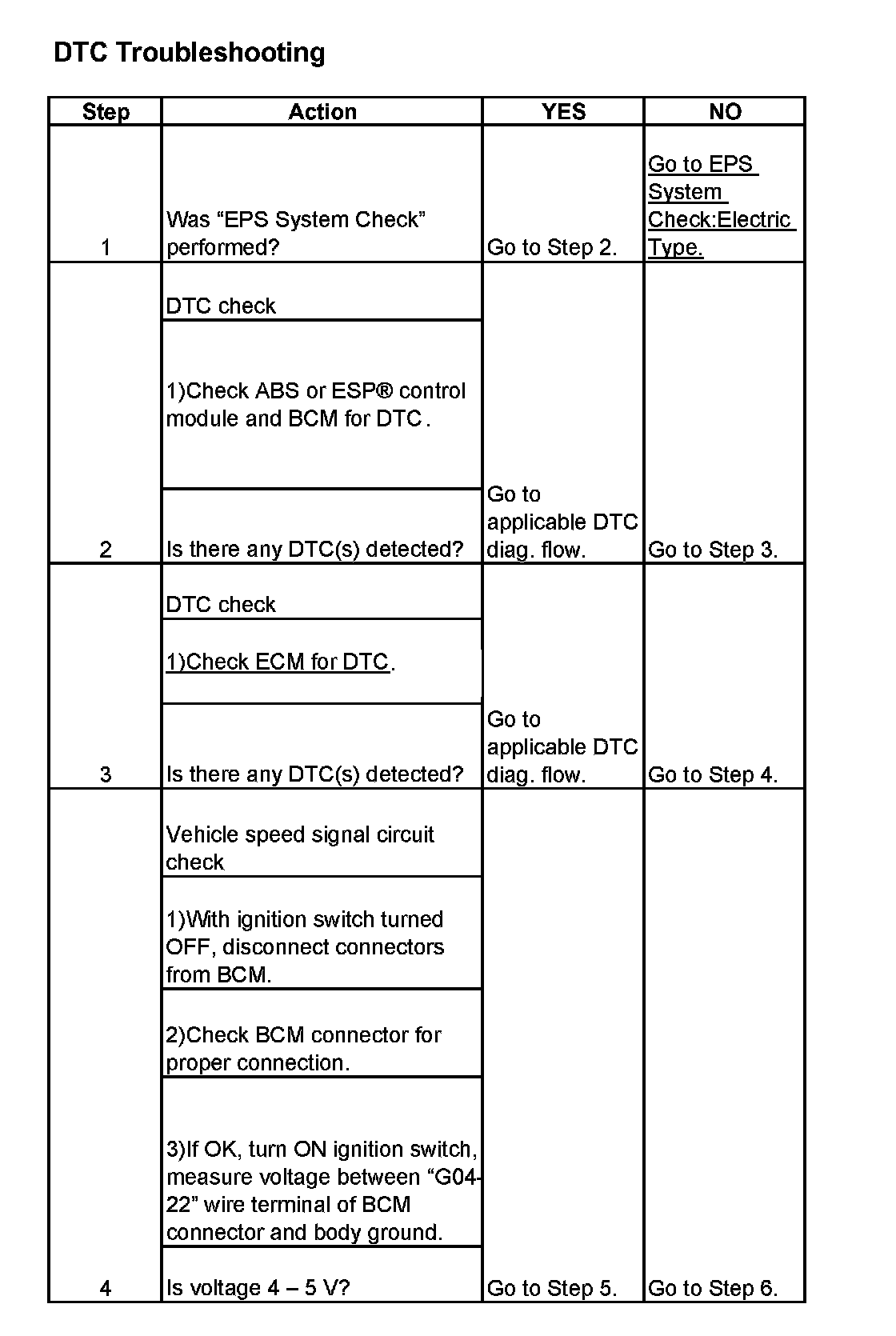

DTC Troubleshooting
Step 1-4:

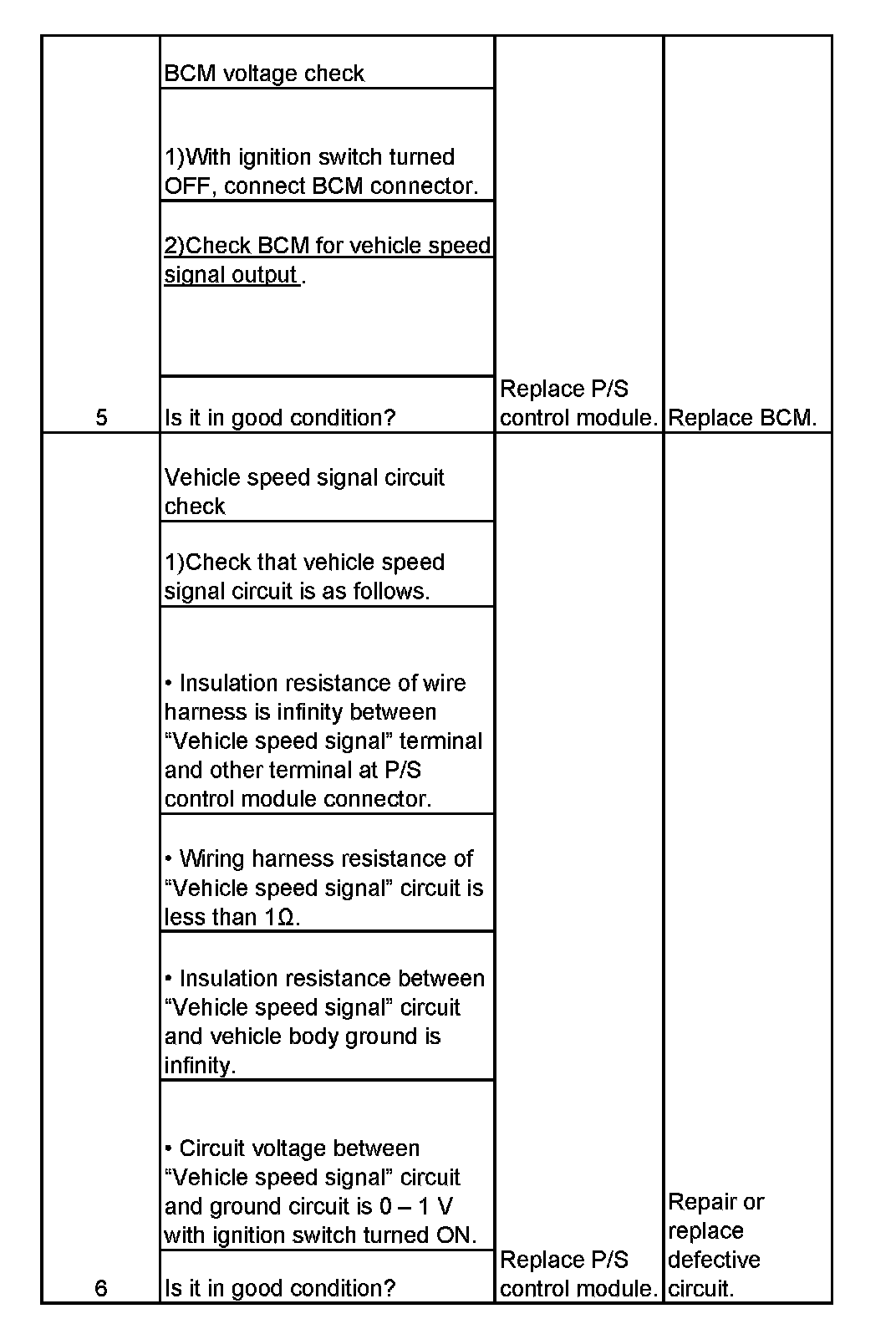

Step 5-6:
