C1111
DTC C1111 / C1113 / C1115: Torque Sensor Circuit Failure(DTC C1111: Steering Torque Sensor (Main) Circuit Voltage)
(DTC C1113: Steering Torque Sensor (Main and Sub) Circuit Correlation)
(DTC C1115: Steering Torque Sensor (Sub) Circuit Voltage)

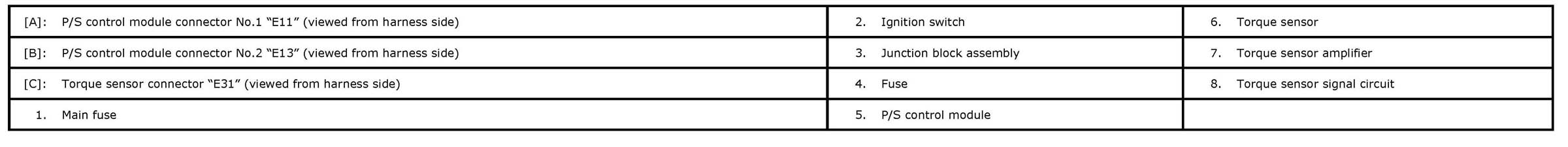

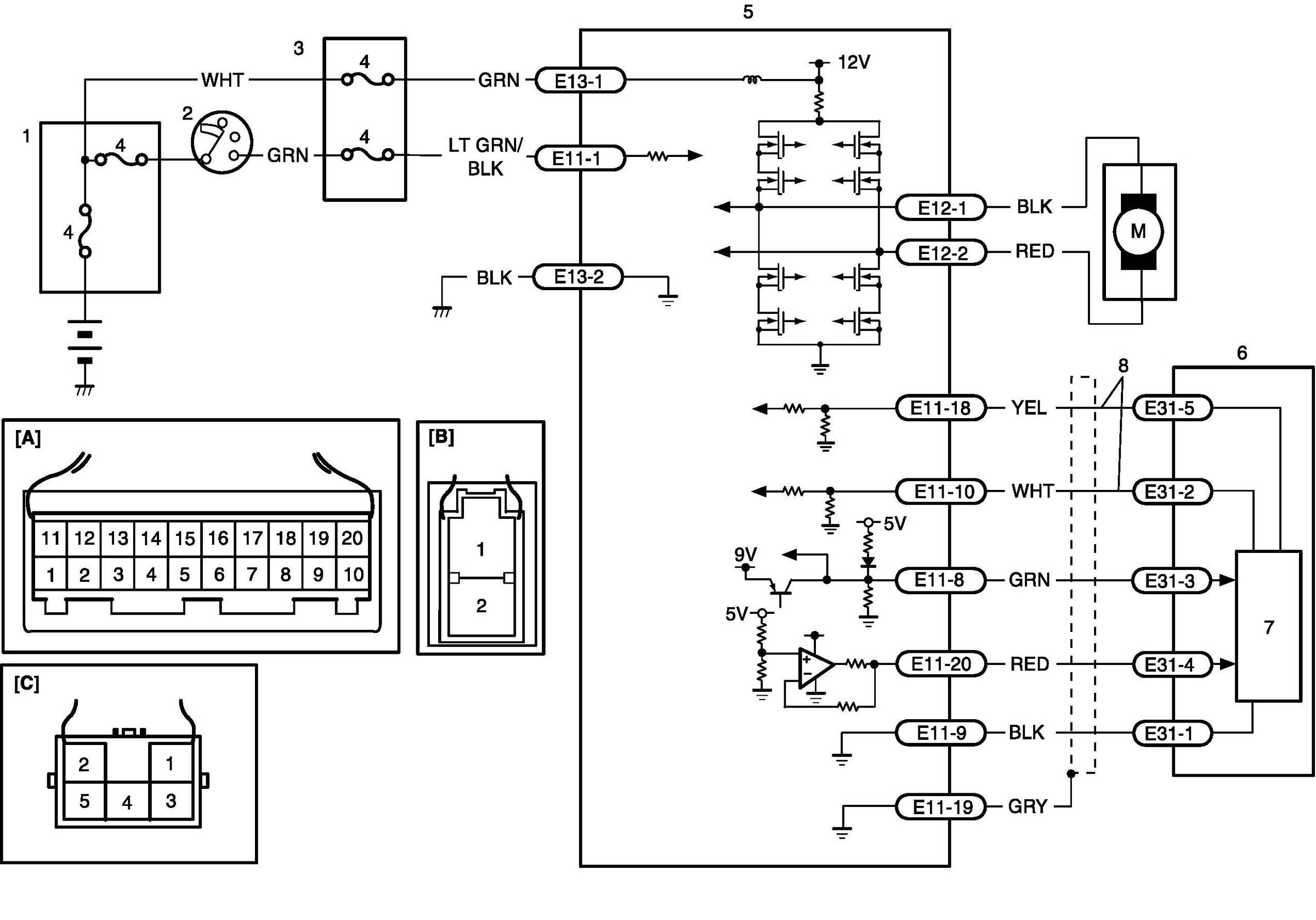

Wiring Diagram

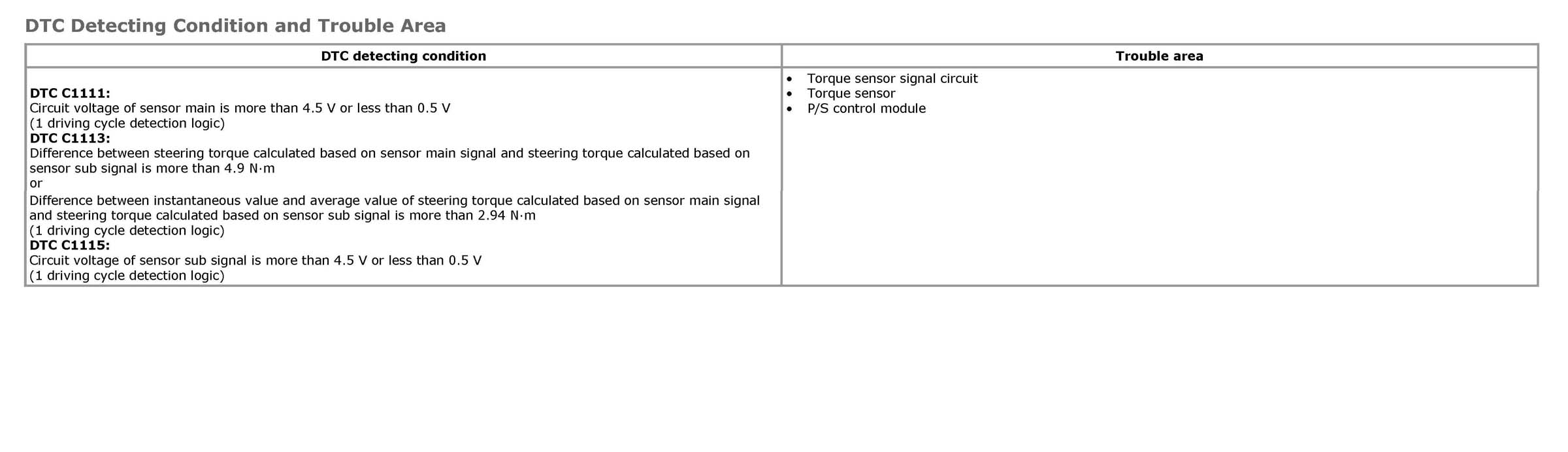

DTC Detecting Condition and Trouble Area

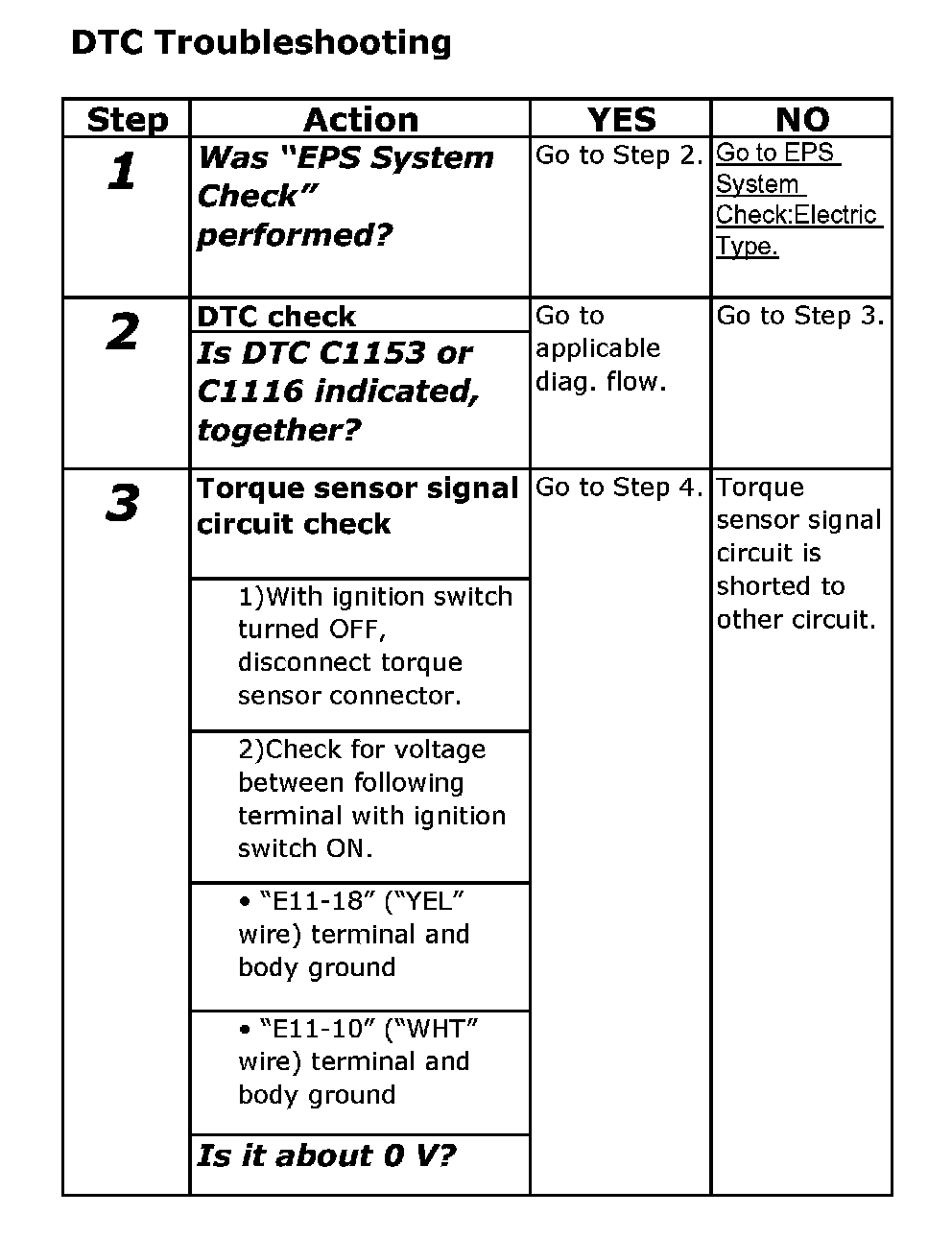

DTC Troubleshooting
Step 1-3:
Step 4:
Step 5-6:
