ABS

DTC 1016: Brake Light Switch

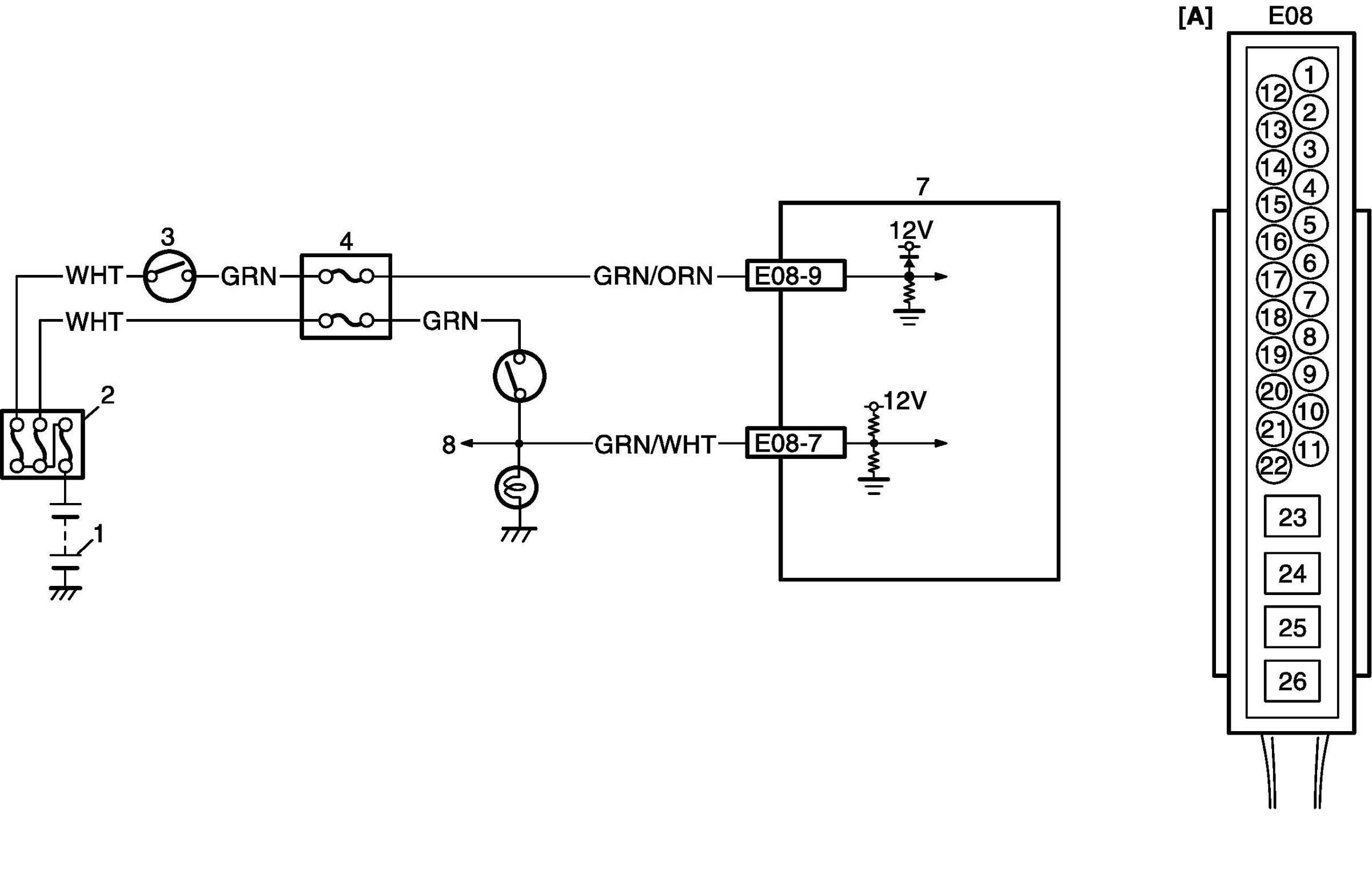

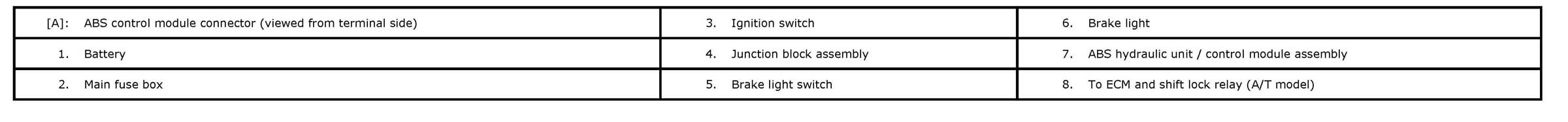

Wiring Diagram

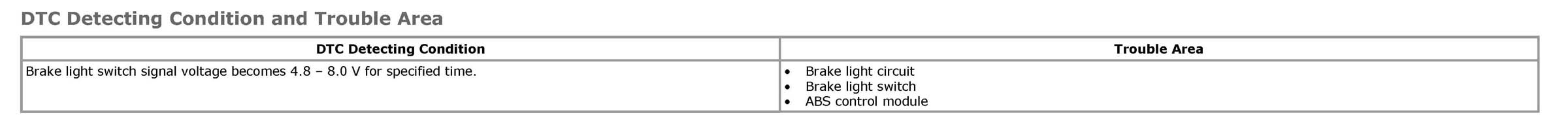

DTC Detecting Condition and Trouble Area





NOTE: When a vehicle is lifted up and its wheel(s) is turned, this DTC is set. In such case, clear the DTC and check again.

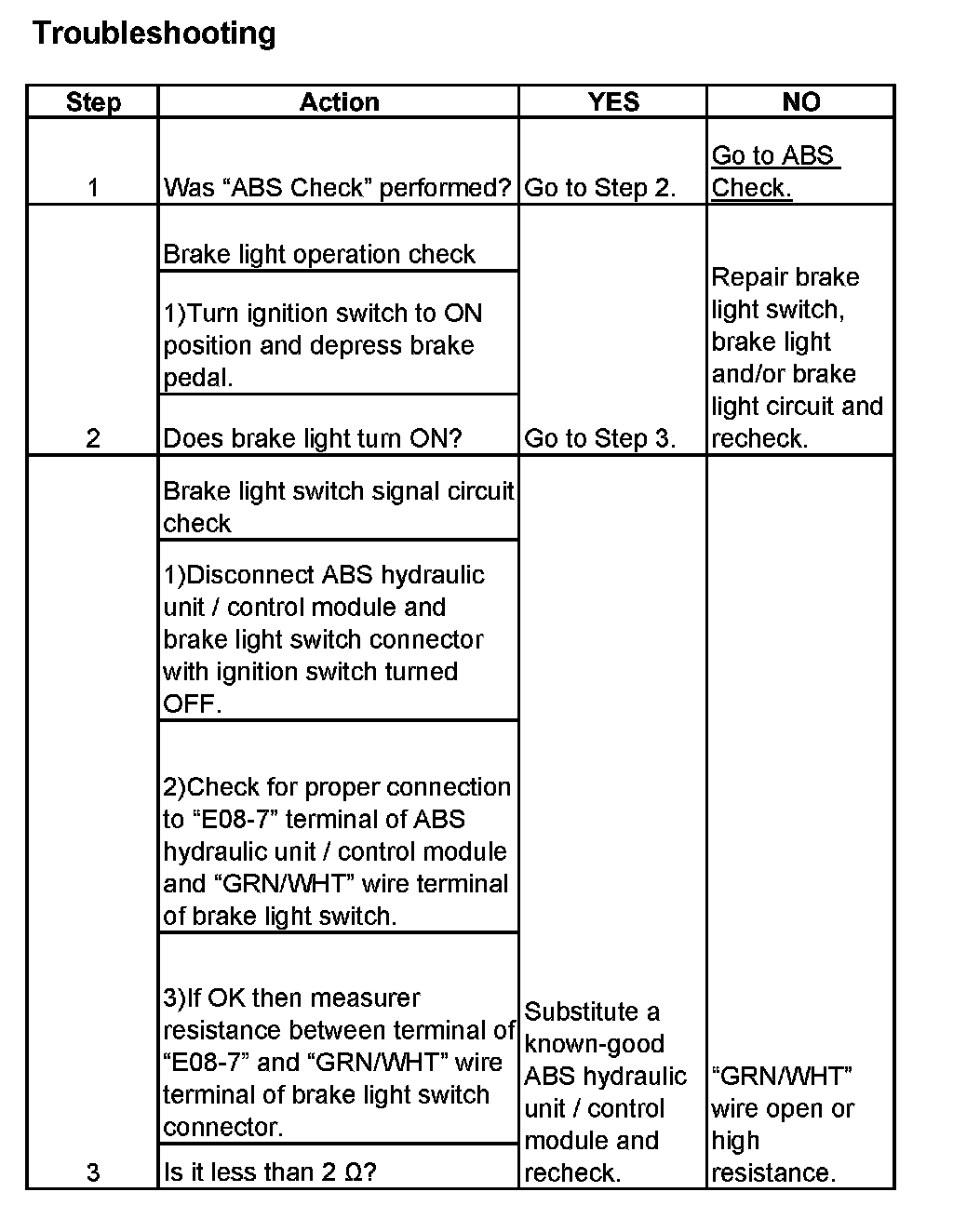

Troubleshooting

Step 1-3:
