B1365

DTC B1361 / B1365: Curtain-Air Bag Circuit High Resistance
(DTC B1361: Driver Curtain-Air Bag Circuit High resistance)
(DTC B1365: Passenger Curtain-Air Bag Circuit High resistance)

Wiring Diagram:

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

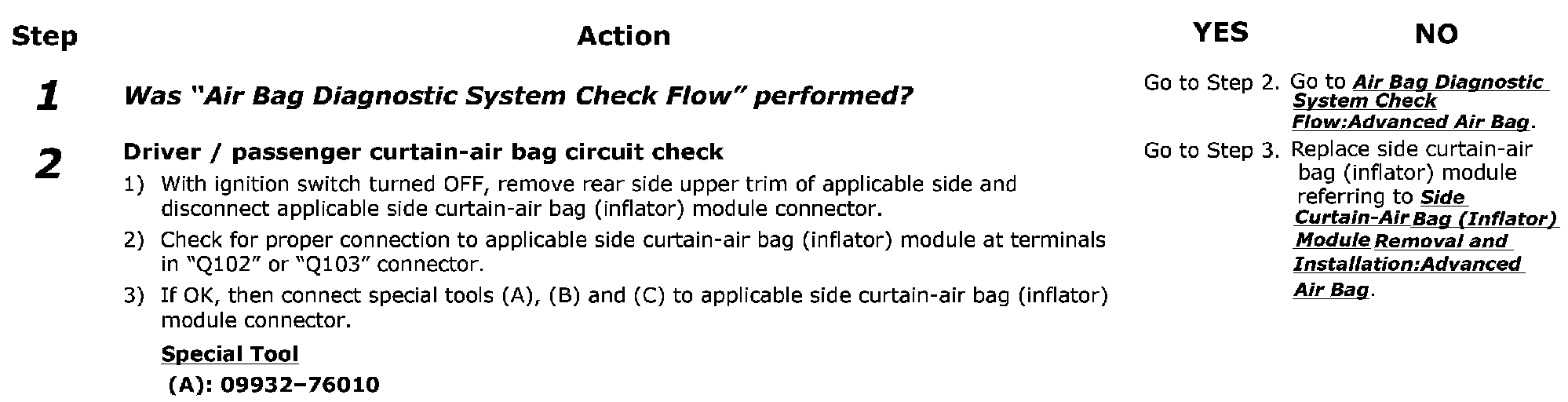

Step 1 - 2(Continued):

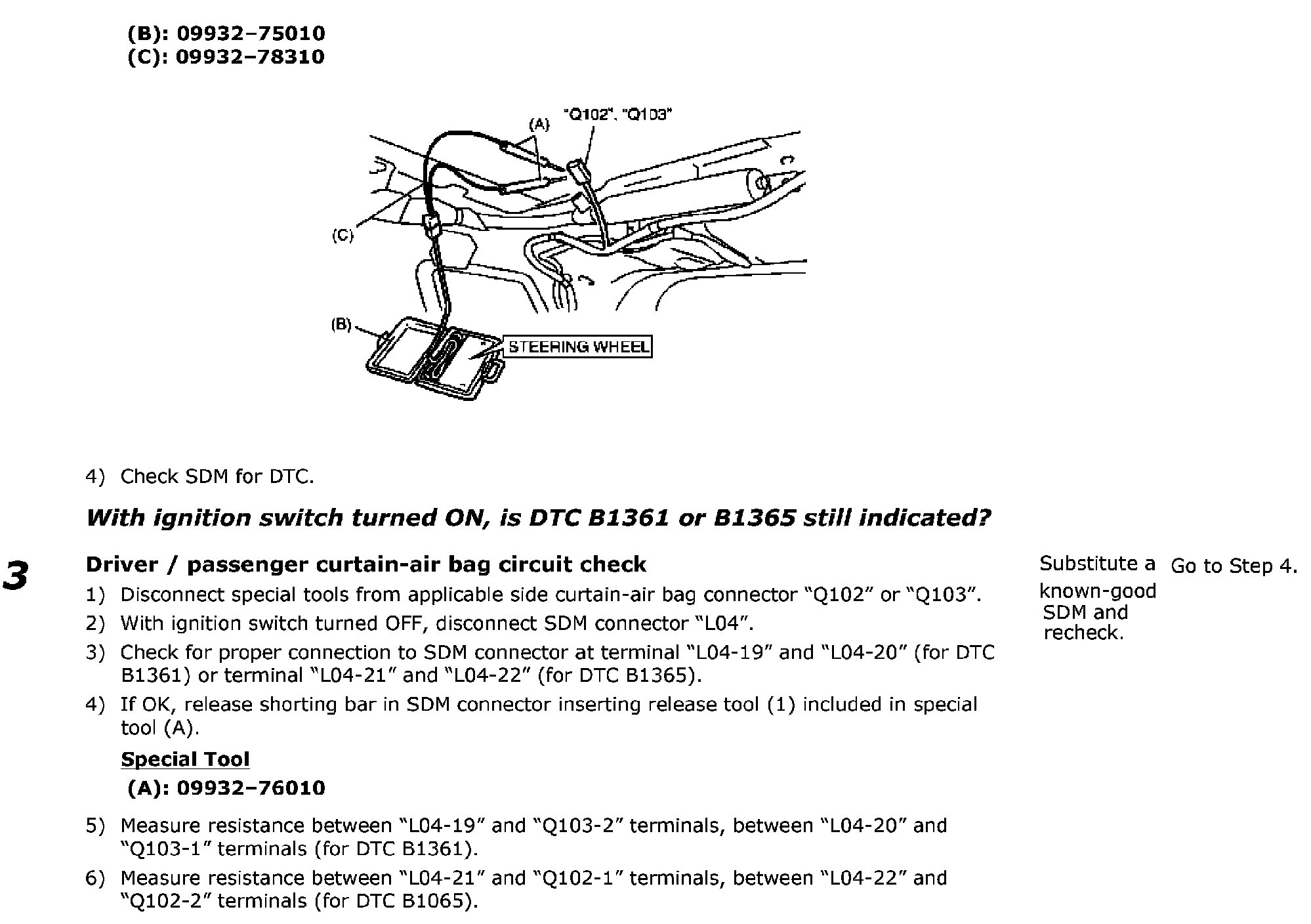

Step 2(Continued)-3(Continued):

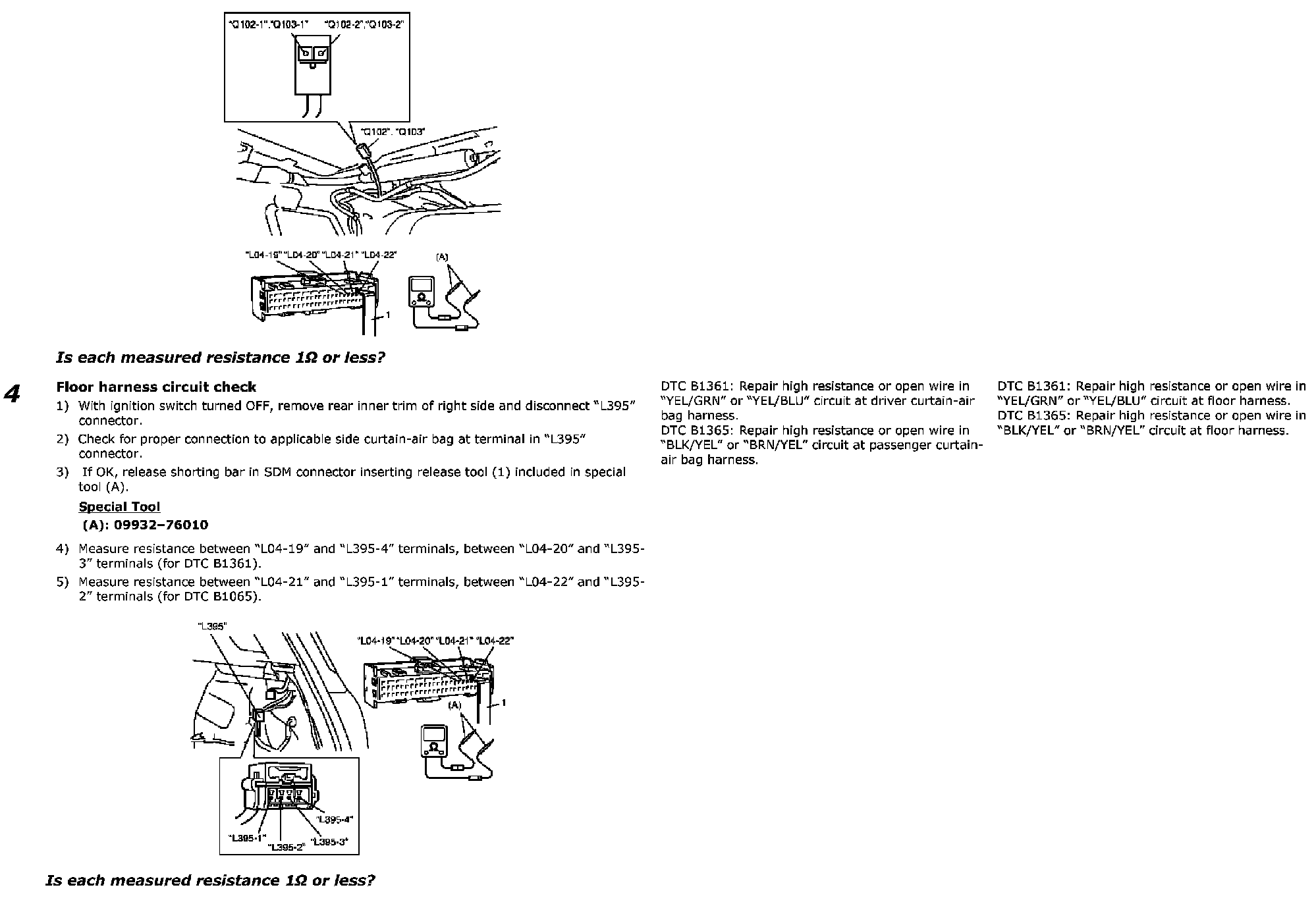

Step 3(Continued)-4:

DTC Troubleshooting

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components, ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
