B1362

DTC B1362 / B1366: Curtain-Air Bag Circuit Low Resistance
(DTC B1362: Driver Curtain-Air Bag Circuit Low Resistance)
(DTC B1366: Passenger Curtain-Air Bag Circuit Low Resistance)

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition and Trouble Area:

DTC Detecting Condition and Trouble Area

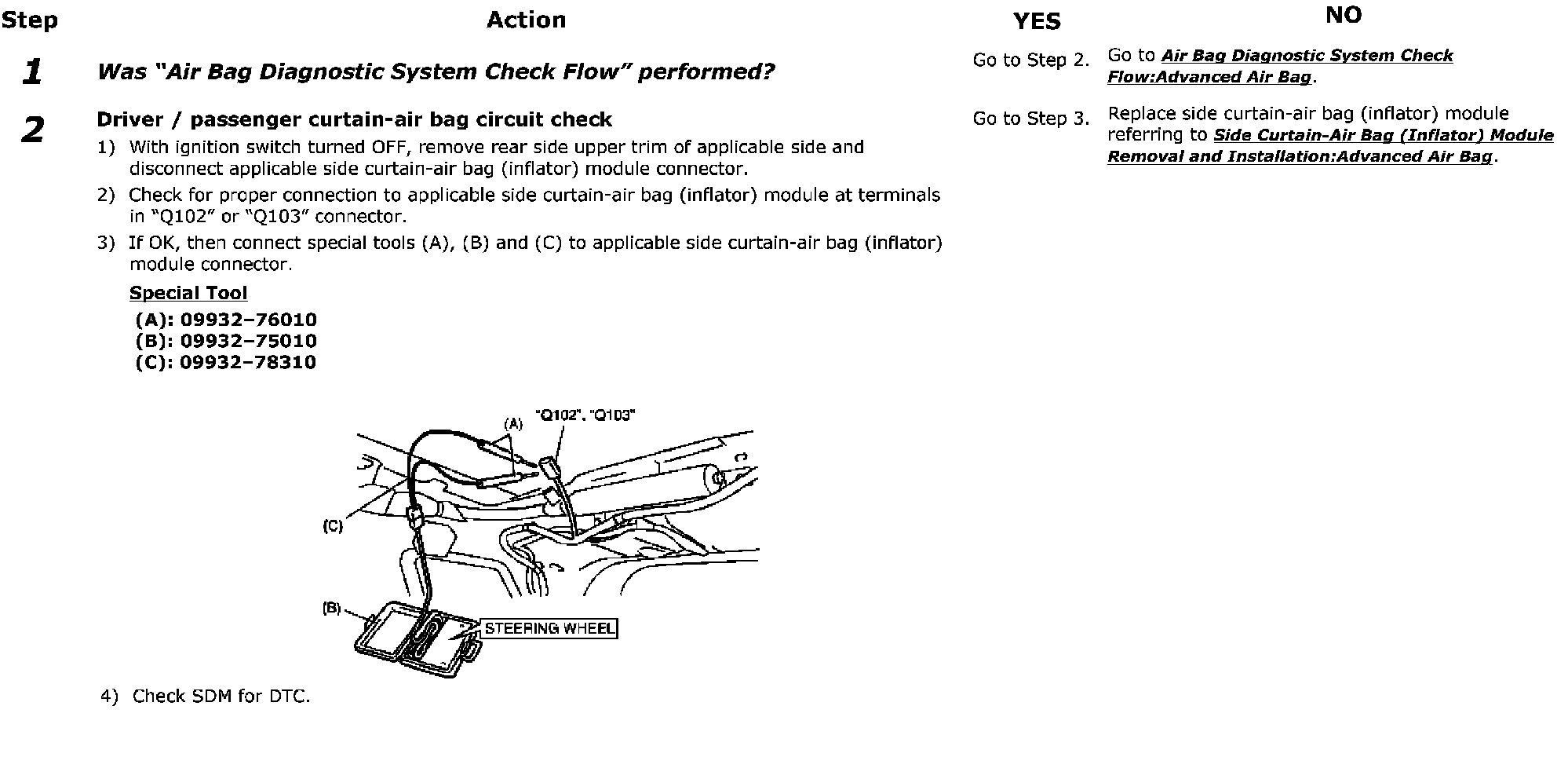

Step 1-2(Continued):

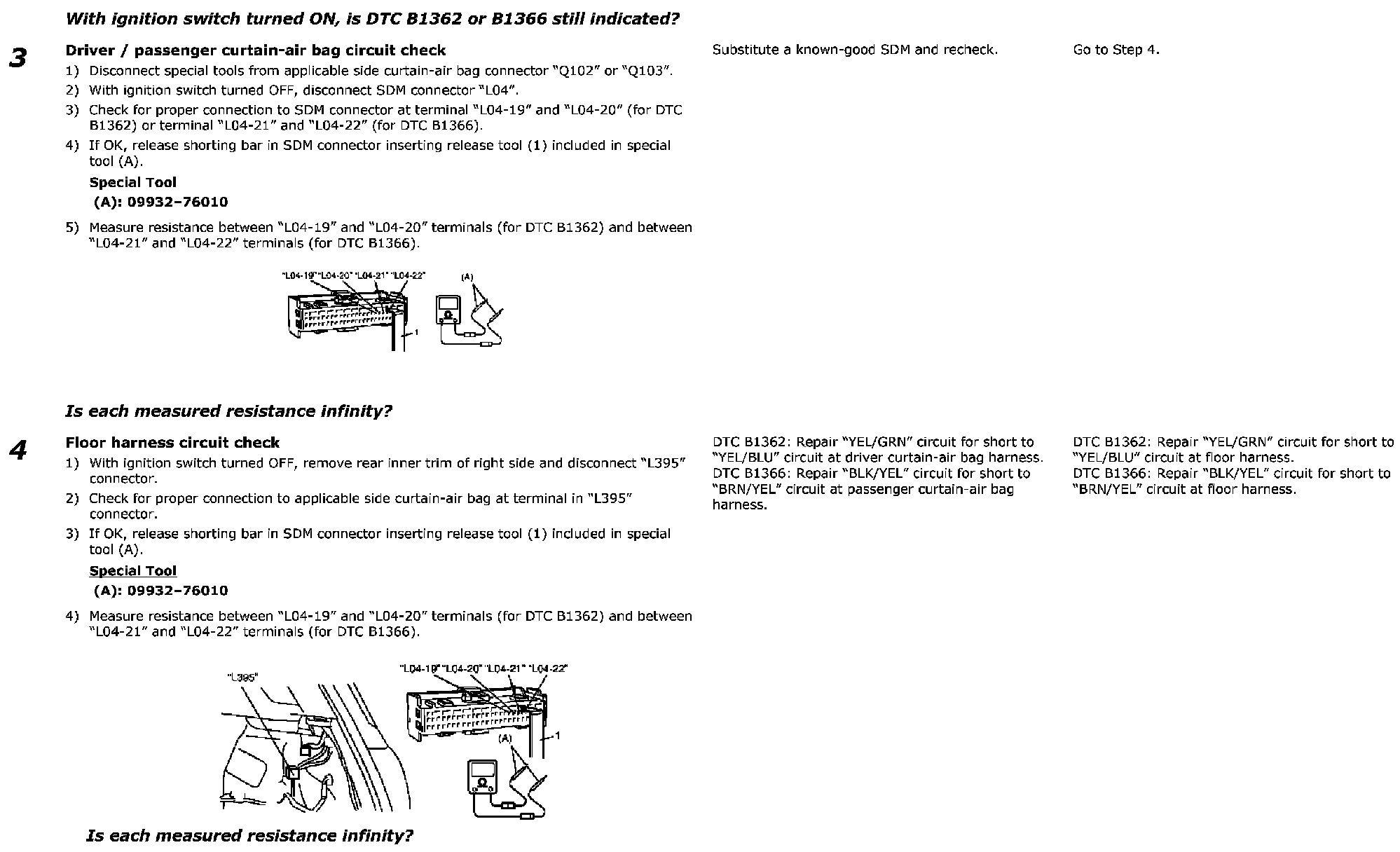

Step 2(Continued)-4:

DTC Troubleshooting

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components, ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
