B1064

DTC B1064 / B1068: Side-Air Bag Circuit Shorted To Power Supply
(DTC B1064: Driver Side-Air Bag Circuit Shorted to Power Supply)
(DTC B1068: Passenger Side-Air Bag Circuit Shorted to Power Supply)

Wiring Diagram:

Wiring Diagram

DTC Detection Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

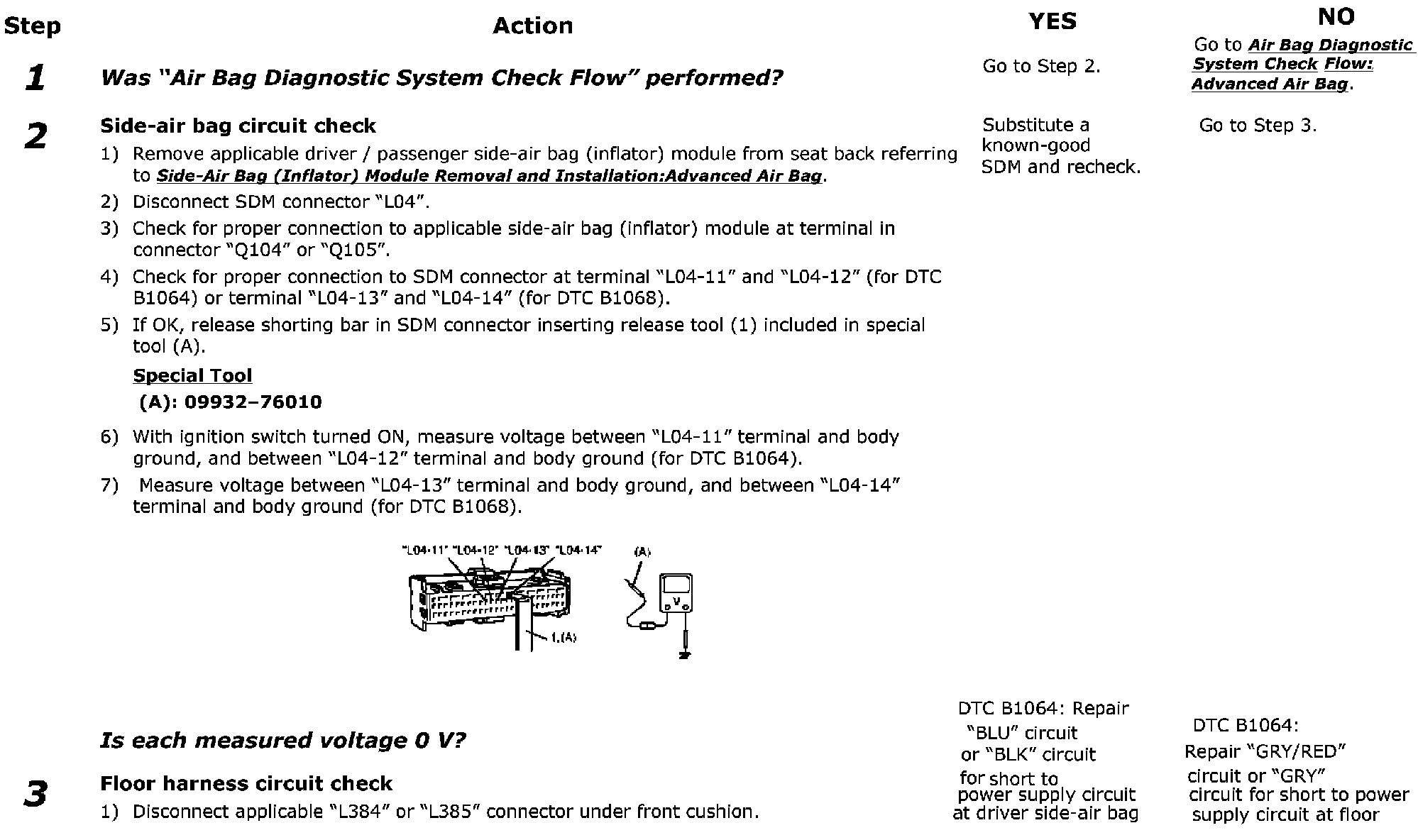

Step 1-3(Continued):

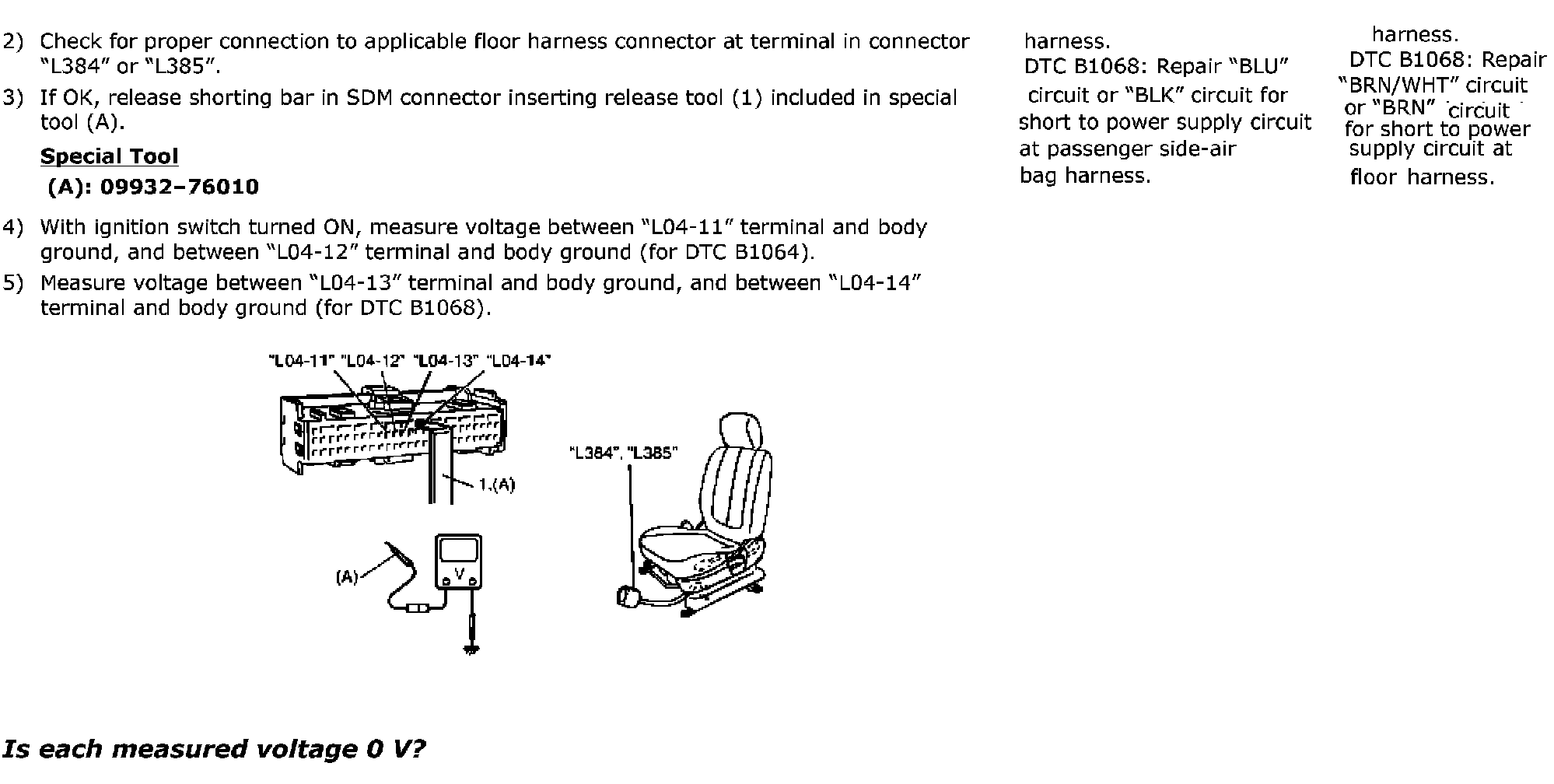

Step 3(Continued):

DTC Troubleshooting

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components, ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
