B1047

DTC B1047: Passenger Air Bag (2nd Stage) Circuit Shorted To Ground




Wiring Diagram




DTC Detecting Condition and Trouble Area

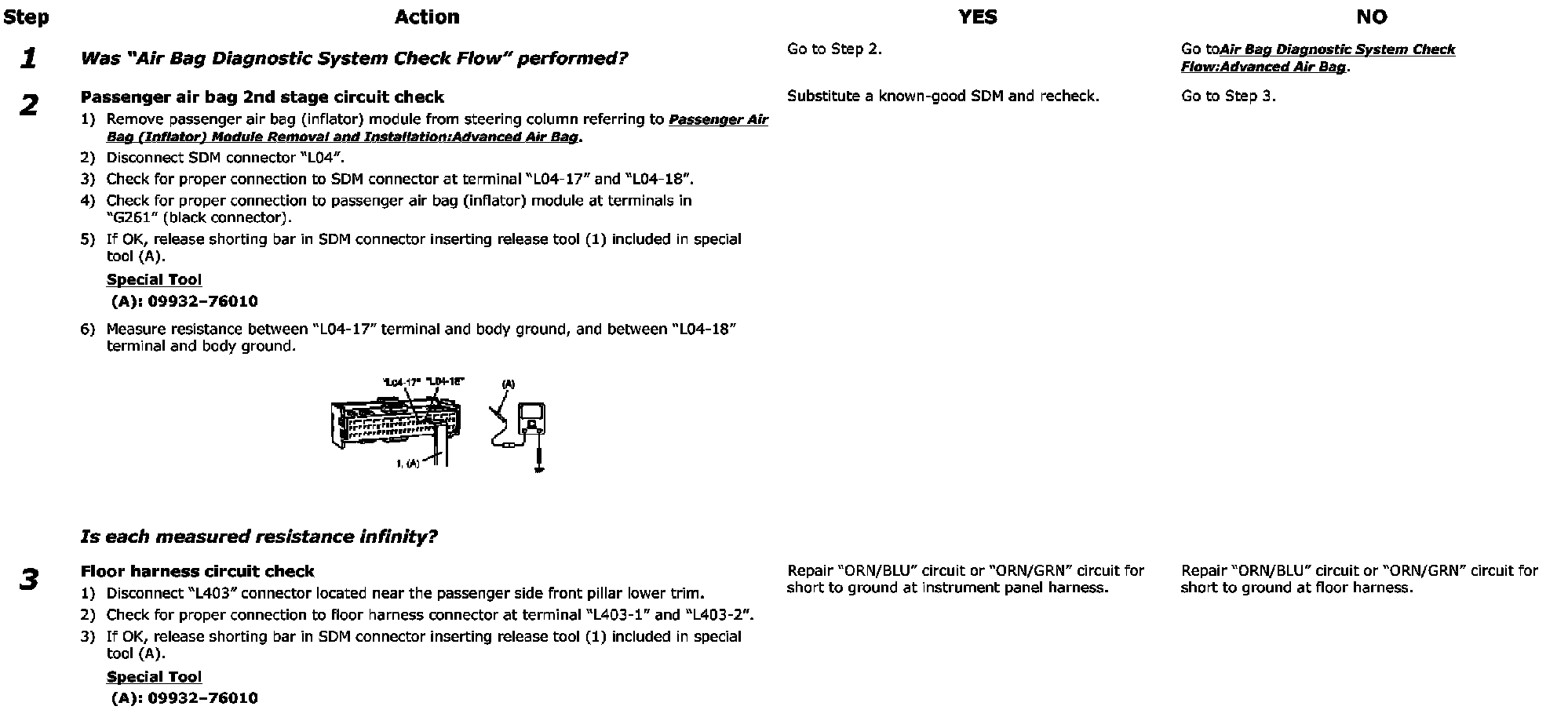

Step 1-3(Continued):

Step 3(Continued):

DTC Troubleshooting

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
