Driver Airbag Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Suzuki Reno and 2006 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the audio control switch. Refer to AUDIO REMOTE CONTROL SWITCH REMOVAL AND INSTALLATION .
  3. Remove the cruise control switch. Refer to CRUISE CONTROL SWITCH REMOVAL AND INSTALLATION .
  4. Remove two driver airbag module mounting bolts and discard them.
  5. Remove the connectors from the driver airbag module.
  6. Remove the driver airbag module.

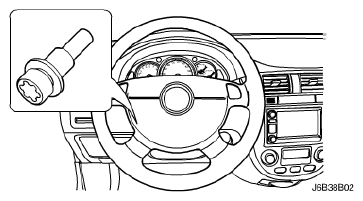

    Fig 1: Airbag Module Bolt
    G04717989Courtesy of SUZUKI OF AMERICA CORP.
