Windshield Washer Hoses Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Install the washer hose.
Connect the washer hose to the washer pump.

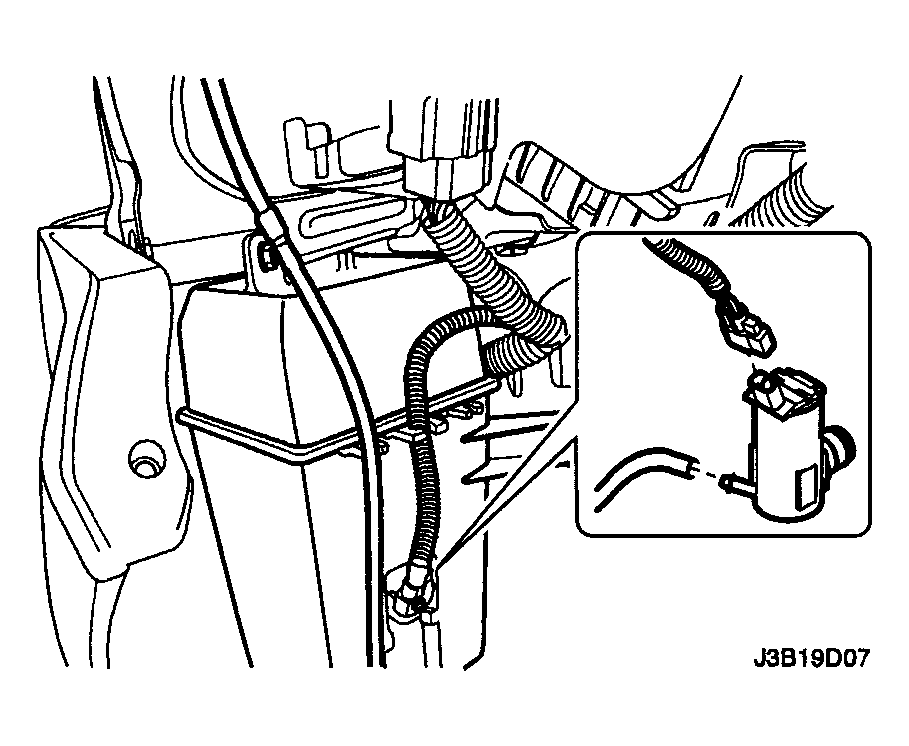

Fig 1: Connecting Washer Hose To Washer Reservoir
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
Install the front wheel well splash shield with the bolts and the screws.
Tighten

Tighten the wheel well splash shield bolts to 1.5 N.m (13 lb-in).
Install the front left wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
Connect the windshield washer hose to the washer nozzles.

Fig 2: Connecting Windshield Washer Hose To Washer Nozzles
Courtesy of SUZUKI OF AMERICA CORP.
