Tightening Torque Specifications
WARNING: This page is about a different car, the 2007 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Fastening part | Tightening torque | ||
|---|---|---|---|
| N.m | kgf-m | lb-ft | |
| Hood latch bolt | 10 | 1.0 | 7.5 |

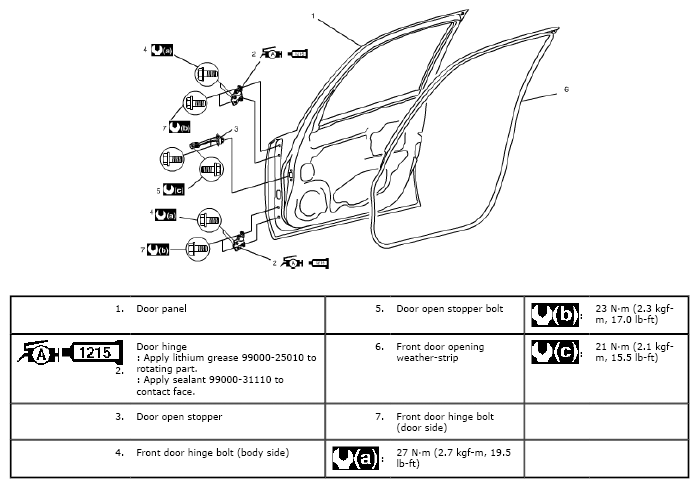

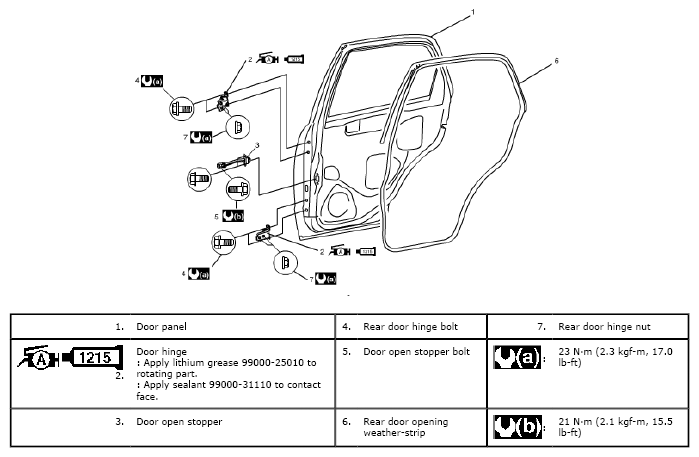

| Door hinge mounting bolt (body side) | 27 | 2.7 | 19.5 |
| Door hinge mounting bolt (door side) | 23 | 2.3 | 17.0 |
| Door open stopper bolt | 21 | 2.1 | 15.5 |

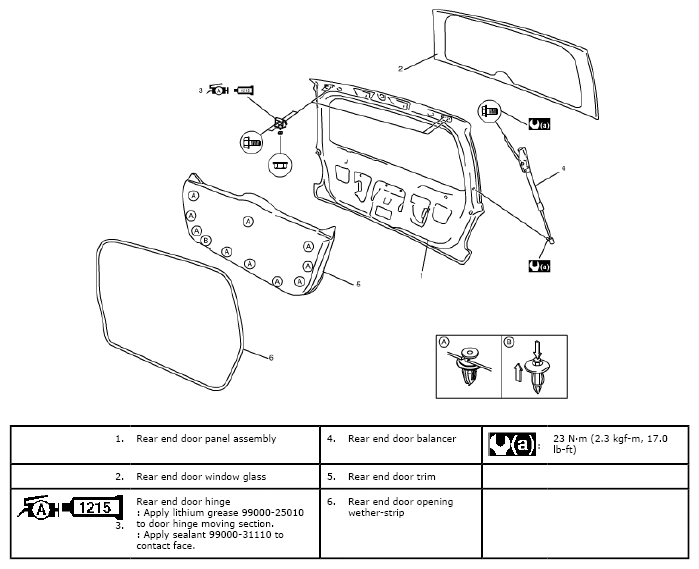

| Rear end door balancer bolt | 23 | 2.3 | 17.0 |
Reference:
For the tightening torque of fastener not specified in this article, refer to FASTENERS INFORMATION .
