Tail Light Relay, Headlight Relay, Front Fog Light Relay Inspection

WARNING: This page is about a different car, the 2007 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove tail light relay (1), headlight low beam relay (2), headlight high beam relay (3) and/or front fog light relay (4).

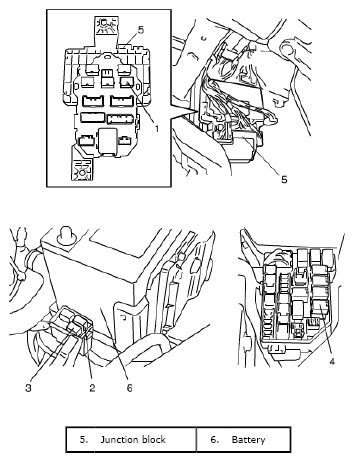

Fig 1: Inspecting Tail Light Relay, Headlight Relay, Front Fog Light Relay
Courtesy of SUZUKI OF AMERICA CORP.
Check that there is no continuity between terminal "3" and "4". If there is continuity, replace relay.
Connect battery positive (+) terminal to terminal "2" of relay.
Connect battery negative (-) terminal to terminal "1" of relay.
Check continuity between terminal "3" and "4". If there is no continuity when relay is connected to the battery, replace relay.

Fig 2: Inspecting Tail Light Relay, Headlight Relay, Front Fog Light Relay
Courtesy of SUZUKI OF AMERICA CORP.
