Headlight Housing Removal and Installation: Removal

WARNING: This page is about a different car, the 2007 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove front bumper. Refer to FRONT BUMPER AND REAR BUMPER COMPONENTS .
  3. Remove headlight mounting bolts.
  4. Detach headlight housing (1) from vehicle.
  5. Disconnect couplers (2) from headlight housing (1).

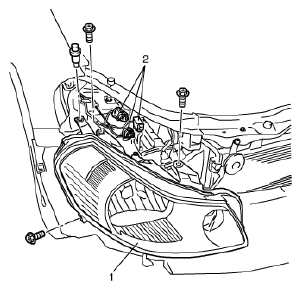

    Fig 1: Identifying Headlight Housing Components (1 Of 2)
    G04848888Courtesy of SUZUKI OF AMERICA CORP.
