Headlight Bulb Replacement
WARNING: This page is about a different car, the 2007 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- To avoid danger of being burned, don't touch when the bulb is hot.
- Don't touch glass surface of bulb, to avoid deteriorate as the case may be unclear when bulb light on at dirty condition.
- Disconnect negative (-) cable at battery.
- Disconnect coupler from bulb.

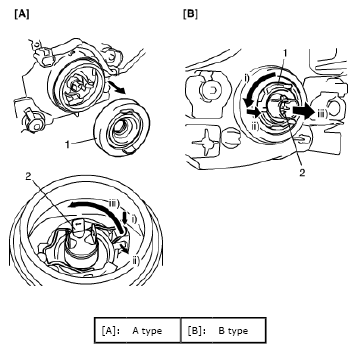

- Remove socket cover (1).
- Replace bulb (2) and assemble all removed parts.
