Engine Mountings Components

WARNING: This page is about a different car, the 2007 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

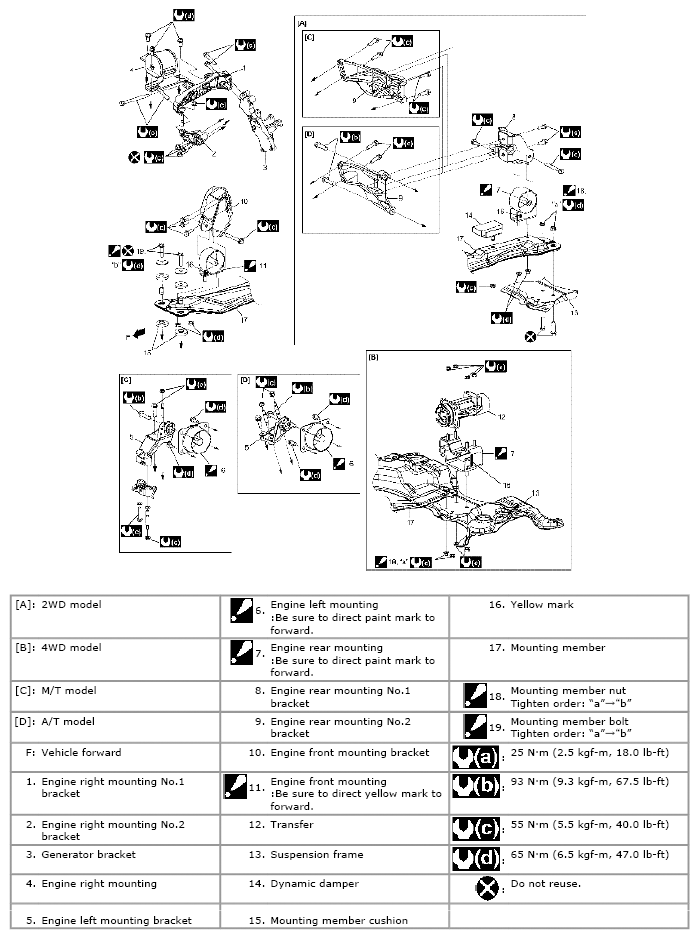

Fig 1: Engine Mountings Replacement Components With Torque Specifications
G04846772Courtesy of SUZUKI OF AMERICA CORP.
