V5 Compressor Components

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

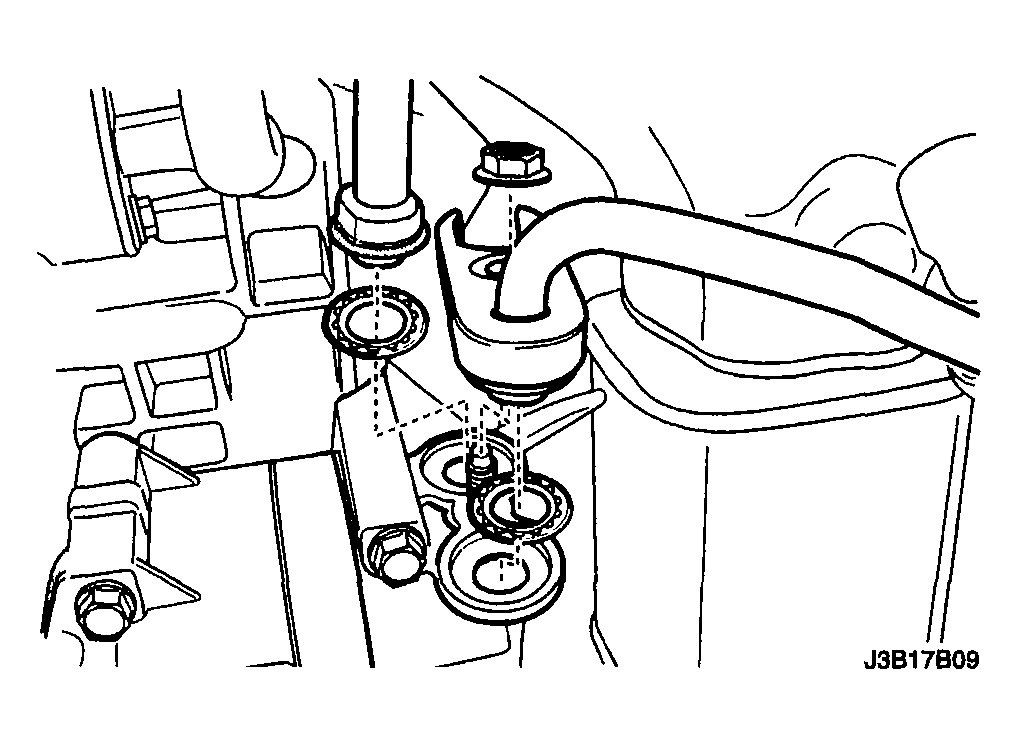

Fig 1: Installing Discharge Hose Block-To Compressor
G04104146Courtesy of SUZUKI OF AMERICA CORP.

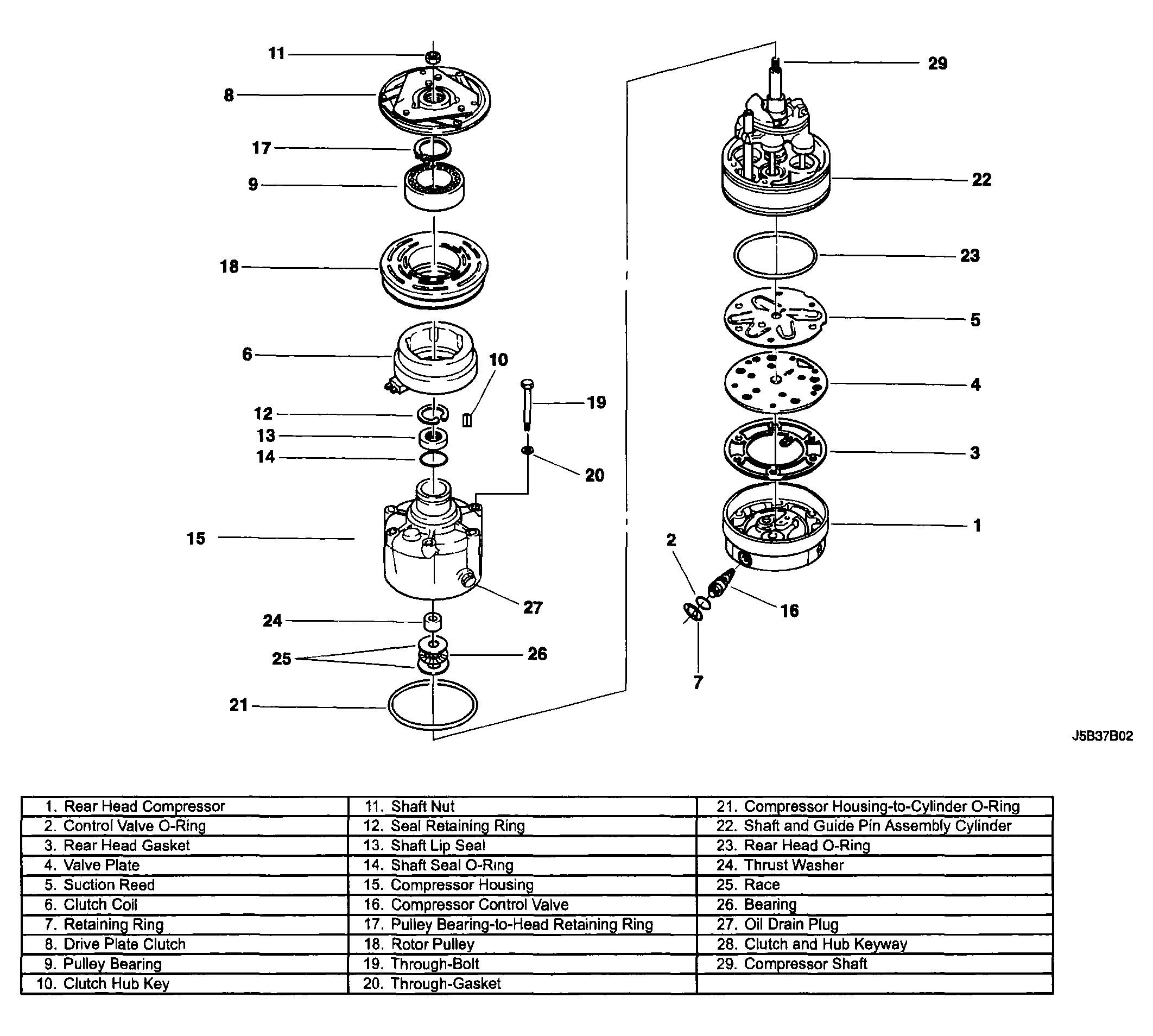

Fig 2: Exploded View Of V5 Compressor
G04104147Courtesy of SUZUKI OF AMERICA CORP.
