EBCM Assembly Removal and Installation: Installation

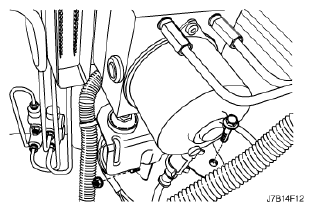

- Insert the EBCM assembly into its mounting bracket and install the nuts.
Tighten:
Tighten the EBCM assembly mounting nuts to 15 N.m (11 lb-ft).
- Remove the screw plugs and install all of the hydraulic brake pipes.
Tighten:
Tighten the brake pipe nuts to 22 N.m (16 lb-ft).
- Connect the wiring harness connector J1.
- Connect the negative battery cable.
- Bleed the hydraulic system. Refer to MANUAL BLEEDING THE BRAKES .
