Parking Lock System Disassembly and Assembly

Parking Lock System Disassembly and Assembly

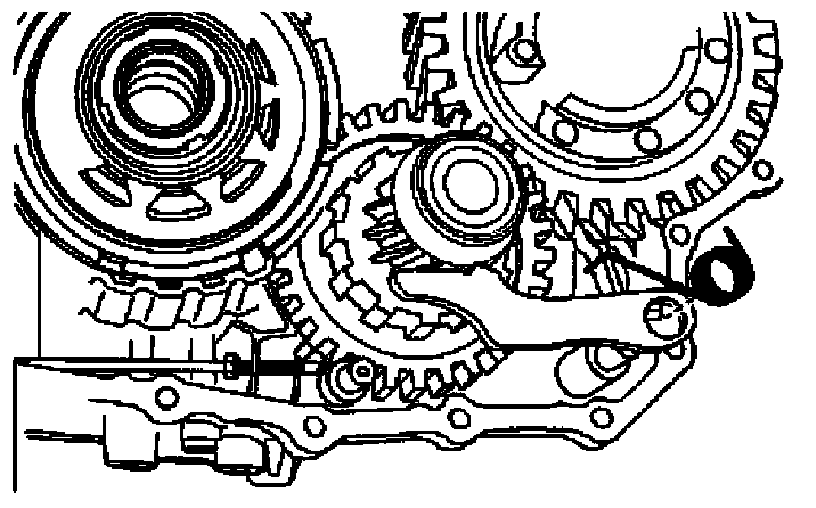

1. Remove the parking lock assembly.
^ Parking lock system is consist of parking pawl, leg spring, support bolt.

2. Installation should follow the removal procedure in the reverse order.
