Electrical Diagrams

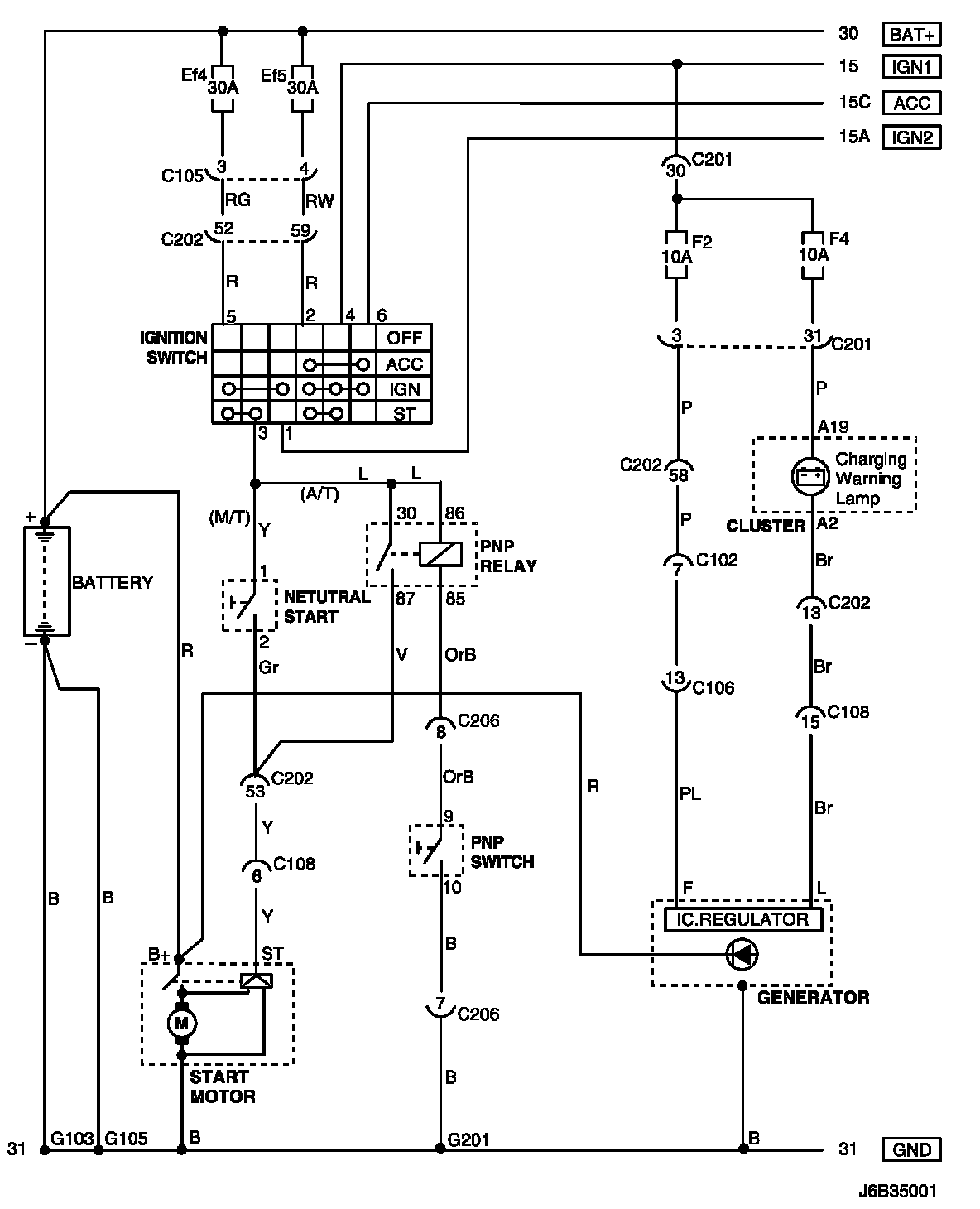

Battery, Ignition Switch, Starter Motor, Generator and PNP Switch Circuit Wiring Diagram:
WIRING DIAGRAM
C102 - G201:
CONNECTOR INFORMATION

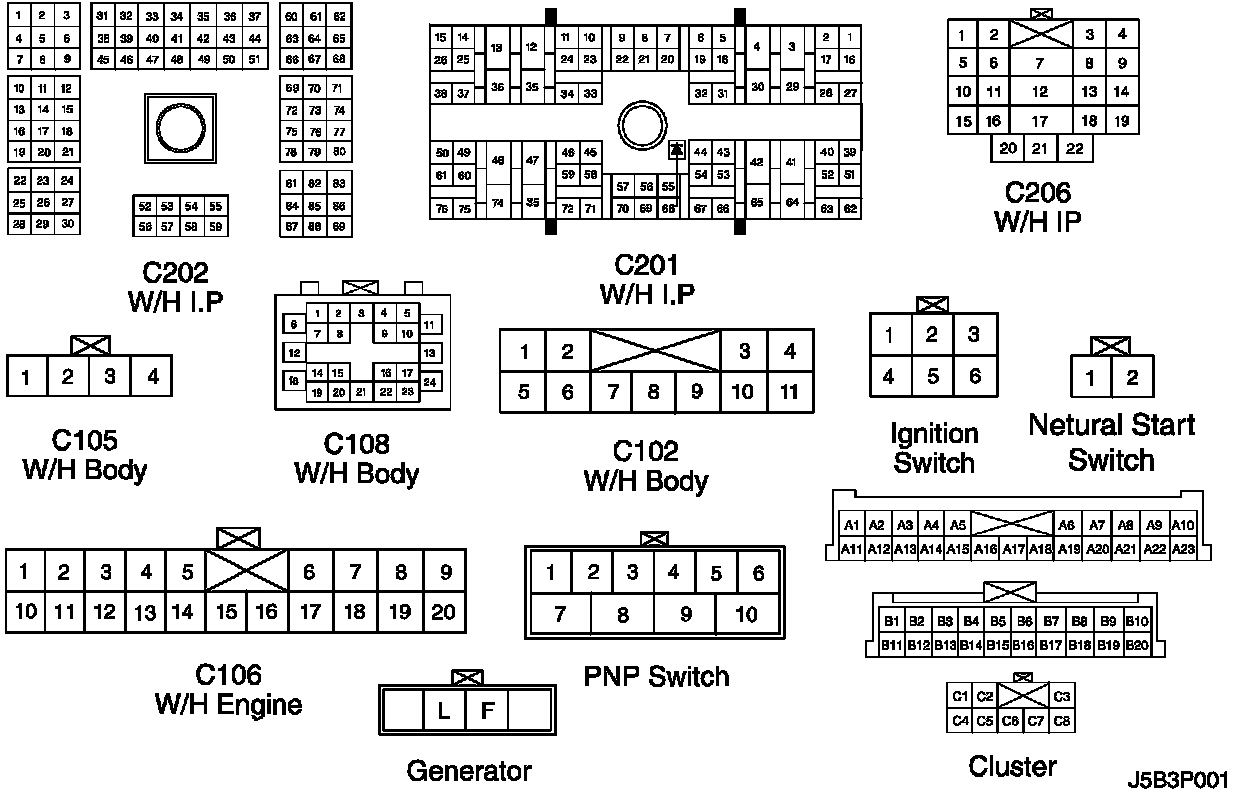

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

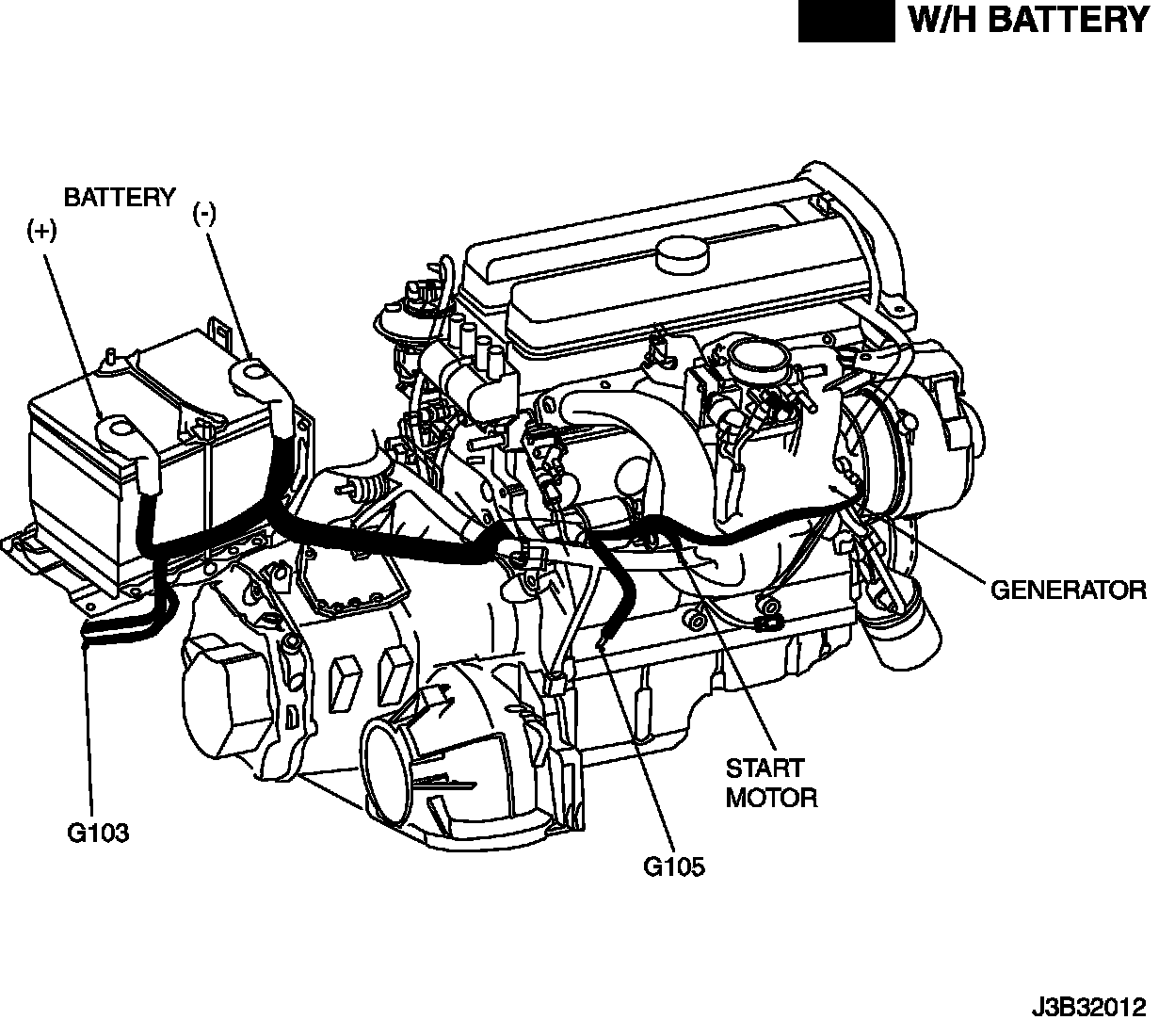

W/H Battery:

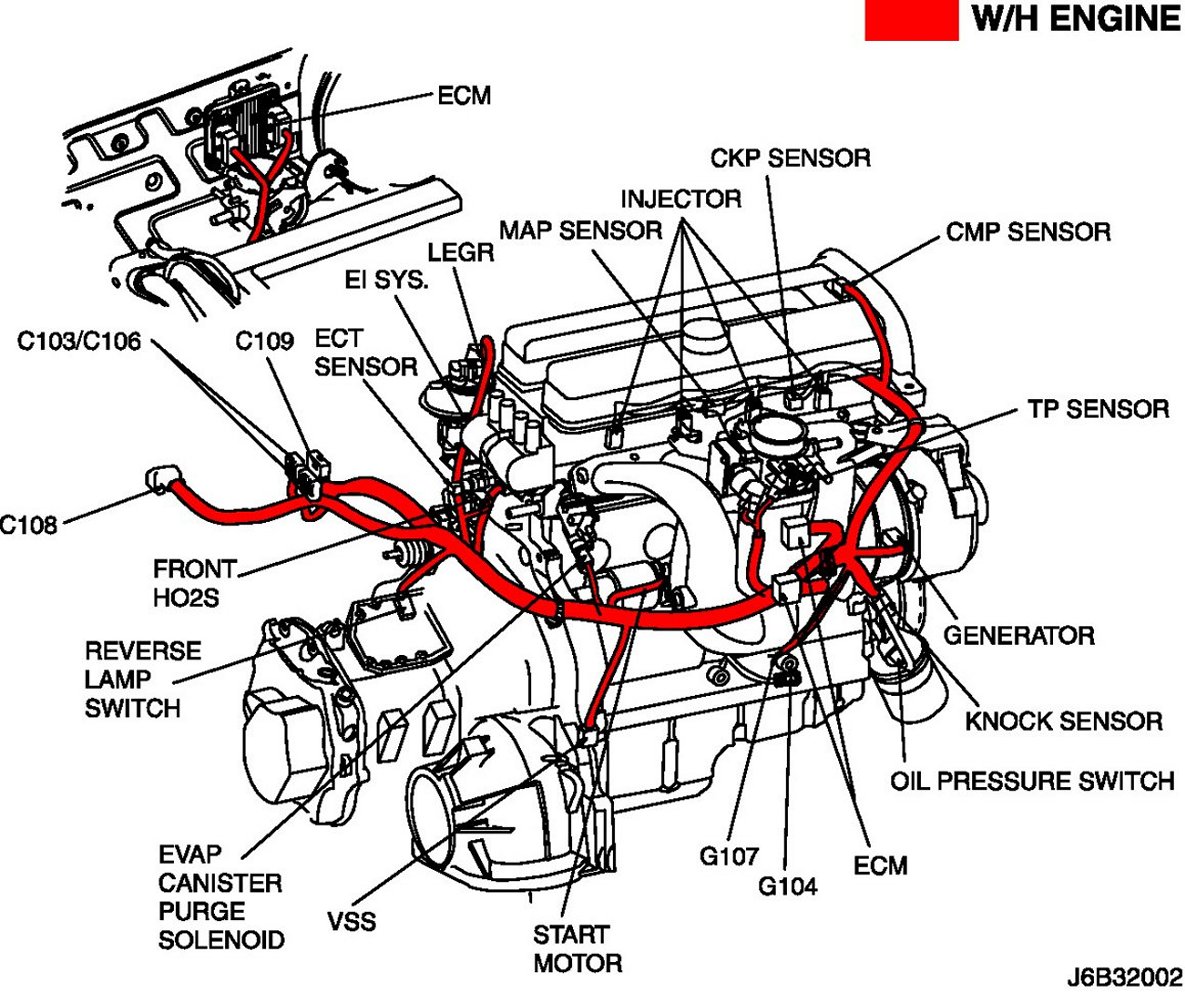

W/H Engine:
POSITION OF CONNECTORS AND GROUNDS
