Cluster, Fuel Pressure Sensor, Fuel Pump and TCM Circuit

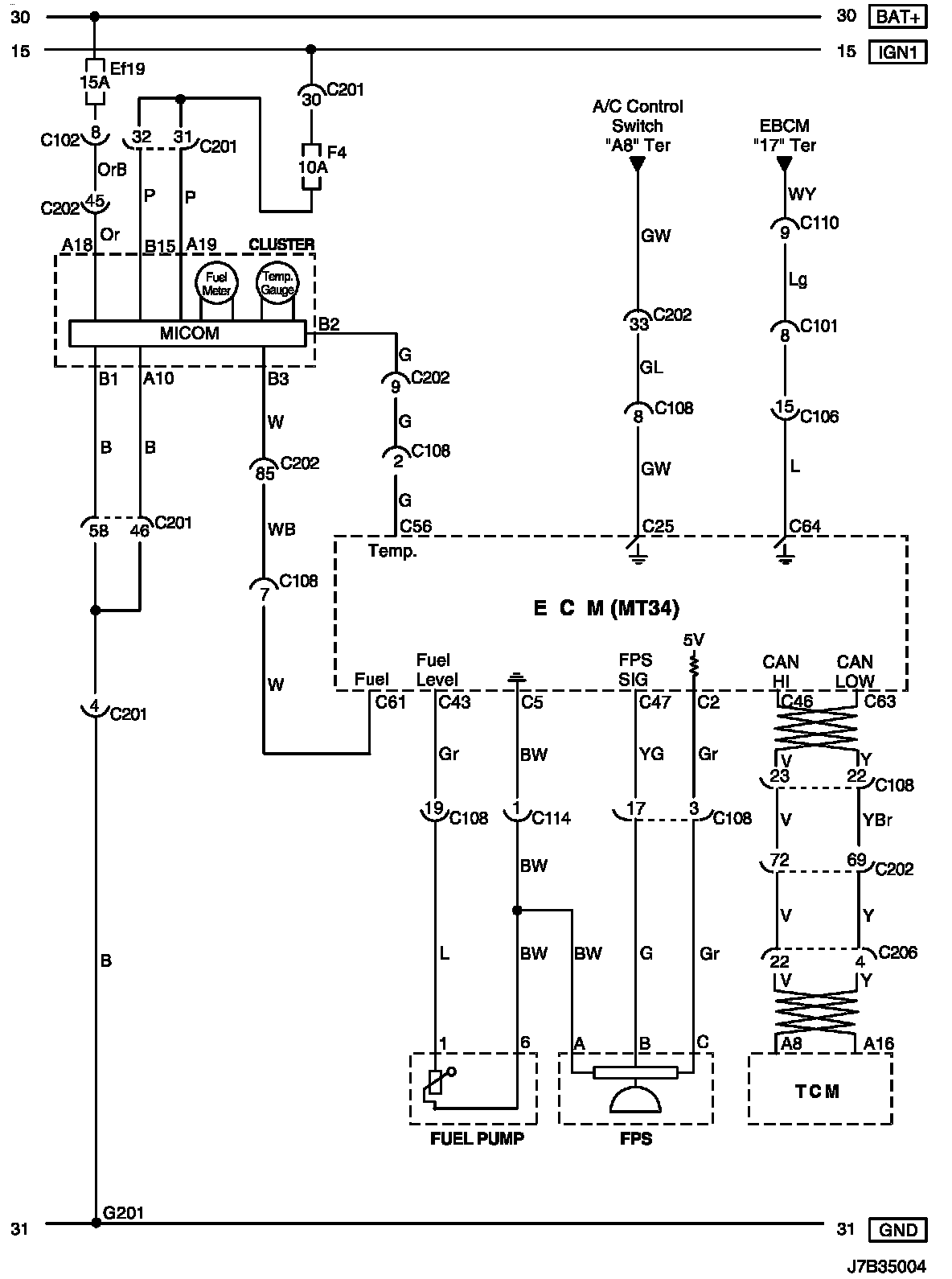

Cluster, Fuel Pressure Sensor, Fuel Pump and TCM Circuit Wiring Diagram:
WIRING DIAGRAM
C101 - G201:
CONNECTOR INFORMATION

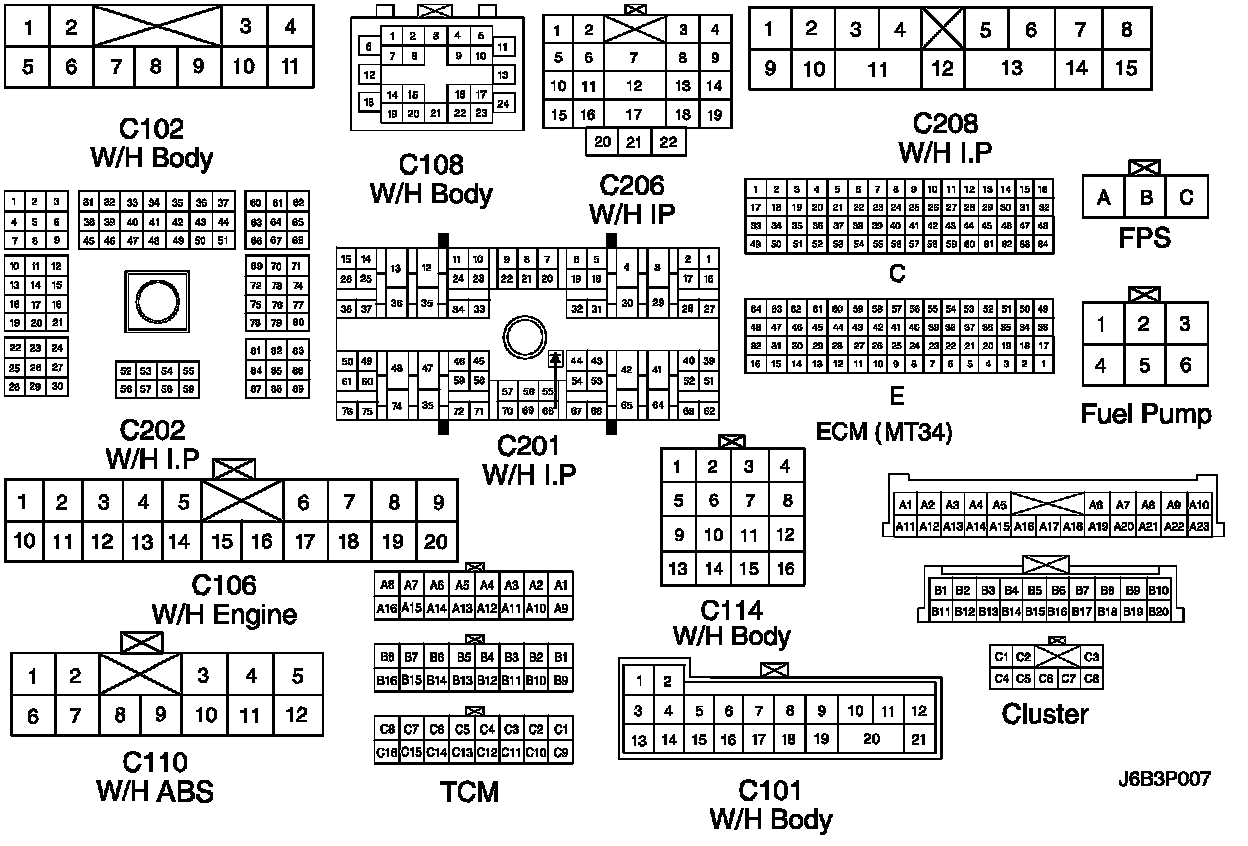

Connector Identification Symbol and Pin Number:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

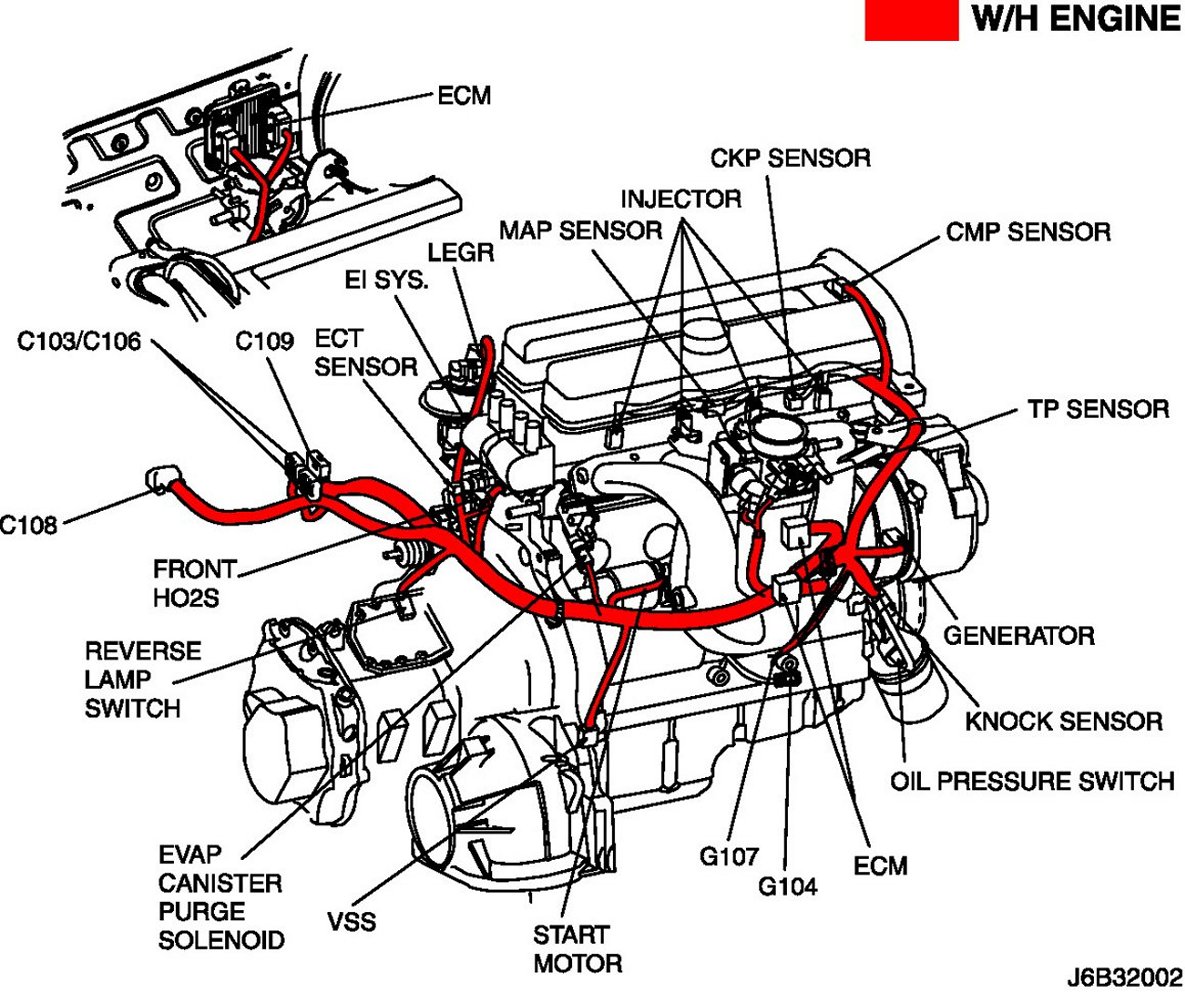

W/H Engine:

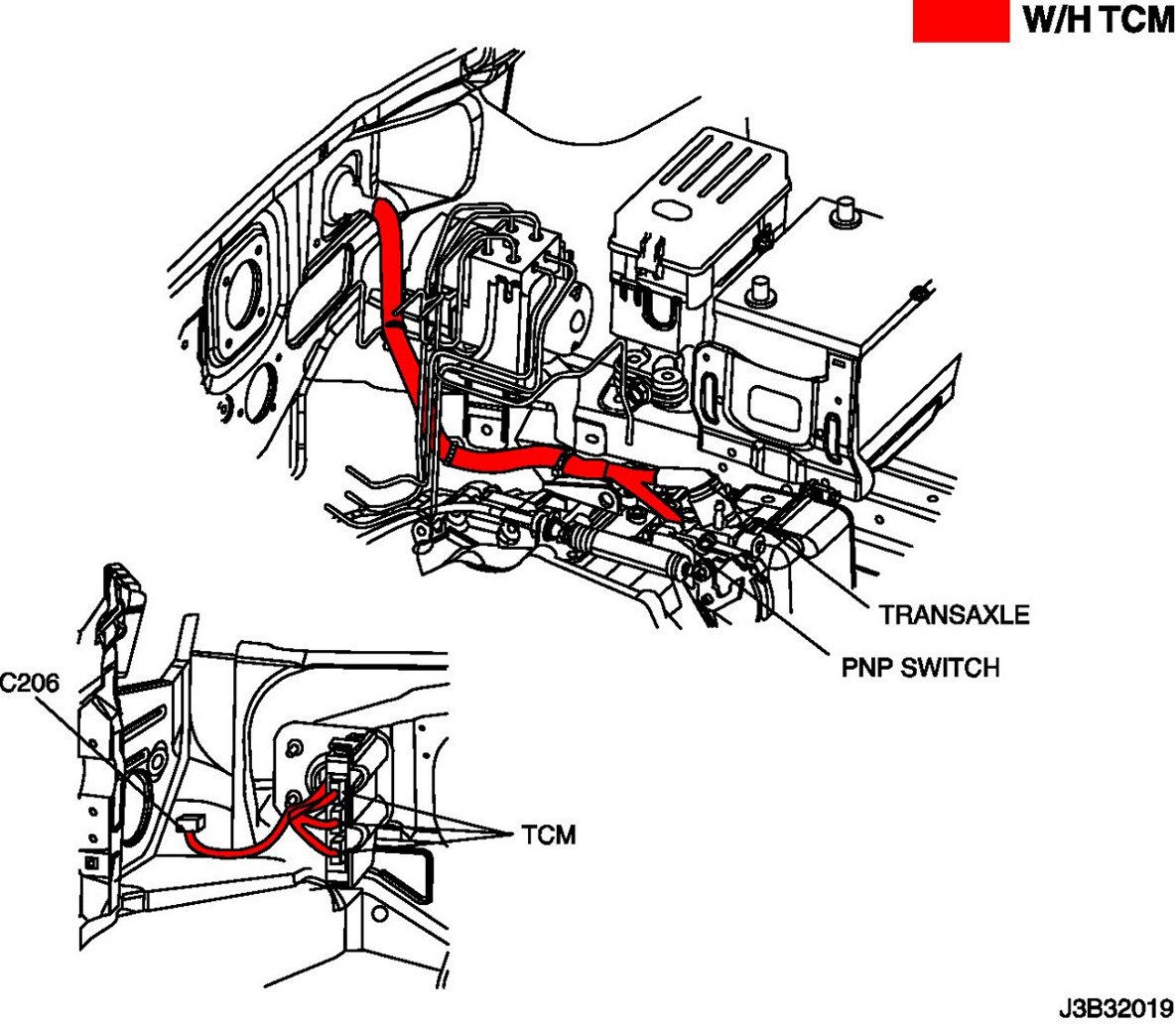

W/H TCM:
POSITION OF CONNECTORS AND GROUNDS
