Front Side Marker Removal and Installation (For NOTCHBACK and STATION WAGON Model)

Front Side Marker Removal and Installation (For NOTCHBACK and STATION WAGON Model)

Removal
1. Disconnect the negative battery cable.
2. Remove the headlamp.
3. Disconnect the electrical connector.

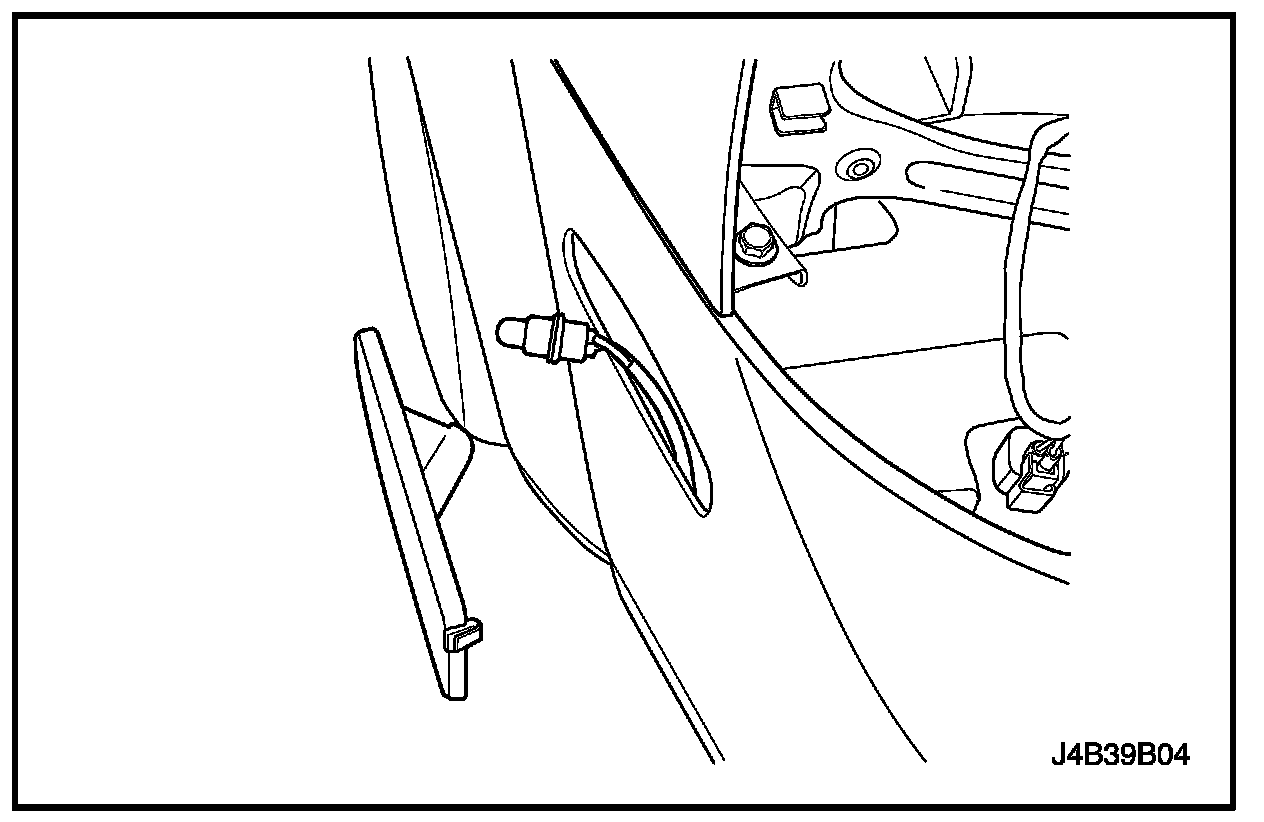

4. Remove the side marker lamp.





Installation
1. Connect the electrical connector.
2. Install the side marker lamp.
3. Install the headlamp.
4. Connect the negative battery cable.
