Symptom Related Diagnostic Procedures

Cooling System Diagnosis

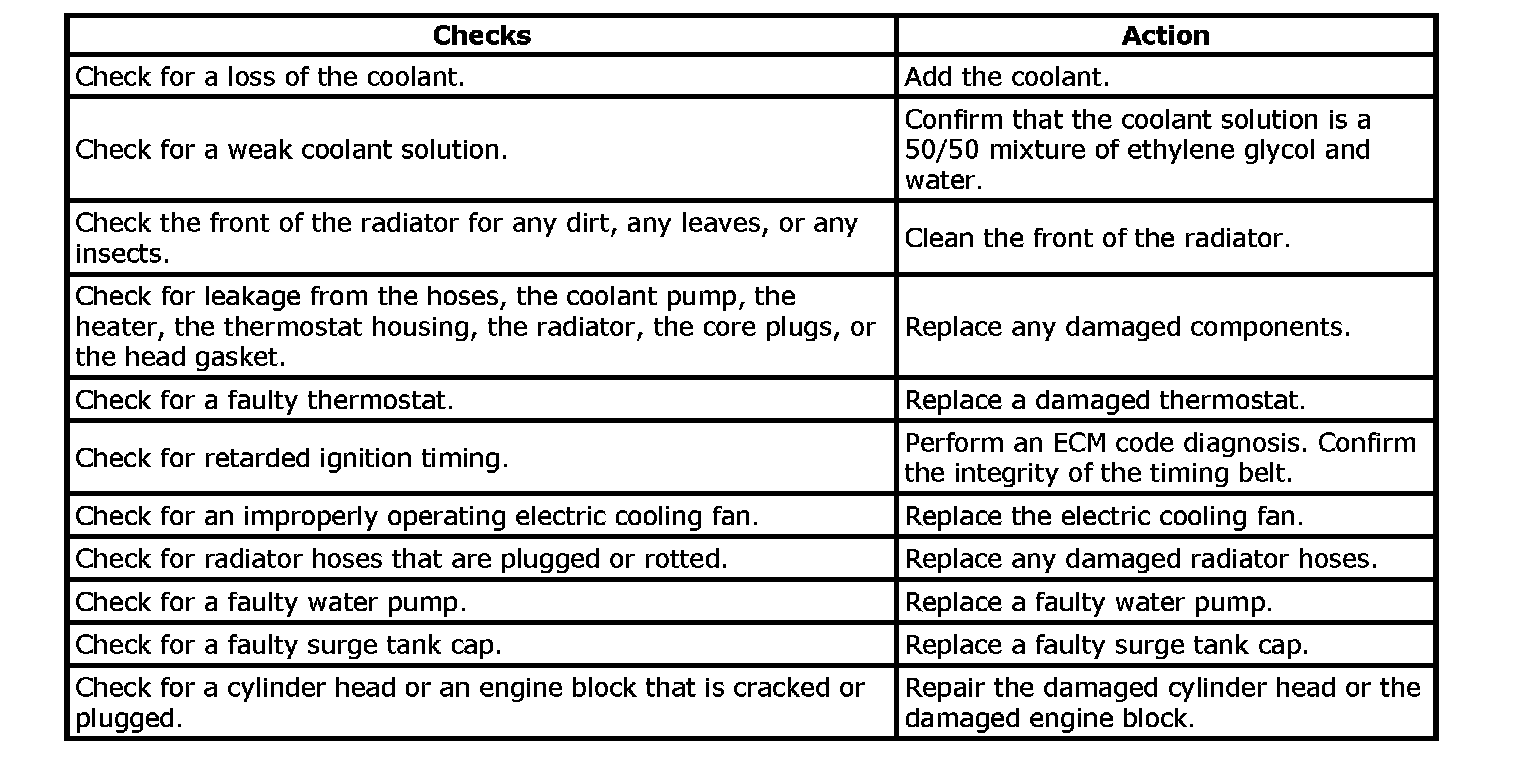

Engine Overheats

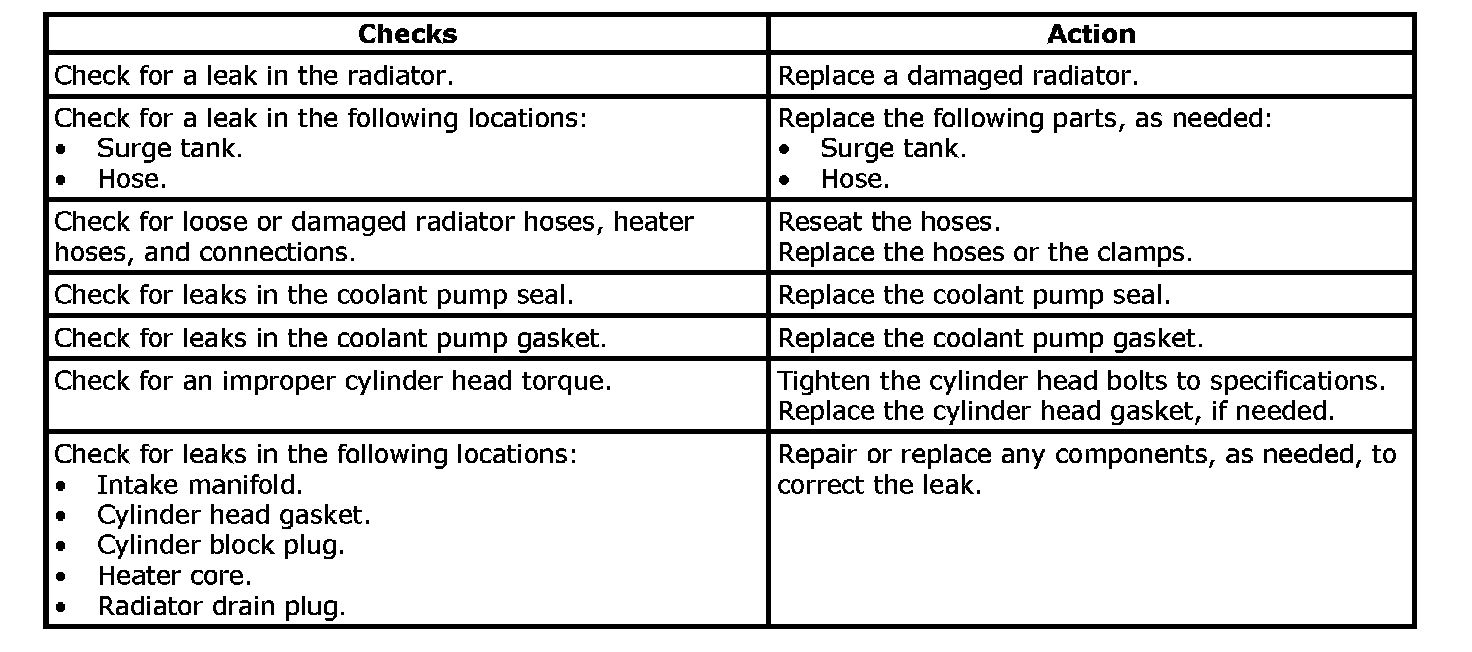

Loss of Coolant

Part 1:




Part 2:





Engine Fails to Reach Normal Operating Temperature or Cool Air from the Heater
