Only Front Power Window Circuit

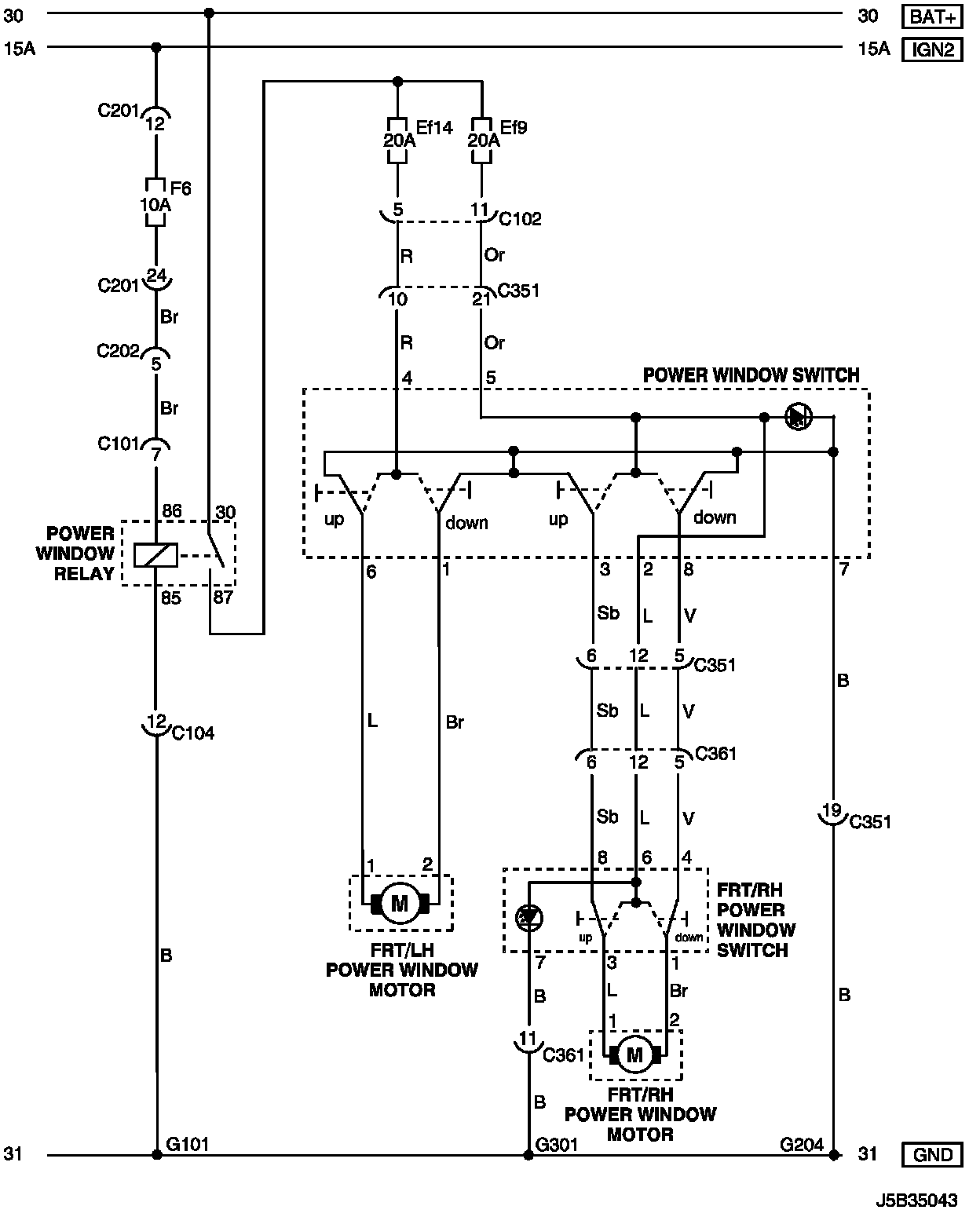

Only Front Power Window Circuit Wiring Diagram:
WIRING DIAGRAM
C101 - G301:
CONNECTOR INFORMATION

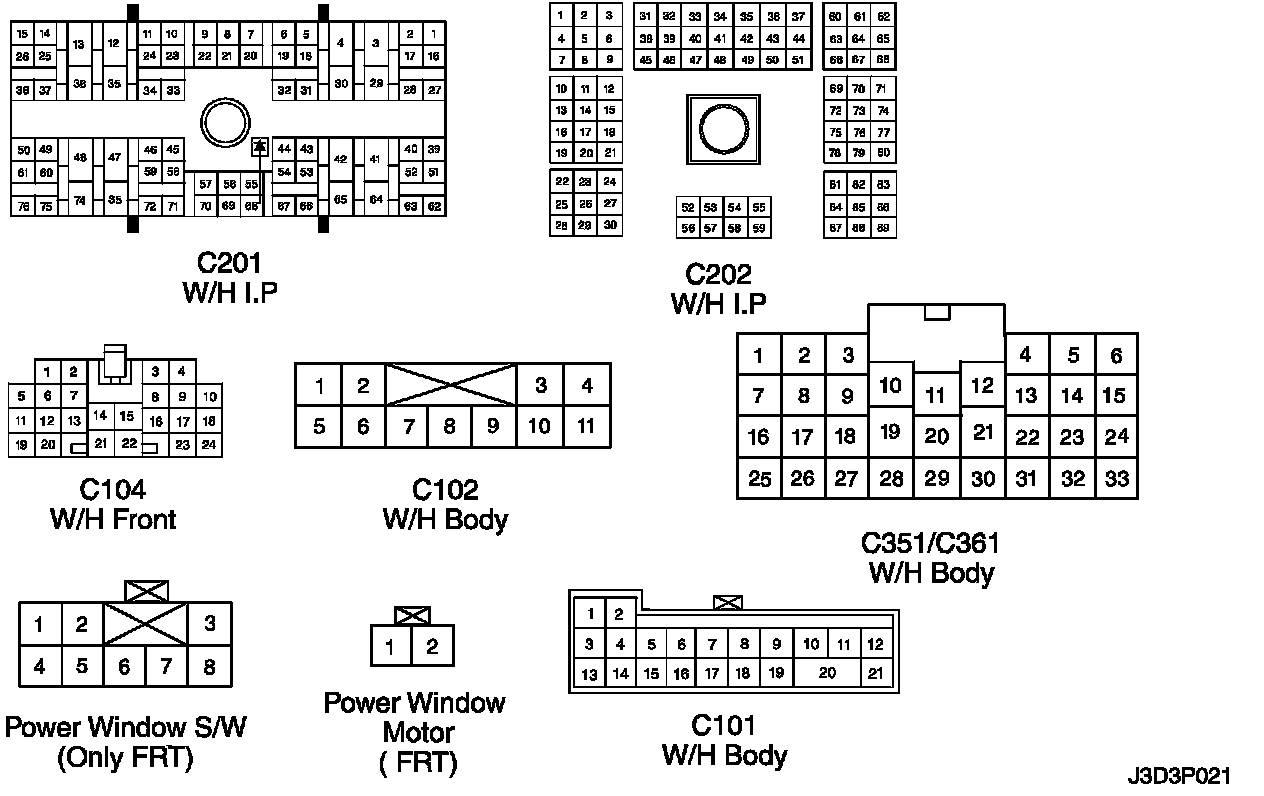

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

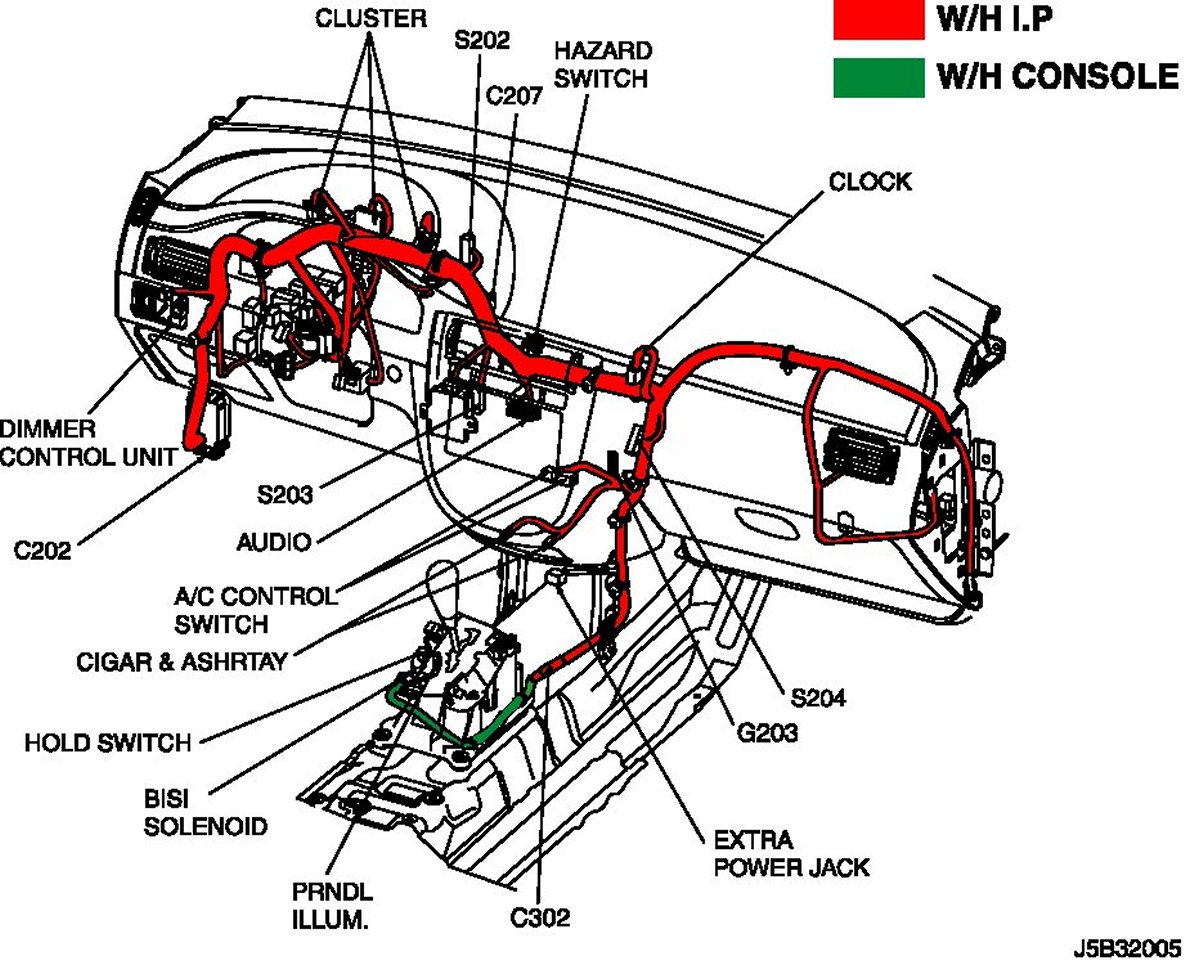

W/H Instrument Panel:

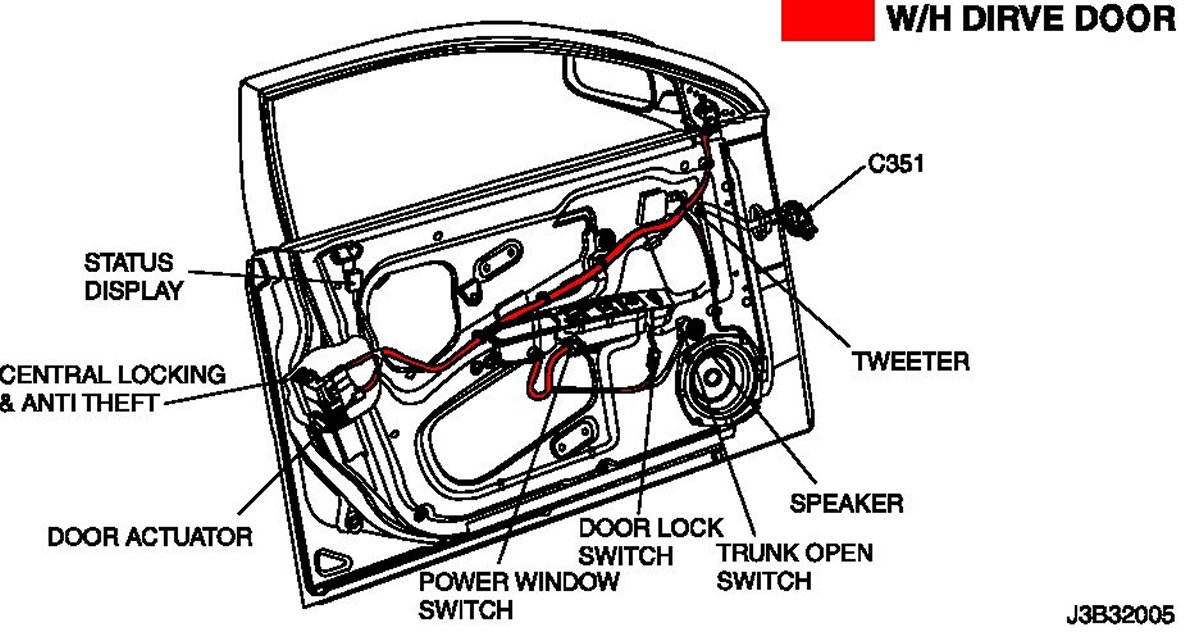

W/H Driver Door:
POSITION OF CONNECTORS AND GROUNDS
