For Hatchback Model
Trunk/Tailgate Open Switch, Trunk Latch Switch, Trunk Room Lamp and Horn Circuit Wiring Diagram (For HATCHBACK Model):
WIRING DIAGRAM
C101 - G402:
CONNECTOR INFORMATION

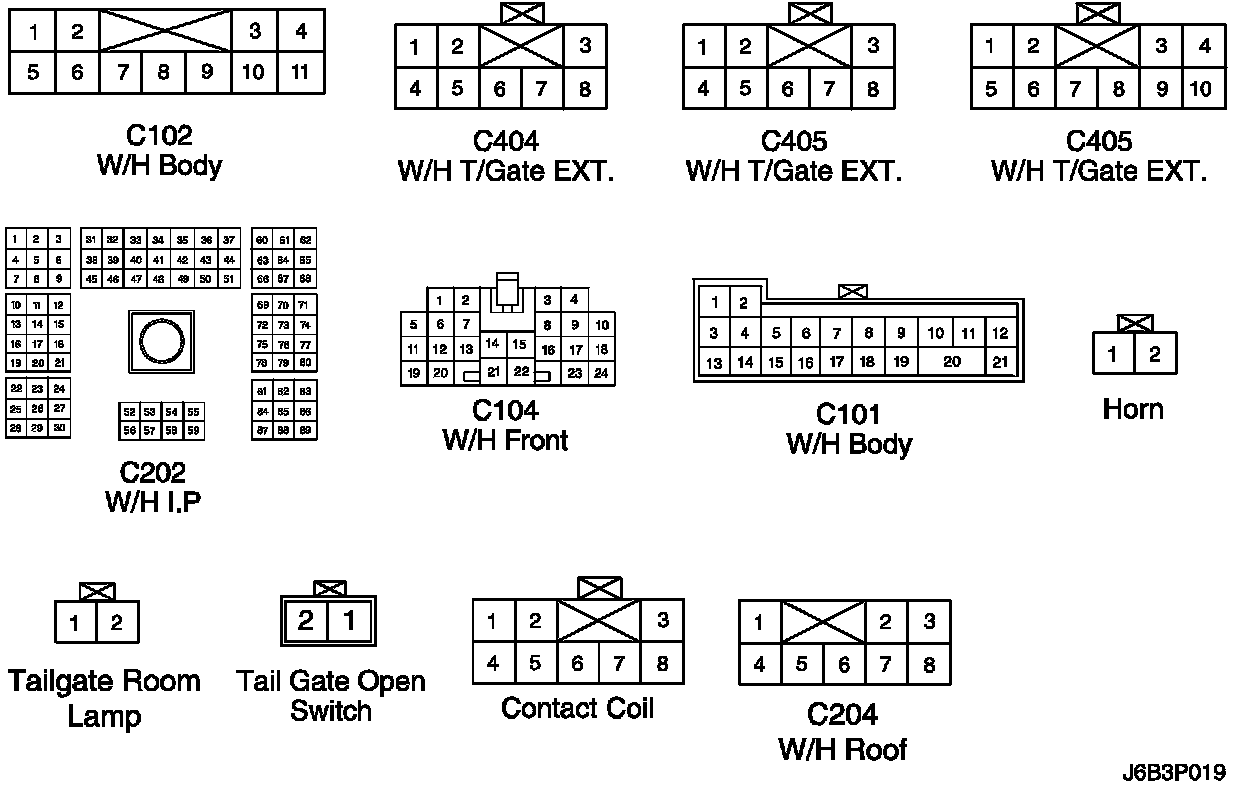

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

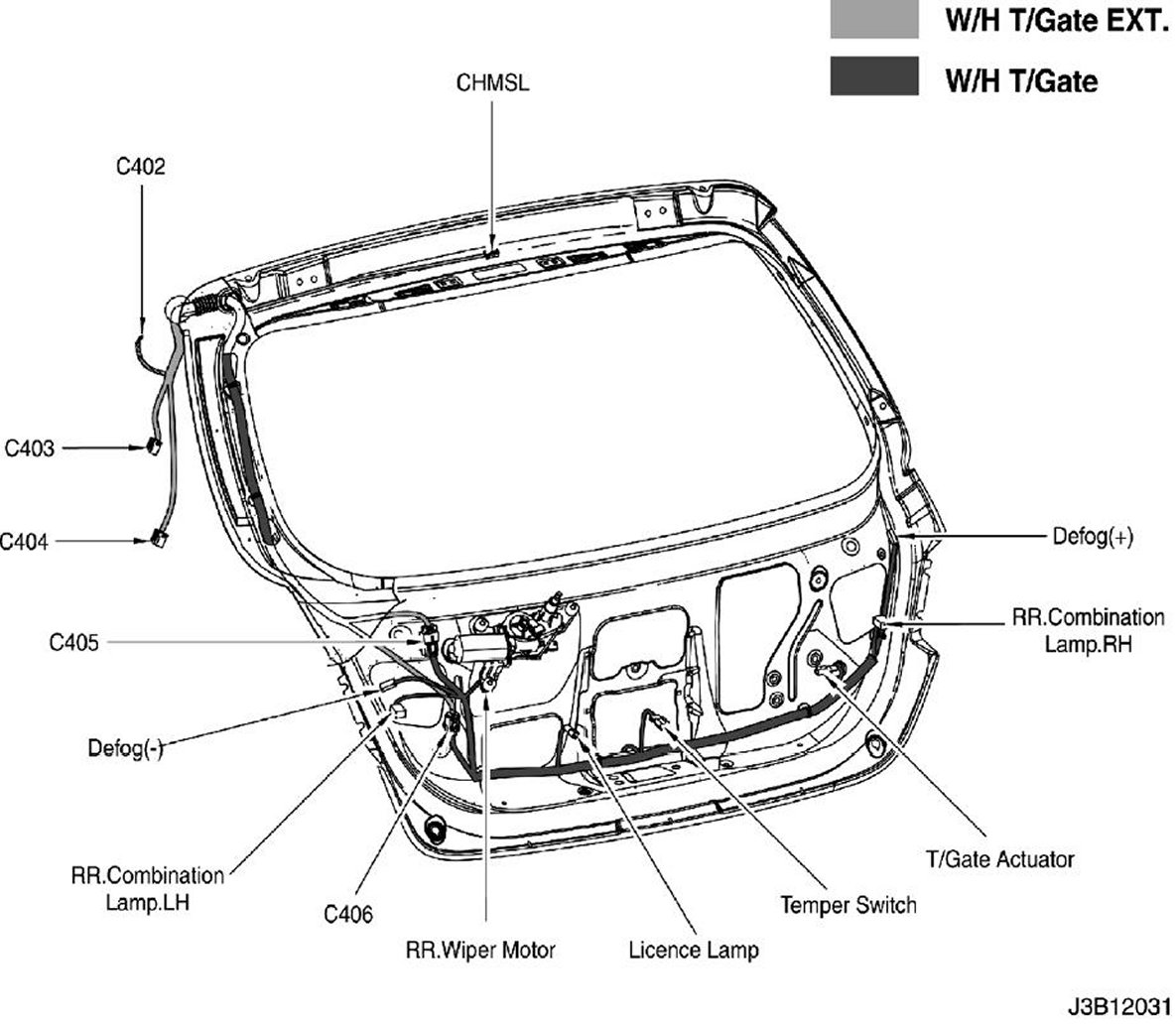

W/H Tail Gate:

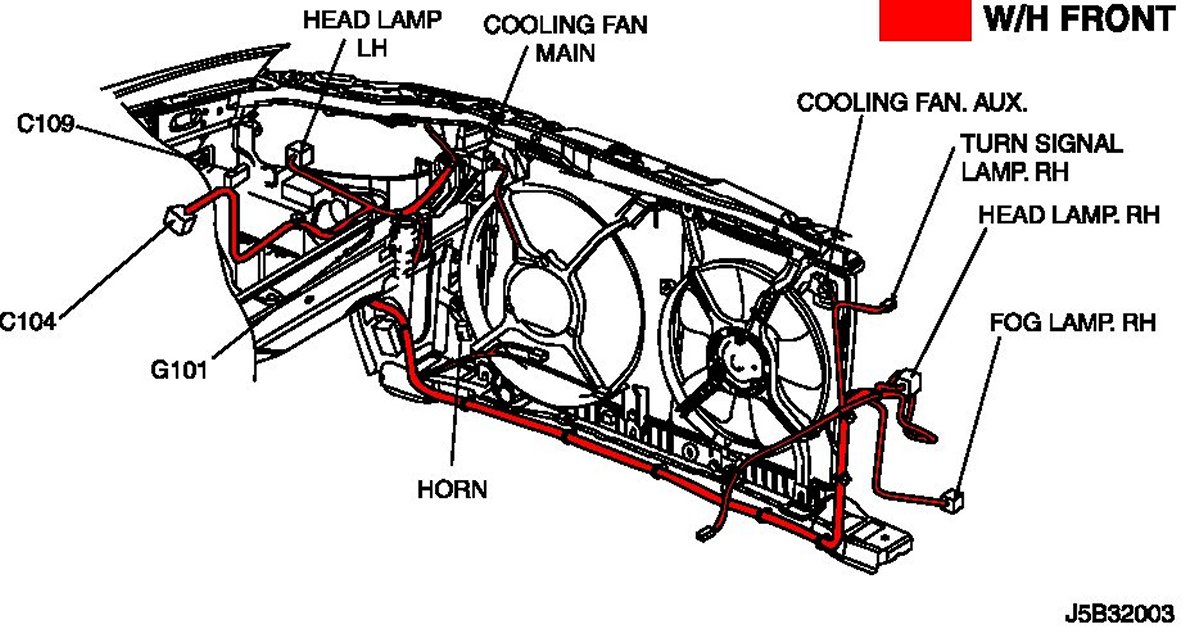

W/H Front:

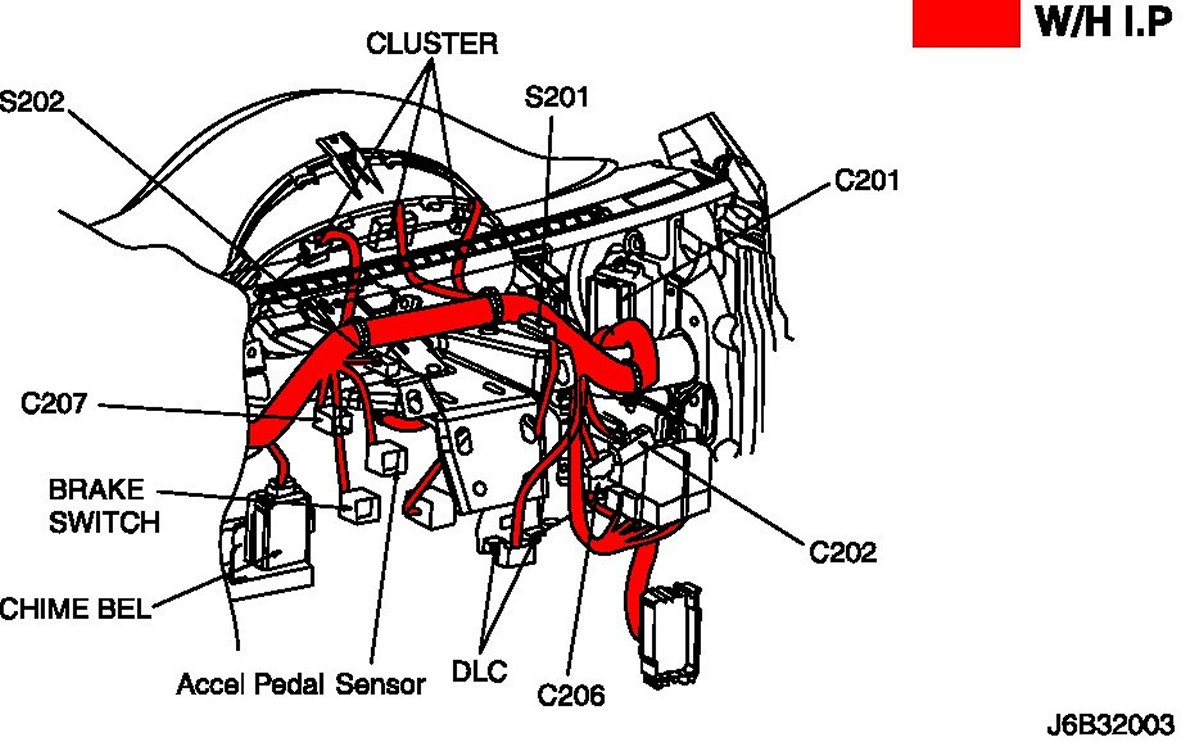

W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS
S301 (Hatchback):
SPLICE PACK
