For Notchback Model

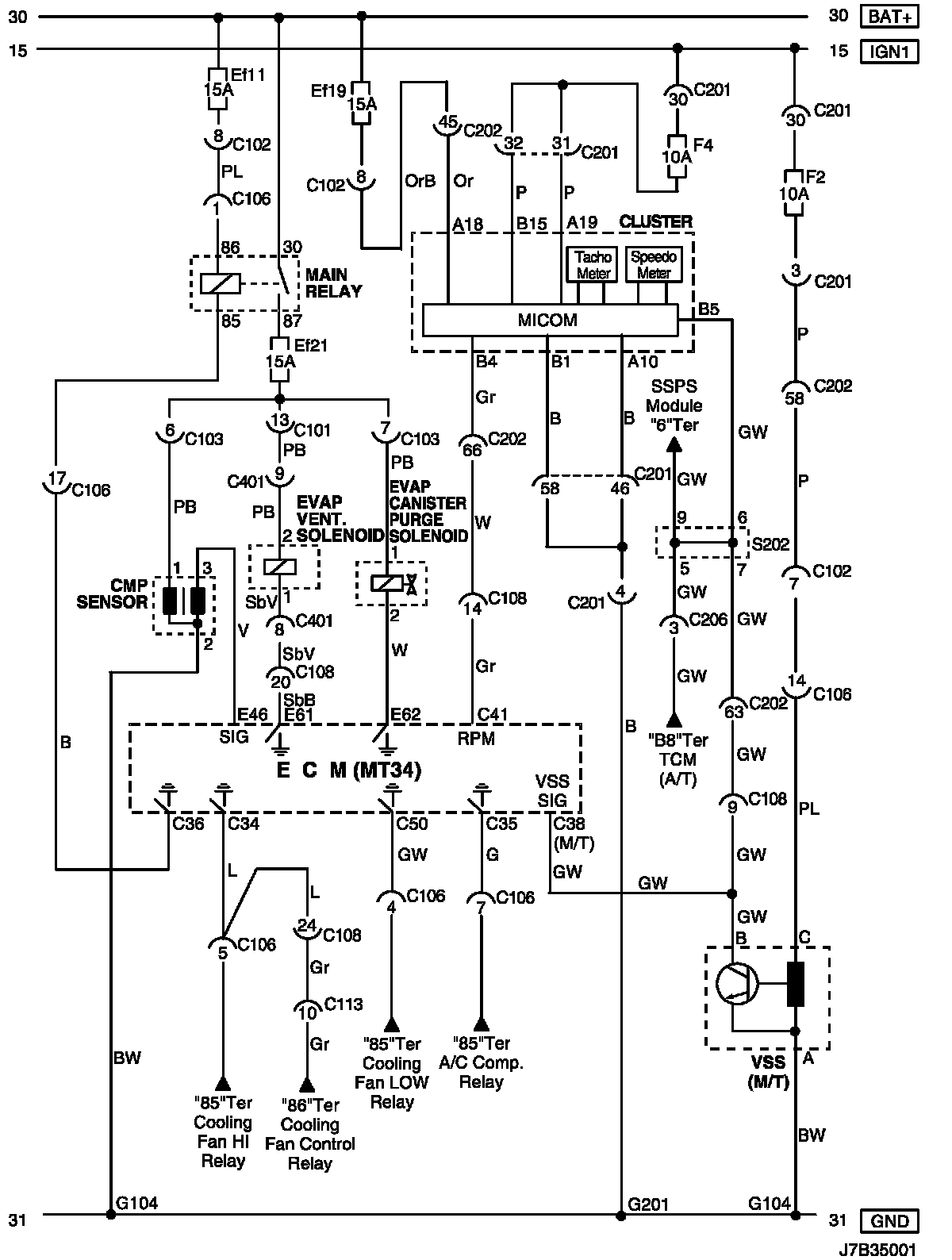

EVAP Canister Purge Solenoid, EVAP Vent. Solenoid, CMP Sensor, Cluster and VSS Circuit Wiring Diagram (For NOTCHBACK Model):
WIRING DIAGRAM
C101 - G201:
CONNECTOR INFORMATION

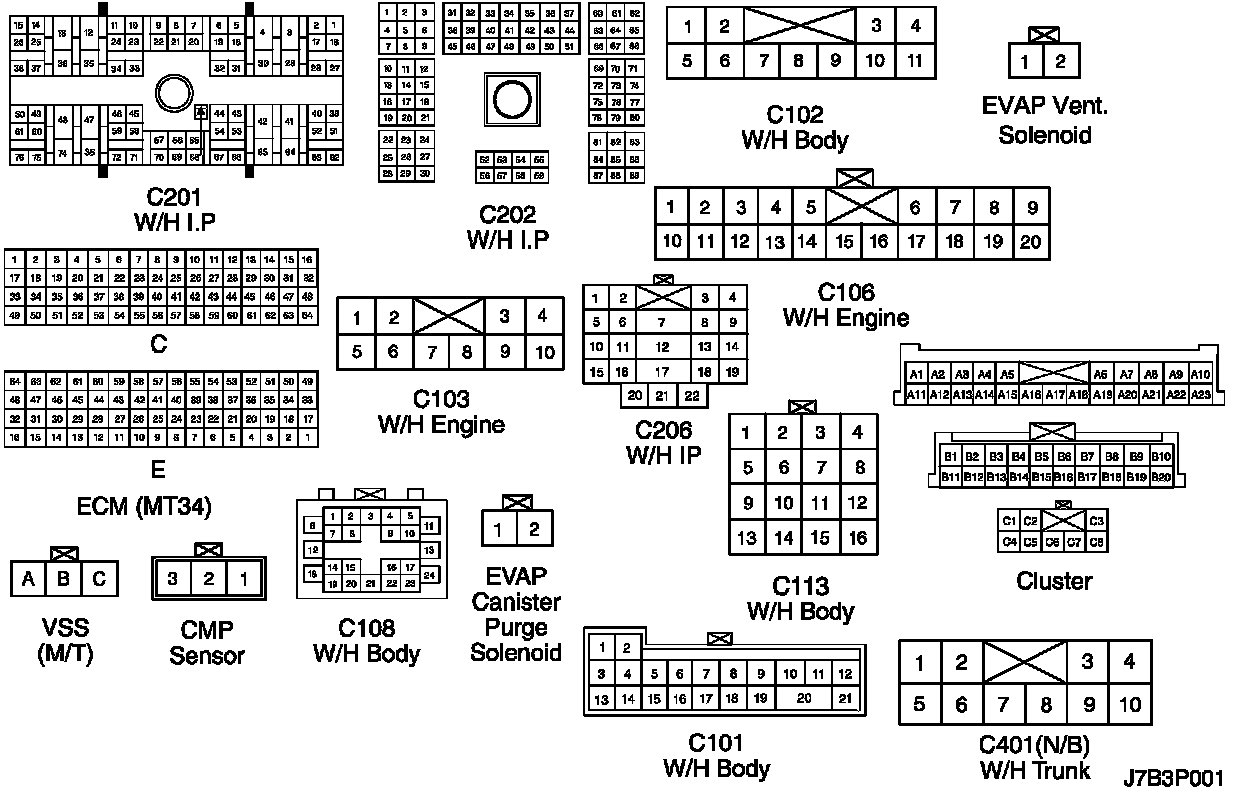

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

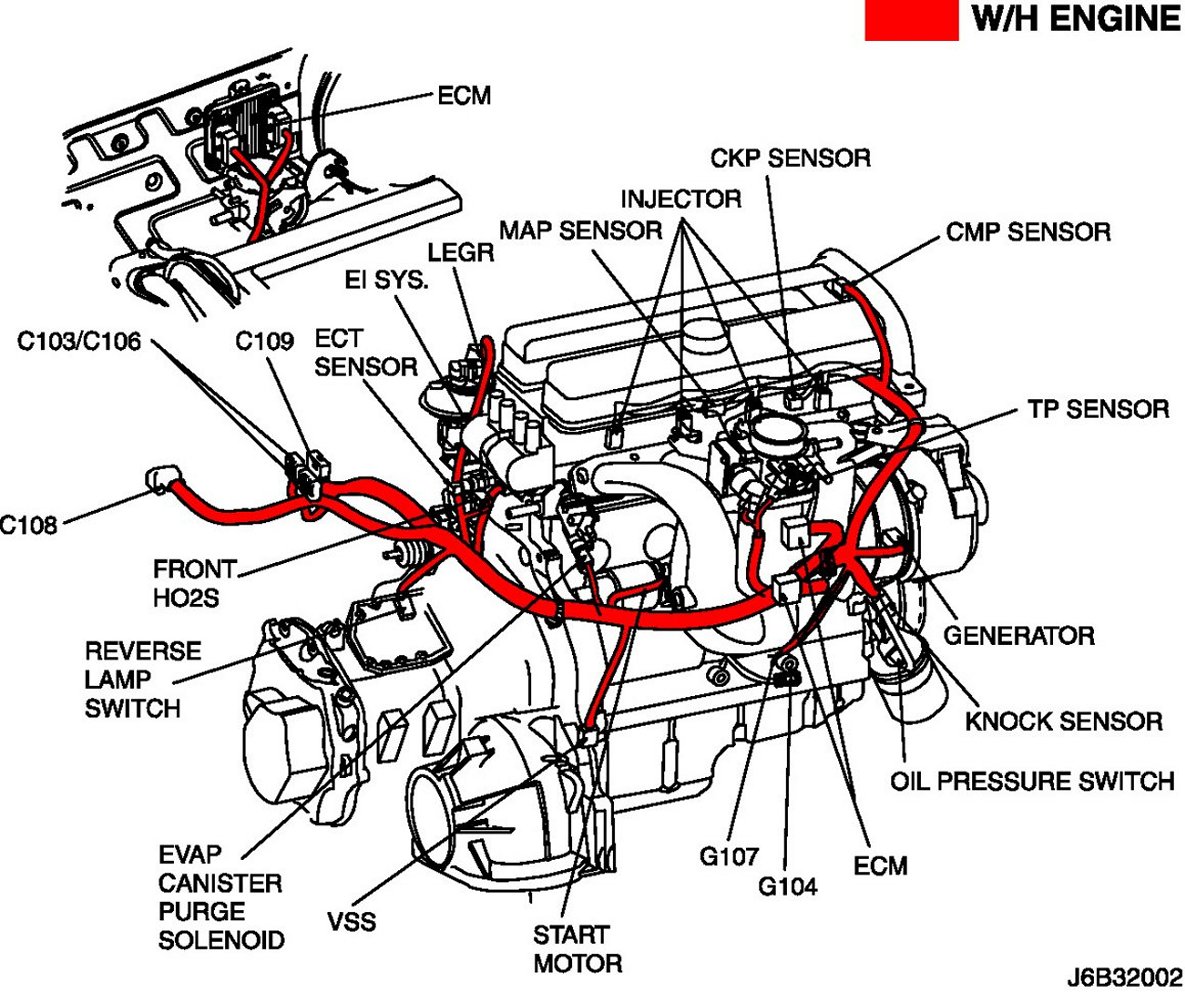

W/H Engine:

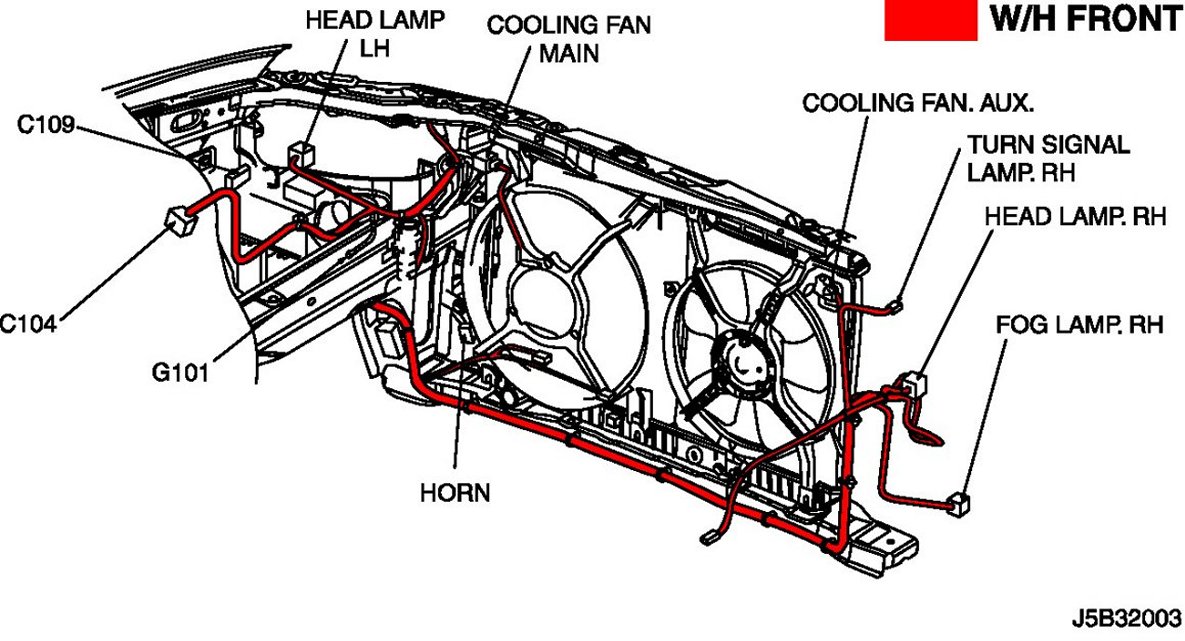

W/H Front:
POSITION OF CONNECTORS AND GROUNDS
S202:
SPLICE PACK
