For Hatchback Model
Stop Lamp, Center High Mount Stop Lamp (CHMSL) and Reverse Lamp Circuit Wiring Diagram (For HATCHBACK Model):

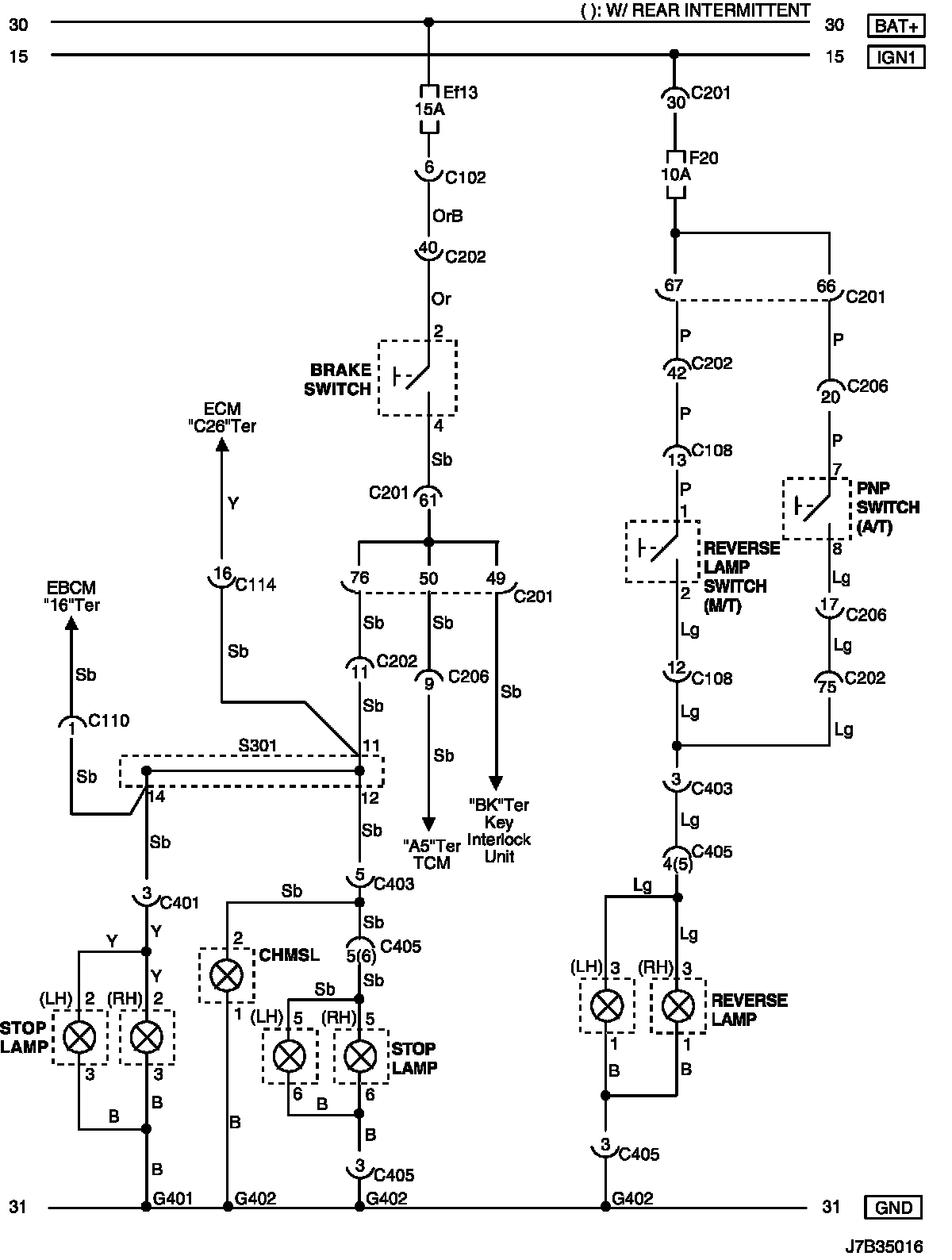

WIRING DIAGRAM
C102 - G402:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:

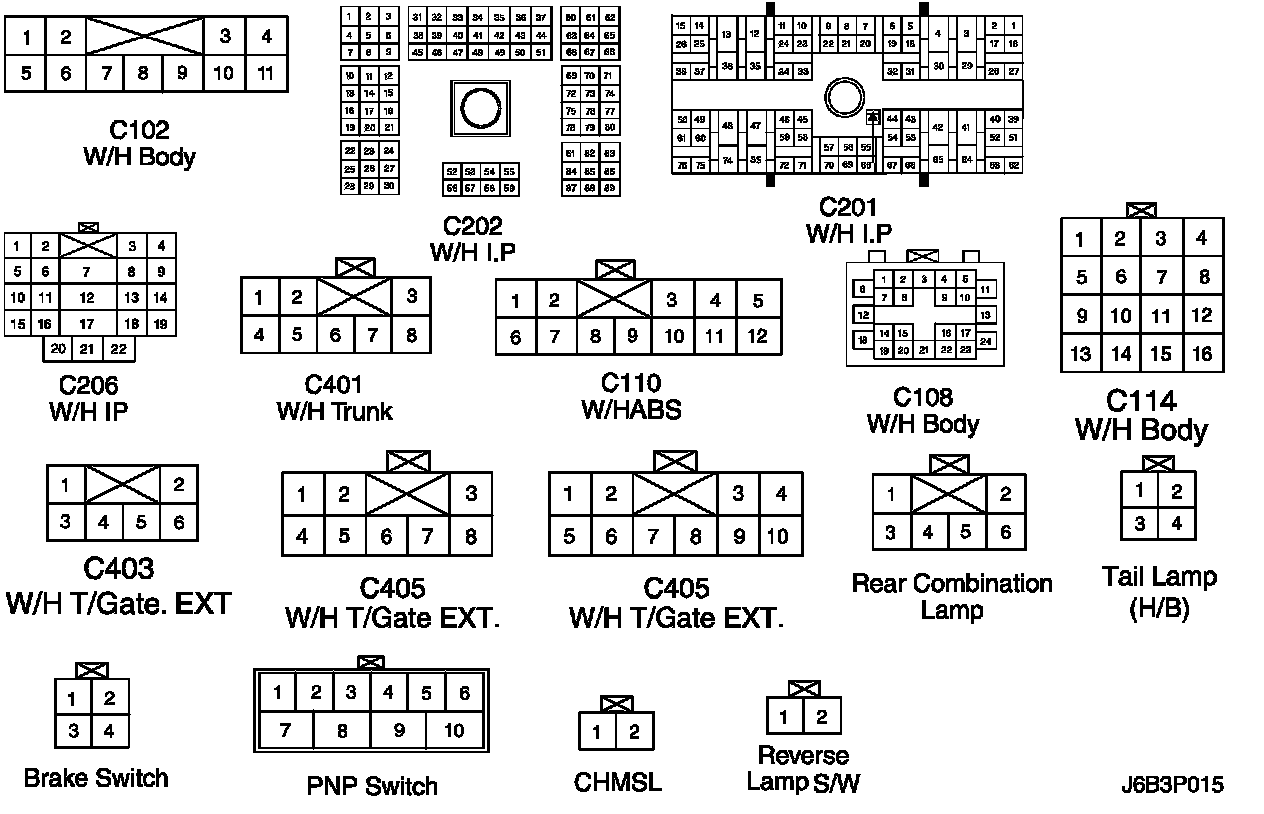

CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

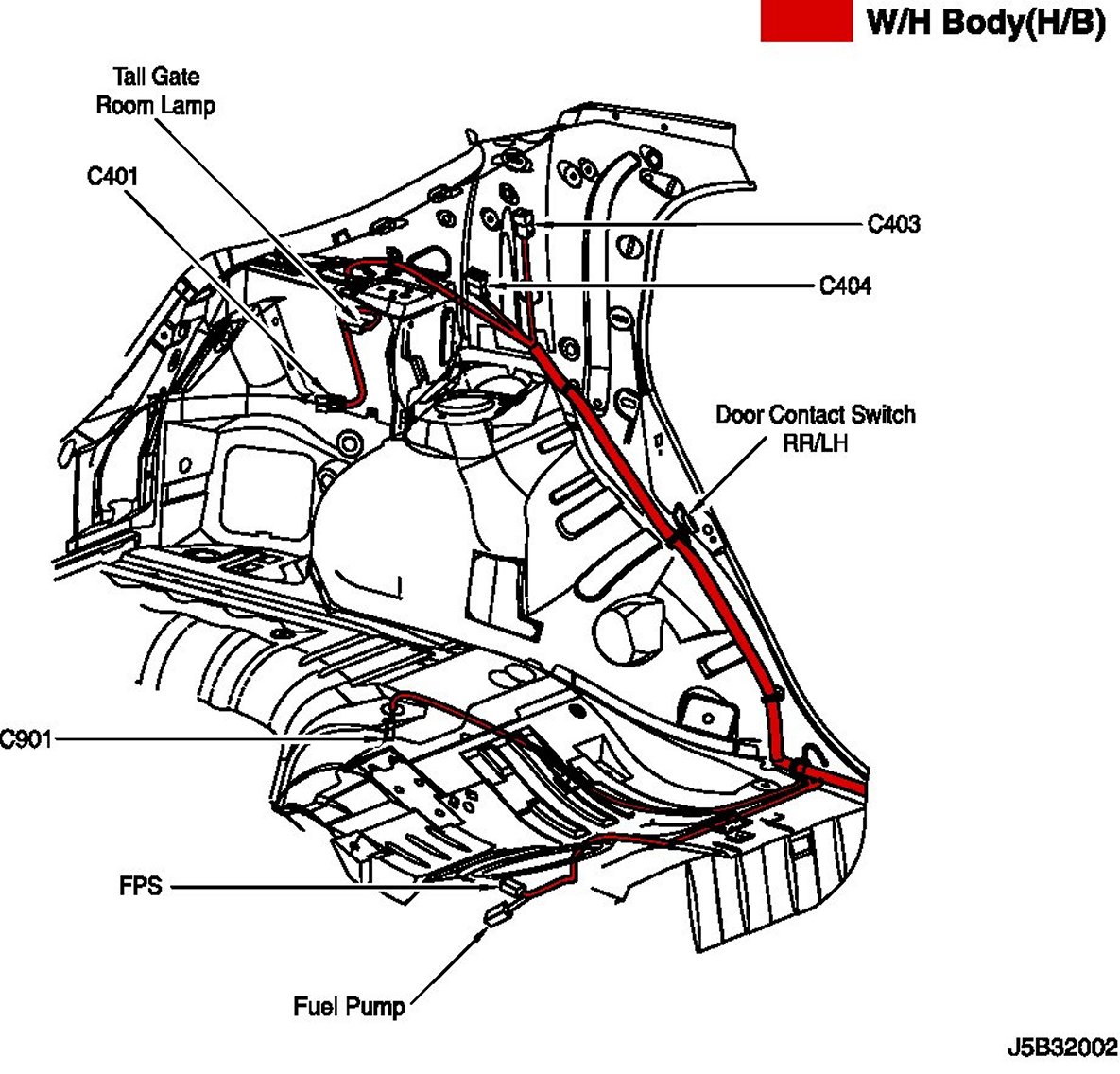

W/H Body:

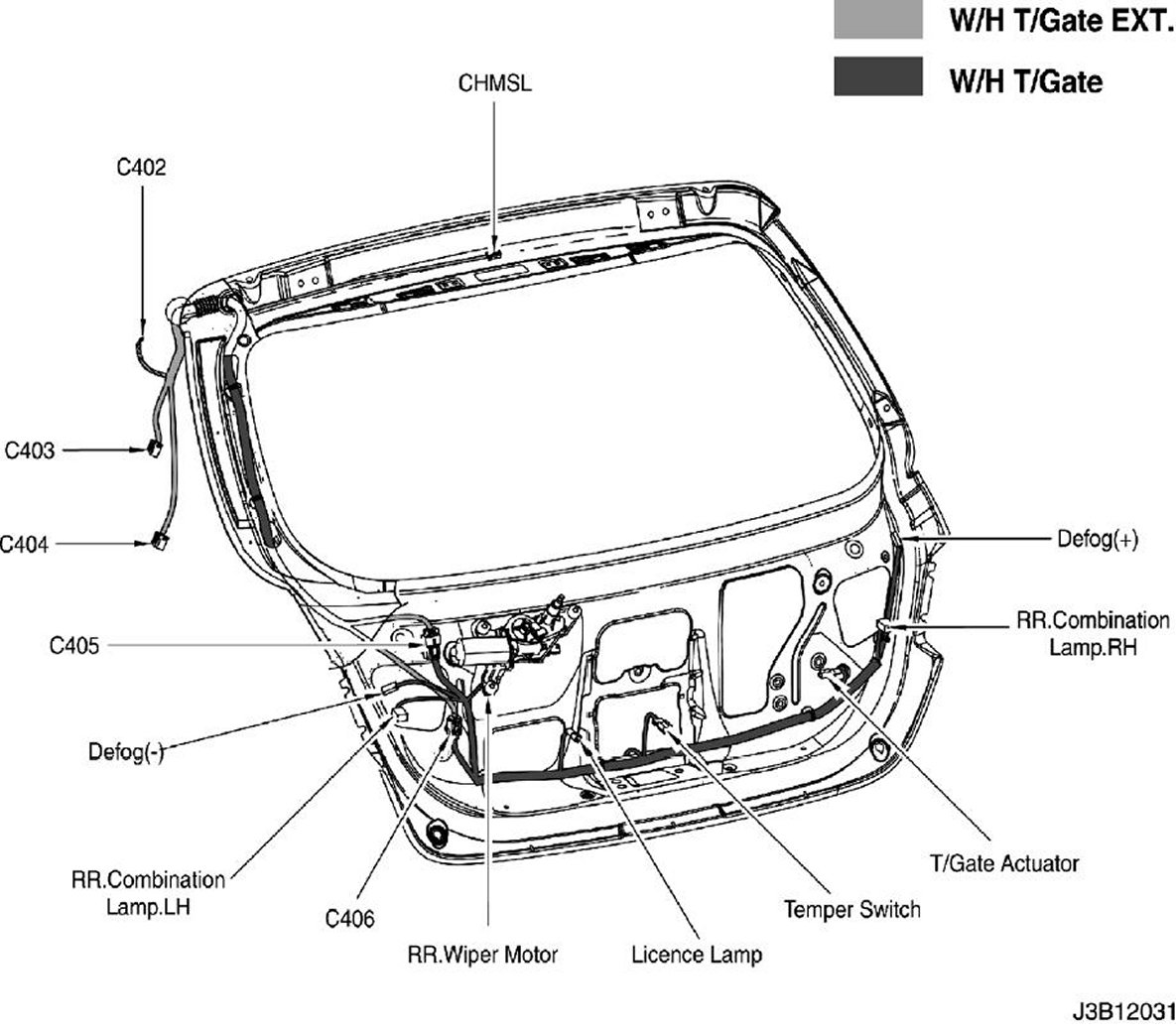

W/H Tail Gate:
POSITION OF CONNECTORS AND GROUNDS
S301 (Hatchback):
SPLICE PACK
